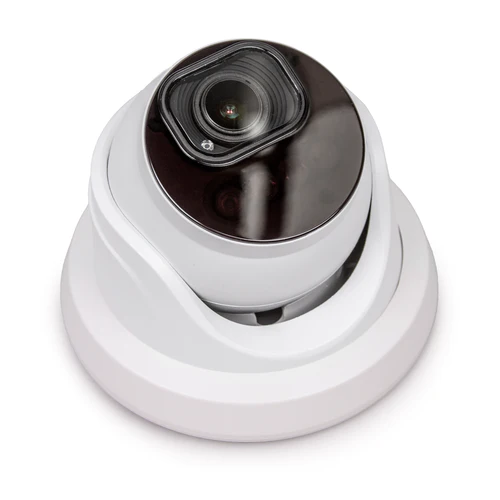

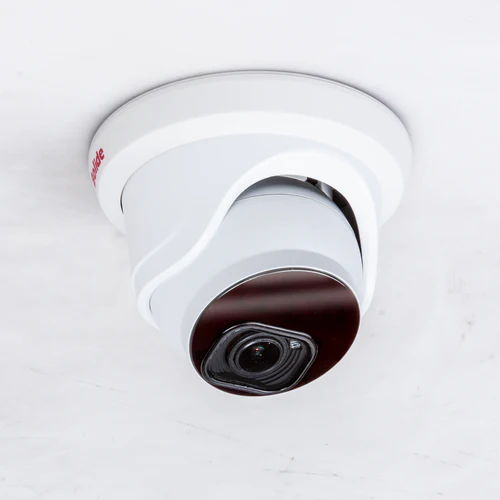

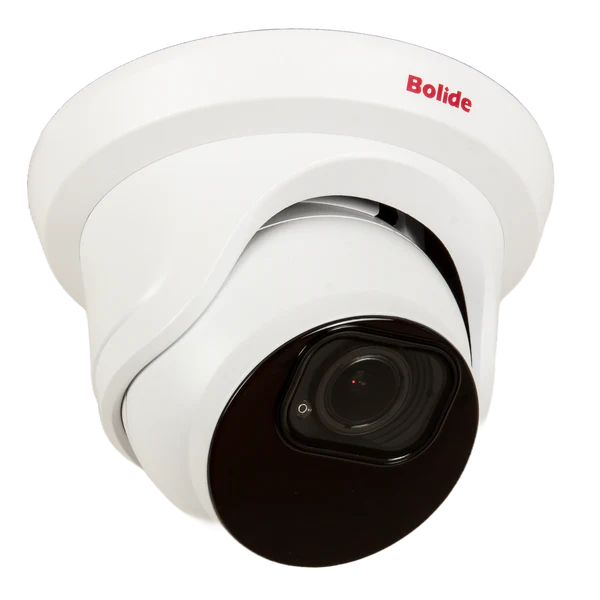

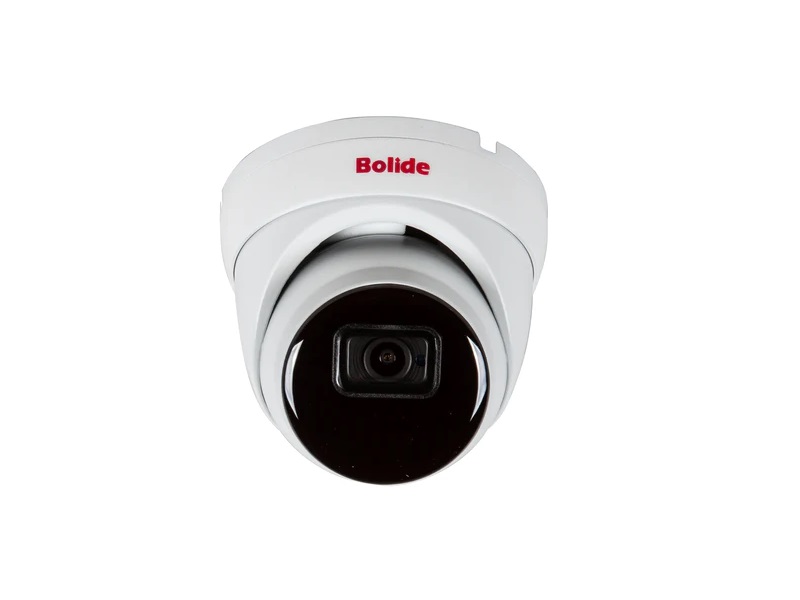

BOLIDE - BN8029AI/NDAA - 5MP Varifocal IR Eyeball Camera, 2.7-13.5mm Lens

Product Overview

The Bolide BN8029AI/NDAA is a high-performance, NDAA-compliant eyeball camera designed for precise outdoor surveillance. It features a 2.7-13.5mm motorized lens, allowing for remote focal adjustments, and a 5MP sensor that delivers sharp video at 30 fps. With a powerful 135ft IR range and IP67 weatherproofing, it ensures reliable 24/7 monitoring in harsh environments.

Key Configuration

• • Image sensor: 1/3" progressive scan CMOS; max resolution: 2592×1944 (5MP)
• • Lens: 2.7-13.5mm motorized varifocal; day/night IR cut filter with auto switch
• • IR distance: up to 135 ft
• • Triple streams: Main, Sub, Mobile; 30 fps (60Hz) / 25 fps (50Hz) at all resolutions
• • Power: 12VDC ±10% or PoE (IEEE802.3af); power consumption: 7.5W / 9.5W (IR on)

Key Features

This 5MP eyeball camera excels in ultra-low light with a 0.002 Lux color rating and a powerful 135ft IR range. It features a sophisticated Deep Learning AI suite that goes beyond basic motion, offering Face Recognition, Vehicle Detection, and People Counting. Advanced video analytics include Perimeter Intrusion and Line Crossing, while Digital WDR and 3D DNR maintain image balance in high-contrast scenes.

Technical Context

The unit is built on an ONVIF (S/G/T) architecture, ensuring broad compatibility with third-party VMS platforms. It supports P2P connectivity for easy remote access and features a built-in SD card slot for edge recording redundancy. Security is hardened via IP Address Filtering, Privacy Masking, and password protection, while the H.265 compression keeps bitrates between 8Kbps and 8Mbps without sacrificing 5MP clarity.

Installation Notes

Designed for extreme durability, the IP67-rated housing thrives in temperatures from -40°F to 140°F. It measures 9.43" × 3.4" and offers flexible power options via PoE or a standard 12VDC supply.
