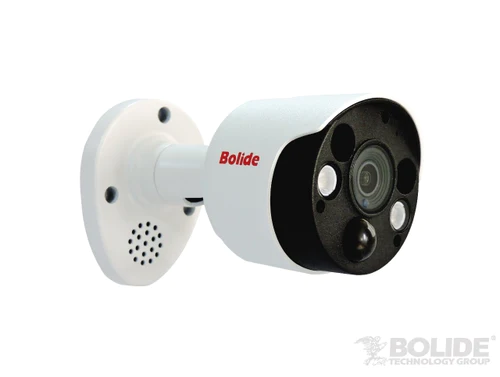

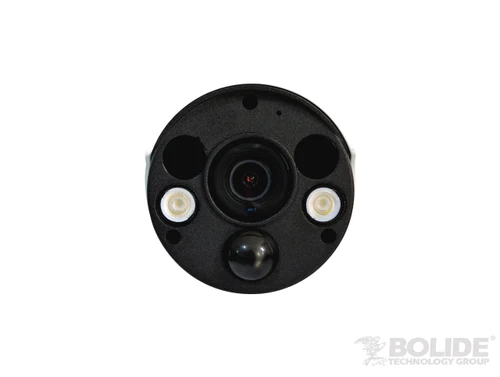

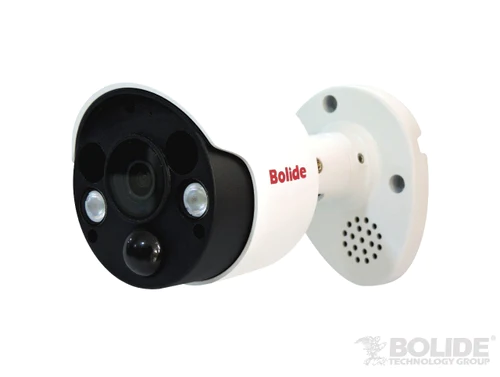

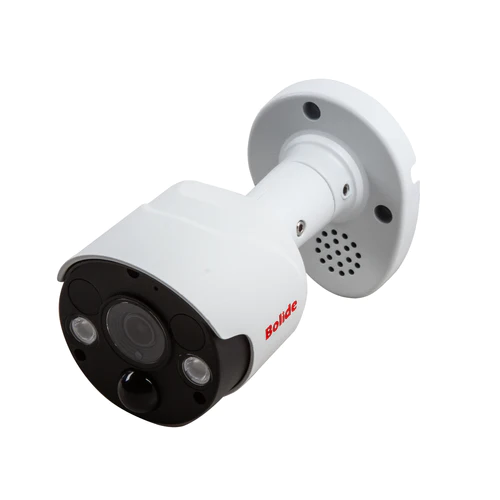

Bolide - BN8035F/NDAA - 5MP H.265 Two-Way Voice Camera with Whitelight
Part number:
BN8035F/NDAA
Price:
H.265 5MP Floodlight Camera, 2 Built-in Floodlights with Distance Up to 30 Feet, Built-in PIR with Up to 60 Feet, Two-Way Audio with Built-in Mic and Speaker, IP67, SD Card Slot, 12VDC, NDAA Compliant
Features:
- 5MP Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 2.8mm Wide Angle Fixed Lens
- 2pc Floodlight Distance Up to 33 Ft
- IP66 Rated Weatherproof Housing
- Two-Way Audio
- Built-in PIR
| Specifications | |
| Image Sensor | 1 / 2.7” Progressive Scan CMOS |
| Effective Pixel | 5MP 25920(H) x 1944(V) |
| Min. Illumination | 0.002lux@F1.2(AGC ON), 0Lux with IR |
| Resolution | Main Stream |
| 5MP (2592x1944),4MP(2592x1520), | |
| 1080P(1920x1080),960P(1280x960P), | |
| 720P(1280x720P) | |
| Substream | |
| VGA(640x480), | |
| QVGA(320x240) | |
| Aspect Ratio | 4:03 |
| White Balance | AUTO/INDOOR/MANUAL |
| AES Speed | 1/5s – 1/20000s/AUTO |
| AGC | Off/Low/Mid/High Optional |
| Noise Reduction | 3D |
| BLC | Yes |
| WDR | Digital WDR |
| Video Output | RJ-45 |
| Audio | Two-Way Audio |
| Speaker | Yes |
| Lens/ Lens Mount | 2.8mm/F1.85 fixed lens |
| Viewing Angle | D: 116° H: 92° V: 69° |
| Power Source | DC12V±10% |
| Power Consumption | 4.2 W |
| Current Consumption | 350mA |
| Operating Temperature | -40°F ~ 104°F |
| Operating Humidity | Less than 95% RH (no condensation) |
| Dimension | 5.44" × 2.8" |
| Environment Rating | IP66 |
| Cold start Temp | -4°F |
| Camera Housing Material | Metal |
| RoHS Compliance | Yes |
| Smart IR | Yes |
| IR Night Vision Range | 66 Feet |
| Built-in IR LED/ICR | Yes, 2 Array IR |
| IR LED Type | 850nm |
| IR Angle | 100° |
| PIR Angle | Up to 115° |
| PIR Distance | Up to 60 Feet |
| Flood Light | 2 PCS Up to 33 Feet |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
