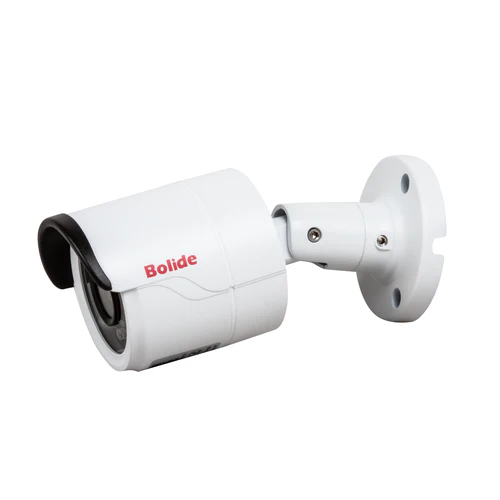

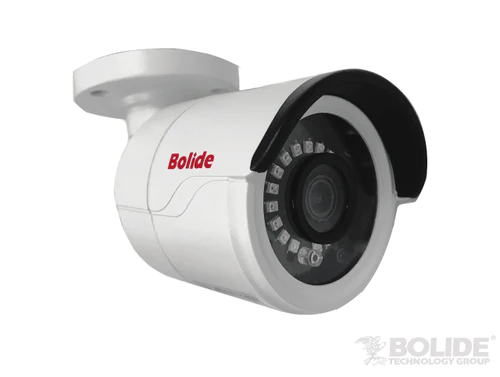

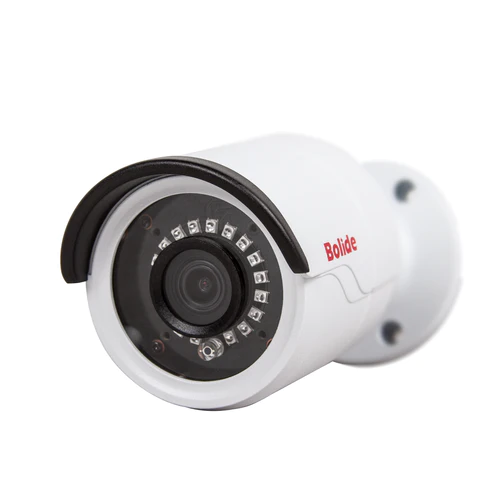

Bolide - BN8035/NDAA - 5MP Fixed Lens IR Bullet Camera
Part number:
BN8035/NDAA
Price:
H.265 5MP 3.6mm Fixed Lens IP66 IR Bullet Camera, POE, 12VDC, IR Up to 90ft, NDAA Compliant
Features:
- 5MP Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 3.6mm Wide Angle Fixed Lens
- IR Up to 90 Feet
- IP66 Rated Weatherproof Housing
- ONVIF Compliant
- P2P Support
| Mechanical Specifications | |
| Image Sensor | 1/3"Progressive Scan CMOS |
| Min. Illumination | 0.002Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Speed | 1/5 s- 1/20,000 s |
| Lens Type | 3.6 mm |
| Lens Mount | M12 |
| Day and Night | IR Cut Filter with Auto Switch |
| Dynamic Range | Digital WDR |
| Digital Noise Reduction | 3D DNR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Image Resolution | 5MP (2592 x 1520) |
| Video Bit Rate | 256K-8M |
| Image | |
| Frame Rate | Main Stream |
| 5MP (2560 X 1960) ( 1 ~ 15FPS ) | |
| 4MP (2592 X 1520) ( 1 ~ 20FPS ) | |
| 3MP (2048 X 1520) ( 1 ~ 30FPS ) | |
| 1080P (1920 x 1080) ( 1 ~ 30FPS ) | |
| 720P (1920 x 720) ( 1 ~ 30FPS ) | |
| 7960H(1280 x 960) ( 1 ~ 30FPS ) | |
| Substream | |
| VGA (640 x 480) ( 1 ~ 15FPS ) | |
| QVGA (320 x 240) ( 1 ~ 15FPS ) | |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and adjustable browser |
| Day and Night Switch | Day / Night / Auto / Schedule |
| Interface | |
| System Compatibility | ONVIF Ver. 2.6 |
| Interface | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance | Up to 90 ft |
| POE | Built-In POE |
| Security | Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering |
| Electrical | |
| Power Supply | 12 VDC / POE |
| Power Consumption | ≤ 7W |
| Operating Temp. | -40 °F- 140 °F Humidity 95% or less (non-condensing) |
| Physical | |
| Dimensions | 5.9” x 2.75” |
| Net Weight | .72 lb |
| Weather-Rating | IP67 Rated |
