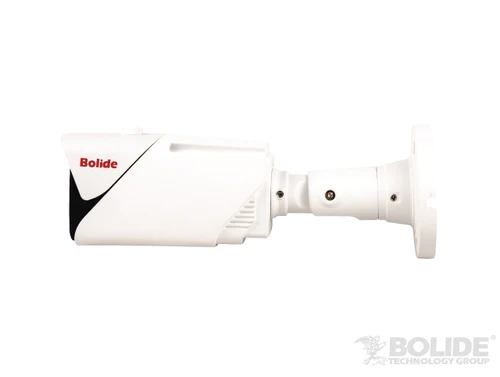

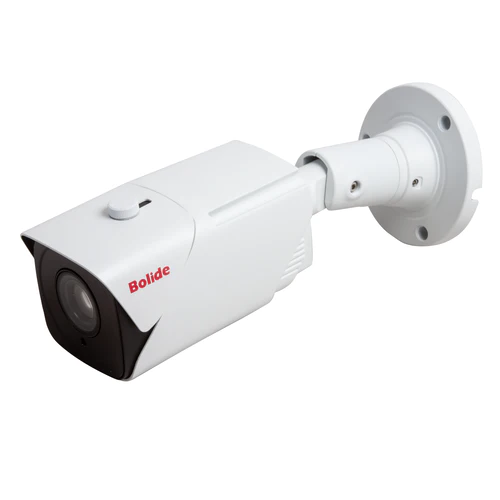

BOLIDE - BN8037AI/NDAA - H.265 5MP License Plate Camera 5.0-50mm Motorized Lens Varifocal IP67 IR Bullet Camera, POE, 12VDC, SD Card Slot, Audio In/Out, Alarm In/Out, IR Up to 240ft, iPac AI Enabled with License Plate Recognition Facial Recognition S
Part number:
BN8037AI/NDAA
Price:
H.265 5MP License Plate Camera 5.0-50mm Motorized Lens Varifocal IP67 IR Bullet Camera, POE, 12VDC, SD Card Slot, Audio In/Out, Alarm In/Out, IR Up to 240ft, iPac AI Enabled with License Plate Recognition Facial Recognition System, NDAA Compliant
Features:
- 5MP Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 5.0 – 50mm Motorized Varifocal Lens
- IR Up to 240 Feet
- IP67 Rated Weatherproof Housing
- ONVIF Compliant
- P2P Support
| SPECIFICATIONS | |
| Image Sensor | 1 / 2.7” Progressive CMOS |
| Resolution | 5MP 2592 ( H ) x 1944 ( W ) |
| Min. Illumination | Color 0.002lux @ F1.2 ( AGC ON ) |
| Shutter | B/W 0 lux @ IR ON 1/5 ~ 1/20000s |
| Slow Shutter | Support |
| Lens | 5.0~50mm Motorized |
| F No. | F 20 ± 5% |
| Day & Night | IR Cut Filter with Auto Switch |
| WDR | WDR |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | 8Kbps ~ 8Mbps |
| Triple Stream | Yes |
| Frame rate | Main Stream |
| 5MP ( 2592x1944 ), 4MP ( 2592x1520 ) 3MP ( 2048x1520 ), 1080P ( 1920x1080 ), 960P ( 1280x960 ), 720P ( 1280x720 ) | |
| Substream | |
| 720P ( 1280x720 ), VGA (640x480 ), QVGA ( 320x240 ) | |
| Mobile Stream | |
| VGA ( 640x480 ), QVGA ( 320x240 ) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast, Hue, Sharpness Adjustable |
| BLC | Support |
| ROI | Support |
| Privacy Mask | Support |
| Video Analytics | Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Camera obstruction; Region of interest. DEEP LEARNING: Face Detection / Face Recognition / Human detection / Vehicle detection |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Compatibility | ONVIF ( S / G / T ) |
| Interface | x1 RJ45 10M/100M Ethernet Interface |
| LED | x4 pcs |
| IR Range | Up to 240 ft. |
| Alarm Trigger | Yes |
| Audio | Yes |
| Video Output | Yes |
| Reset Button | Yes |
| POE | Yes |
| Weather Rating | IP67 |
| Power Supply | DC 12V/POE |
| Consumption | ≤ 9.5W |
| Storage Temperature | -40° ~ +60°C |
| Operating Temperature | -40° ~ +44°C |
