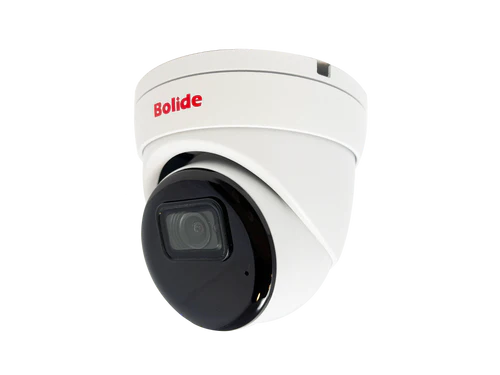

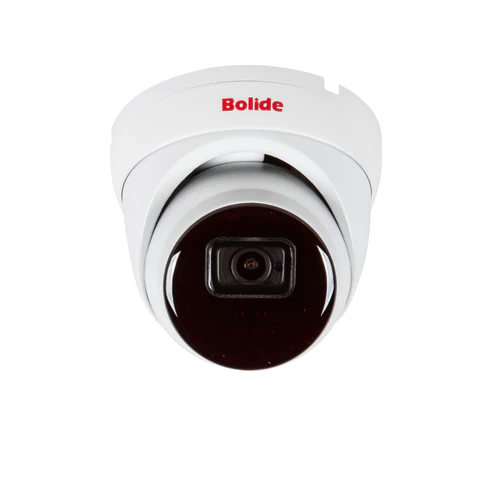

BOLIDE - BN9019/NDAA - H.265 8MP ( 4K ) 2.8mm Fixed Lens IP67 IR Eyeball Camera, POE, 12VDC, Micro SD Slot, IR Up to 90ft, Built-in Mic, NDAA Compliant
Part number:
BN9019/NDAA
Price:
H.265 8MP ( 4K ) 2.8mm Fixed Lens IP67 IR Eyeball Camera, POE, 12VDC, Micro SD Slot, IR Up to 90ft, Built-in Mic, NDAA Compliant
Features:
- 4K / 8MP Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 2.8mm Wide Angle Fixed Lens
- IR Up to 90 Feet
- Built-in Microphone

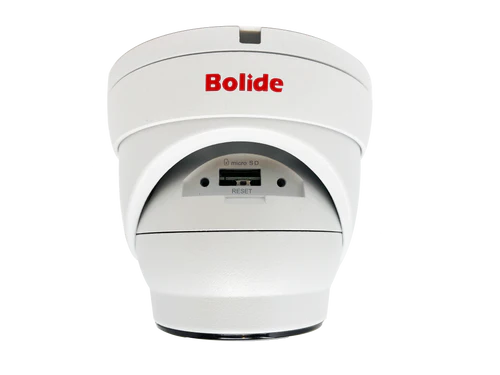

- Micro SD Slot – EDGE Recording
- ONVIF Compliant
- P2P Support
| Mechanical Specifications | |
| Image Sensor | Progressive CMOS |
| Min. Illumination | Color 0.002lux @ F1.2 (AGC ON); B/W 0 lux @ IR ON |
| Shutter | 1/5 ~ 1/20000s |
| Lens | 2.8mm Fixed Lens |
| F No. | F 1.6 ± 10% |
| WDR | Digital |
| Compression | |
| Video Compression | H.265 / H.264 |
| Image Resolution | 8MP 3840 (H) x 2160 (W) |
| Video Bit Rate | 128Kbps ~ 8Mbps |
| Image | |
| Frame Rate | Main Stream |
| 8MP (3840 x 2160) | |
| 4MP (2592 x 1520) | |
| 3MP (2304 x 1296) | |
| 1080P (1920 x 1080) | |
| Substream | |
| 1080P (1920x1080) | |
| 720P (1280x720) | |
| VGA (640x480) | |
| Mobilestream | |
| VGA (640x480) | |
| QVGA (320x240) | |
| Image Settings | Flip, Rotate, Saturation, Brightness, Contrast, Hue, Sharpness Adjustable, Corridor Mode |
| Day and Night | IR Cut Filter with Auto Switch |
| Interface | |
| System Compatibility | ONVIF (Profile S, G) |
| Interface | RJ45 10M/100M Ethernet Interface |
| IR Range | Up to 90 Feet |
| POE | Built-In POE |
| Electrical | |
| Power Supply | DC 12V/POE |
| Power Consumption | ≤ 7W |
| Operating Temp. | -40° ~ +44°C |
| Physical | |
| Dimensions | 4” x 4” |
| Net Weight | 0.72 lbs. |
| Weather-Rating | IP67 |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
