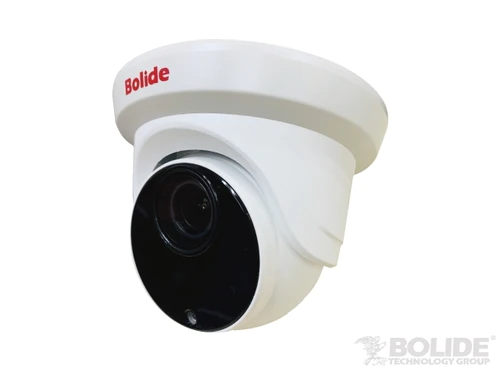

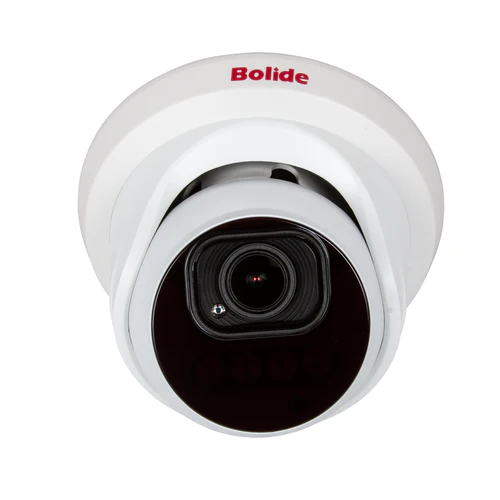

Bolide - BN9029AI/NDAA - 4K Motorized Varifocal Eyeball Camera with AI
Part number:
BN9029AI/NDAA
Price:
H.265 8MP ( 4K ) 2.7-13.5mm Motorized Lens Varifocal IP67 IR Eyeball Camera, POE, 12VDC, SD Card Slot, Audio In/Out, Alarm In/Out, IR Up to 135ft, iPac AI Enabled with Facial Recognition System, NDAA Compliant
Features:
- 8MP ( 4K ) Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 2.7 – 13.5mm Motorized Varifocal Lens
- IR Up to 135 Feet
- IP67 Rated Weatherproof Housing
- ONVIF Compliant
- P2P Support
| Specifications | |
| Image Sensor | 1/2.5" Progressive CMOS |
| Min. Illumination | Color 0.1lux @ F1.2(AGC ON) |
| Shutter | 1/5 ~ 1/20000s |
| Slow shutter | Support |
| Lens | 2.7 ~ 13.5 mm (Motorized) |
| Lens Mount | M12 / M14 |
| F No. | F 1.6 ±5% |
| Day & Night | IR cut filter with switch (Auto / Schedule / Triggered by Alarm In) |
| WDR | 120dB |
| Digital Noise Reduction | 2D / 3D DNR |
| Video Compression | H.265/H.264/MJPEG |
| Resolution | 8MP (3840 x 2160) |
| Video Bit Rate | 8Kbps ~ 16Mbps |
| Triple Stream | Main-stream, Sub-stream, Mobile-stream |
| Frame Rate | Main stream: (1-15fps optional) |
| 4K(3840x2160), 5MP(2592x1944), 4MP(2592x1520), 3MP(2048x1536), 2MP(2304x1296), 1080P(1920x1080), 960P(1280x960P), 720P(1280x720P) | |
| Substream: | |
| 720P(1280x720P), D1(704x480), VGA(640x480), QVGA(320x240) | |
| Mobile stream: | |
| VGA(640x480), QVGA(320x240) | |
| Image Settings: | Flip, Rotation, Corridor mode, Saturation, Brightness, Contrast, Hue, Sharpness, Mirror mode, Shaded |
| BLC | Support |
| ROI | Support |
| Privacy Mask | Support |
| Video Analytics | Perimeter Intrusion Detection, Line Crossing Detection, Sationary Object Detection, Pedestrian Detection, Cross and People Counting, Camera obstruction, Region of interest. |
| DEEP LEARNING: Face Detection, Face Recognition, Human detection, Vehicle detection. | |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering |
| System Compatibility | ONVIF 2.4, RTSP (Profile S, Profile G) |
| Certificates / Program | CE, FCC, RoHS / GSA |
| Interface | RJ45 10M / 100M Ethernet interface x1 |
| Led & IR Range | 40pcs(SMD) Up to 35m (dome) |
| SD storage | Yes, Micro SD or SD memory slot Up to 128 Gb |
| Alarm Trigger | Yes |
| Audio | Yes |
| Video Output: | BNC output - 1Vpp |
| Reset Button | Yes |
| Water Proof | IP67 |
| Power Supply | 12 VDC ± 10%, POE (802.3af) |
| Consumption | 5W (Max. 7W with active IR cut filter) |
| Temperature | Storage -30°C ~ 60°C |
| Operation -30°C ~ 55°C | |
| Humidity | ~ 95% (without condensation) |
