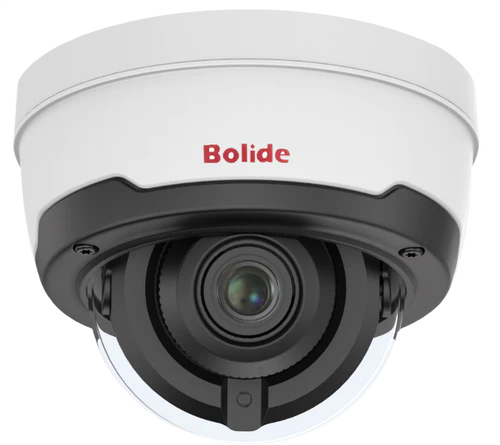

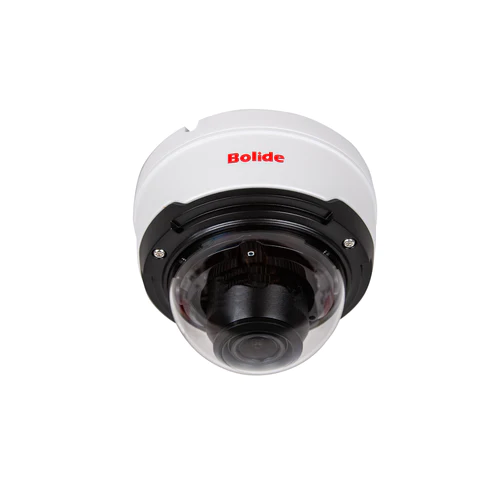

H.265 8MP ( 4K ) 2.7-13.5mm Motorized Lens Varifocal IP67 IK10 IR Vandal-proof Dome Camera, POE, 12VDC, SD Card Slot, Audio In/Out, Alarm In/Out, IR Up to 90ft, iPac AI Enabled with Facial Recognition System, NDAA Compliant
Features:
- 8MP ( 4K ) Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 2.7 – 13.5mm Motorized Varifocal Lens
- IR Up to 90 Feet
- IP67 Rated Weatherproof Housing
- ONVIF Compliant
- P2P Support
| Mechanical specifications | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Minimum Illumination | 0.002Lux @(F1.2,AGC ON) |
| 0 Lux with IR | |
| Shutter Speed | 1/5 s – 1/20,000 s |
| Lens Type | 2.7 – 13.5mm |
| Lens Mount | M12 / M14 |
| Day and Night | IR Cut Filter with Auto Switch |
| Dynamic Range | Digital WDR |
| Digital Noise Reduction | 3D DNR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Image Resolution | 8MP (3840 X 2160) |
| Video Bit Rate | 8Kbps ~ 16Mbps |
| Image | |
| Max Resolution / FPS | Main Stream |
| 8MP ( 3840 x 2160 ), 5MP (2560 x 1944), 4MP (2592 x 1520), | |
| 3MP (2304 x 1296), 1080P (1920 x 1080), | |
| 720P (1280 x 720), 960H (1280 x 960) | |
| Substream | |
| D1 (704 x 480),VGA (640 x 480),QVGA (320 x 240) | |
| Mobile Stream | |
| VGA (640 x 480), QVGA (320 x 240) | |
| 50Hz: 25FPS @ 8MP/5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA | |
| 60Hz: 30FPS @ 8MP/5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA | |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and adjustable browser |
| Day and Night Switch | Auto / Schedule / Triggered by Alarm In |
| Interface | |
| System Compatibility | ONVIF ( Profile S/G/T ) |
| Interface | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance | Up to 90 ft |
| POE | Built-In POE |
| Security | Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering |
| Video Analytics / AI | Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Camera obstruction; Region of interest. DEEP LEARNING: Face Detection / Face Recognition / Human detection / Vehicle detection |
| Electrical | |
| Power Supply | 12 VDC ± 10%, POE (IEEE802.3af) |
| Power Consumption | 4W / 5W ( IR OFF ) |
| 6W / 8W ( IR ON ) | |
| Operating Temp. | -40 °F - 140 °F Humidity 95% or less (non-condensing) |
| Physical | |
| Dimensions | 5.78" x 4.6" |
| Net Weight | 2.35 lb |
| Weather-Rating | IP67 Rated |
