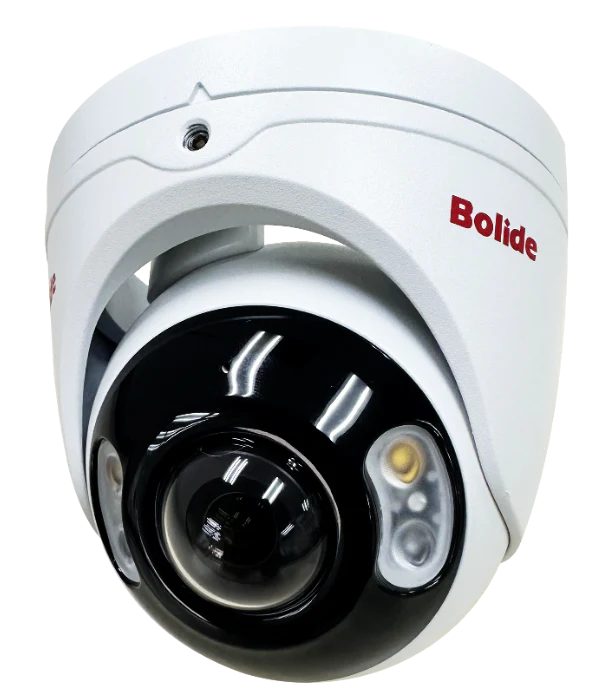

BOLIDE - BN9109-PN - H.265 8MP ( 4K ) 180 Degree Panoramic Turret Camera, 2.0mm Panoramic Lens, IP67 Full Color Active Deterrent Camera, Color At Night Warmlight Up to 82 Feet, IR Up to 98 Feet, Two-Way Audio ( Built-in Speaker and Mic ), MicroSD Slo
BOLIDE - BN9109-PN - H.265 8MP ( 4K ) 180 Degree Panoramic Turret Camera, 2.0mm Panoramic Lens, IP67 Full Color Active Deterrent Camera, Color At Night Warmlight Up to 82 Feet, IR Up to 98 Feet, Two-Way Audio ( Built-in Speaker and Mic ), MicroSD Slo
BOLIDE - BN9109-PN - H.265 8MP ( 4K ) 180 Degree Panoramic Turret Camera, 2.0mm Panoramic Lens, IP67 Full Color Active Deterrent Camera, Color At Night Warmlight Up to 82 Feet, IR Up to 98 Feet, Two-Way Audio ( Built-in Speaker and Mic ), MicroSD Slo
BOLIDE - BN9109-PN - H.265 8MP ( 4K ) 180 Degree Panoramic Turret Camera, 2.0mm Panoramic Lens, IP67 Full Color Active Deterrent Camera, Color At Night Warmlight Up to 82 Feet, IR Up to 98 Feet, Two-Way Audio ( Built-in Speaker and Mic ), MicroSD Slo BOLIDE - BN9109-PN - H.265 8MP ( 4K ) 180 Degree Panoramic Turret Camera, 2.0mm Panoramic Lens, IP67 Full Color Active Deterrent Camera, Color At Night Warmlight Up to 82 Feet, IR Up to 98 Feet, Two-Way Audio ( Built-in Speaker and Mic ), MicroSD Slo

BOLIDE - BN9109-PN - H.265 8MP ( 4K ) 180 Degree Panoramic Turret Camera, 2.0mm Panoramic Lens, IP67 Full Color Active Deterrent Camera, Color At Night Warmlight Up to 82 Feet, IR Up to 98 Feet, Two-Way Audio ( Built-in Speaker and Mic ), MicroSD Slo

Part number:
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

• 180° Panoramic Field of View
• 8MP ( 4K ) Ultra HD Resolution
• NDAA Compliant
• 2.0mm Panoramic Lens
• Full Color At Night Mode
• EDGE Recording
• IP67 Rated Weatherproof Housing
• ONVIF Compliant

  SPECIFICATIONS
Image Sensor1/2.8" Progressive CMOS
Effective Pixels8MP 3840 (H) × 2160 (V)
Min. IlluminationColor 0.007Lux @ F1.0 (AGC ON);
B/W 0 lux @ IR ON
Lens
Lens2.0mm
Max. Aperture RatioF No. 2.4
Lens TypeFixed
Field of ViewH: 180°, V: 92°, D: 180°
Lens TypeM12
Lighting
IR LED2
Warmlight2
IR DistanceUp to 82Ft
Warmlight DistanceUp to 49Ft
Complementary LightDefault Warm Light, Switchable IR
Video Processing
Backlight Comp.Off/On (5 Zone)
Wide Dynamic RangeWDR
Digital Noise Reduc.3D DNR
Motion DetectionOff/On (8 Level)
Image SettingFull Color Mode / D/N Mode / Schedule
Privacy MaskingOff/On (4 Zone, Rectangle)
Gain ControlAuto
White BalanceAuto/Manual
Elec. Shutter Speed1/5 ~ 1/20000s
Storage & Audio
EDGE RecordingMicro SD Card Up to 256GB
AlarmBuilt-in Red and Blue Flashing Lights
AudioBuilt-in Microphone, Speaker
Hardware ResetYes
Network
EthernetRJ-45 (10/100 BASE-T)
ProtocolTCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
IPIPv6
CompatibilityONVIF (S / G / T)
ResolutionMain Stream: 8MP (3840x2160) 5MP (2592x1944) 4MP (2592x1520) 3MP (2304x1296) 1080P(1920x1080) 720P(1280x720) 960H(1280x960)
Sub Stream: 720P(1280x720) VGA (640x480), QVGA (320x240)
Mobile Stream: VGA (640x480), QVGA (320x240)
Power
Power SupplyD12V/POE(IEEE802.3af)
ConsumptionMax 13.1W
Environmental
Operating Temperature-40 ~ +140°F / less than ≤ 95% RH
Storage Temperature-40 ~ +131°F
Physical
Dimensions4.58” x 3.84”
Net Weight1.29lbs
Name
Description
Size
Downloads
File
Datasheet_BN9109-PN_ENG.pdf
0.7mb
