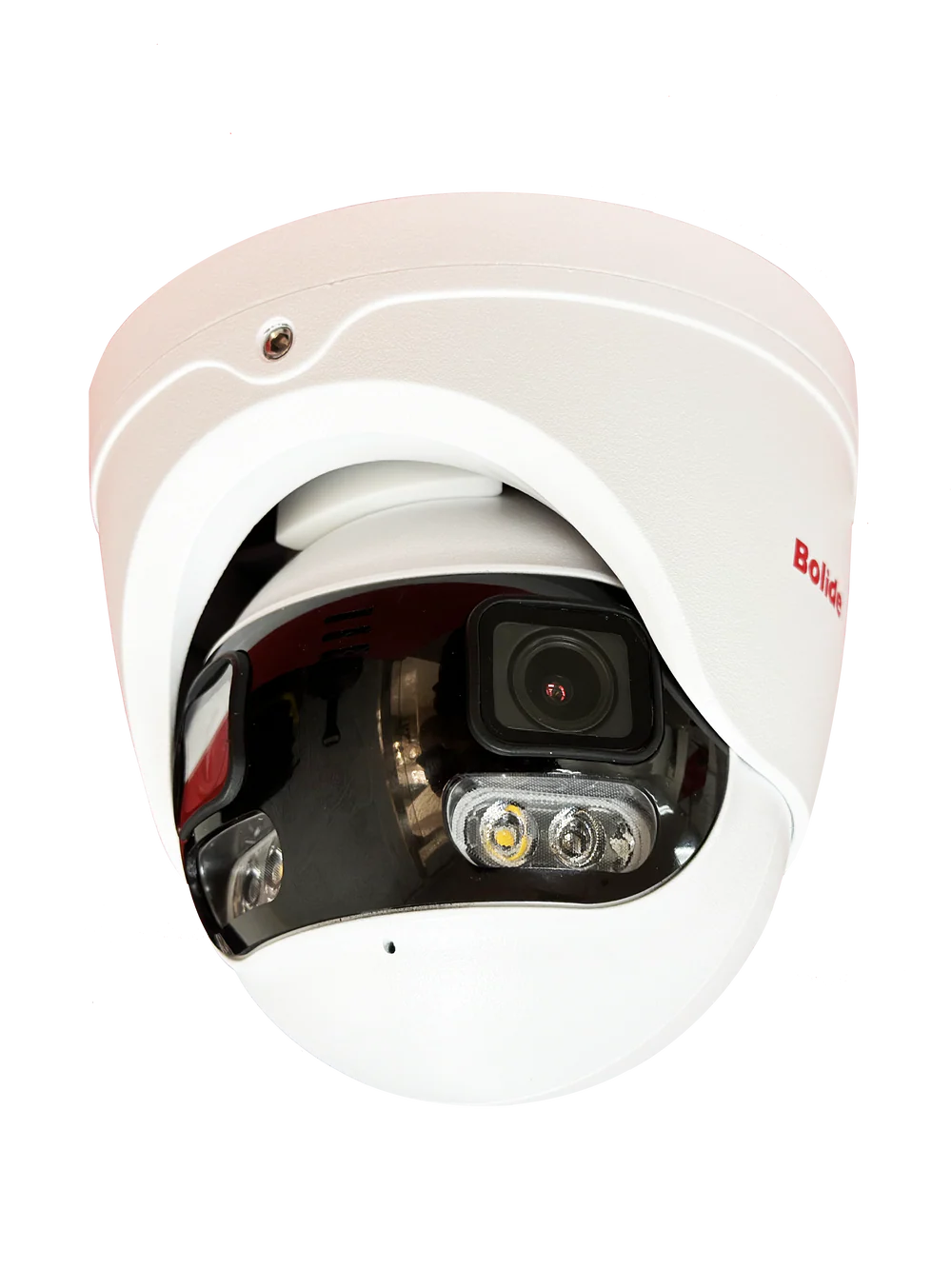

BOLIDE - BN9109-PN-DUAL - H.265 8MP ( 4K ) 180 Degree Panoramic Turret Camera, Dual 2.8mm Panoramic Lens, IP67 Full Color Active Deterrent Camera, Color At Night Warmlight Up to 49 Feet, IR Up to 98 Feet, Two-Way Audio ( Built-in Speaker and Mic ), M
Part number:
Price:
• 180° Panoramic Field of View
• 8MP ( 4K ) Ultra HD Resolution
• NDAA Compliant
• Dual Sensor For Improved Panoramic View
• Full Color At Night Mode
• EDGE Recording
• IP67 Rated Weatherproof Housing
• ONVIF Compliant
| Mechanical Specifications | |
|---|---|
| Image Sensor | 2x 1/2.8" Progressive CMOS |
| Min. Illumination | Color: 0.001Lux@F1.2 B/W: 0 Lux with IR On |
| Shutter Speed | 1/5 s- 1/100,000s~1s |
| Lens Type | 2.8mm @ F1.0 |
| Lens Mount | M12 |
| Day and Night | IR Cut Filter with Auto Switch |
| Dynamic Range | 120dB Super WDR |
| Digital Noise Reduction | 2D / 3D DNR |
| Compression | |
| Video Compression | H.265+/H.265/H.264/MJPEG |
| Image Resolution | Up to 5120 (H) × 1440 (V) |
| Video Bit Rate | 8Kbps-16384Mbps |
| Image | |
| Resolution | Main Stream: 60/50Hz @ 15FPS 5120 x 1440 4608 x 1296 4096 x 1152 3840 x 1080 3072 x 864 Sub Stream: 60/50Hz @ 15FPS 2048 x 576 1536 x 432 1024 x 288 |
| Interface | |
| System Compatibility | ONVIF Profile G, Q, S, T, API |
| Interface | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance | IR Up to 98 ft |
| POE | Built-In POE |
| Electrical | |
| Power Supply | 12 VDC ± 10%, POE (802.3af) |
| Power Consumption | 13.49W Max |
| Operating Temperature | -40 °F- 140 °F Humidity 95% or less (non-condensing) |
| Physical | |
| Dimensions | 5.31 "x 4.42" |
| Net Weight | 1.69 lbs. |
| Weather Rating | IP67 Rated, IK10 Rated |
| Intelligence Features | |
| Built-in Analytics | Face Recognition License Plate Recognition Human and Vehicle Detection Line Cross Detection Human Foot Traffic Heat Map Rare Sound Detection Stationary Object Detection |
Name
Description
Size
Downloads
File
Datasheet_BN1009PTZMNDAA_ENG_0.pdf
0.4mb
