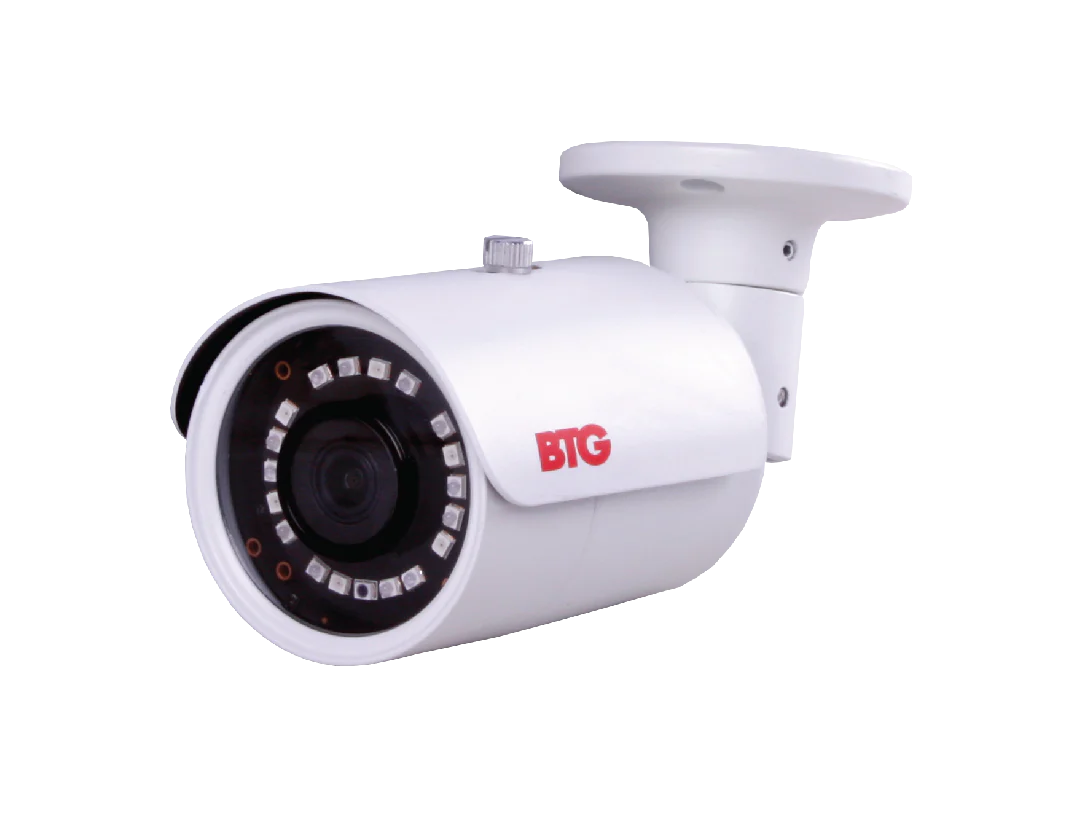

BOLIDE - BTG-N1535 - 5MP IP 3.6mm Fixed Lens Bullet Camera, IR Up to 65Ft, POE, 12VDC

Product Overview

The Bolide BTG-N1535 is a dependable 5MP IP Bullet camera designed for high-resolution security in a compact form factor. It utilizes a 3.6mm fixed lens to provide a wide, stable field of view, while H.265+ compression technology significantly reduces bandwidth and storage requirements without compromising image quality.

Key Configuration

• • Image sensor: 1/3" CMOS; effective pixels: 2592×1944 (5MP)
• • Lens: 3.6mm fixed, M12 interface, fixed iris
• • IR distance: 20 meters (approx. 65 ft)
• • Dual streams: Main (2592×1944@15fps), Secondary (D1@25fps)
• • Power: DC12V or PoE (external); power consumption: 10W max

Key Features

The BTG-N1535 is a stable 5MP bullet camera running on a Linux-embedded OS for low power consumption and high uptime. It utilizes H.265+ compression to maintain high-quality video with customizable bitrates up to 32 Mbps. Security is a priority, featuring watermark encryption to prevent tampering, privacy masking, and smart alarms for motion detection, IP conflicts, or "video blind" scenarios.

Technical Context

This camera is built for broad compatibility, supporting ONVIF and providing an SDK for third-party VMS integration. It features ICR automatic switchover for true day/night performance and an automatic recovery system that re-establishes network connections after interruptions. Management is handled via a multi-level user system, with adjustable image settings and OSD overlays accessible through standard web browsers.

Installation Notes

The unit features a compact 80 × 94 mm footprint with anti-static and surge protection built in. While the chassis is IP66-rated for weather resistance, it is designed for a functional operating range of -40°C to 60°C (optimal performance is -20°C to 55°C). It offers a simple key restore function to return to default settings, making it an easy-to-maintain solution for residential or light commercial use.
