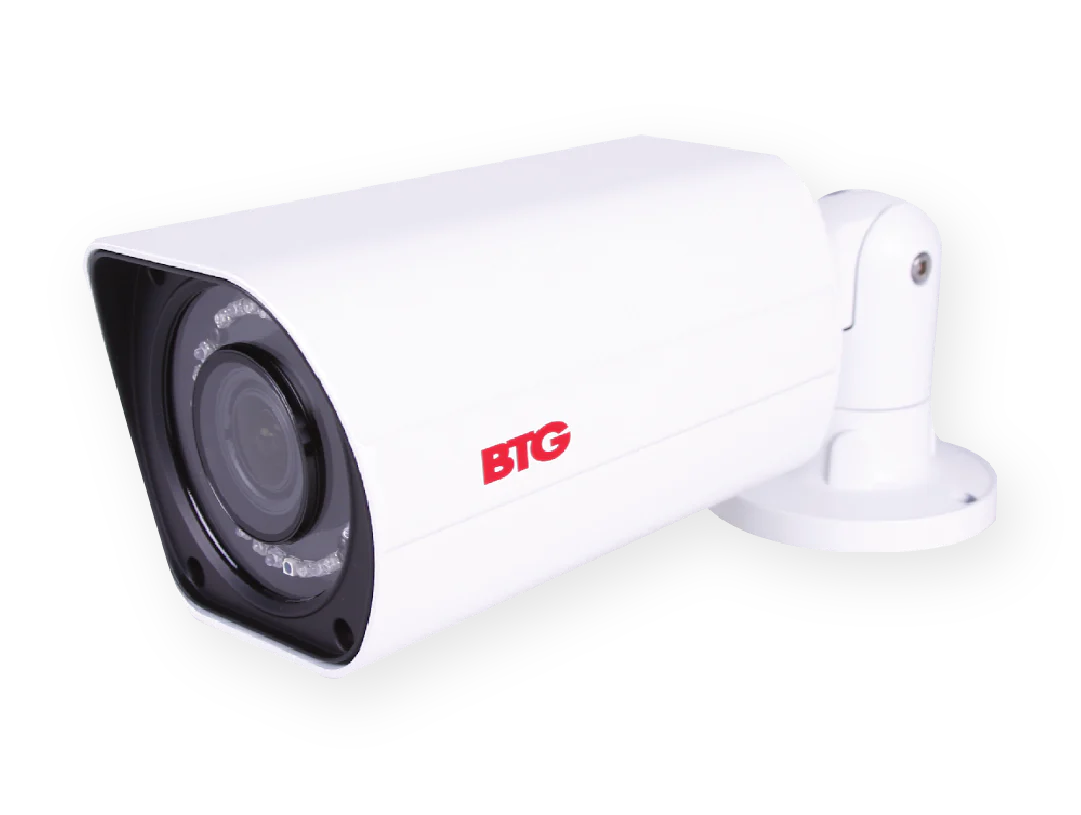

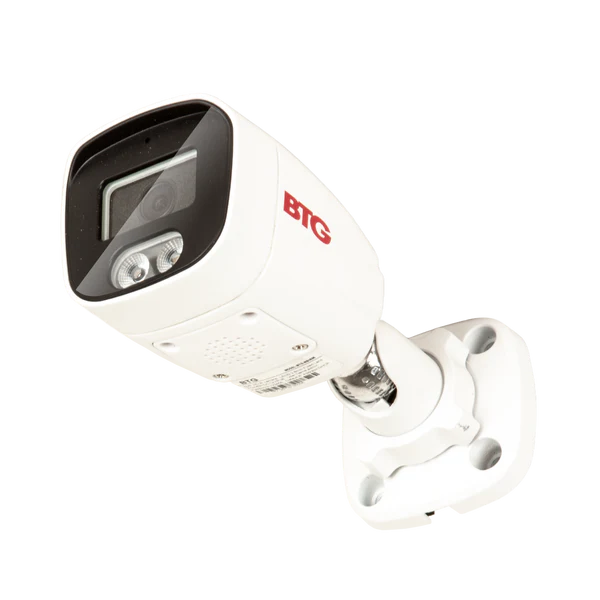

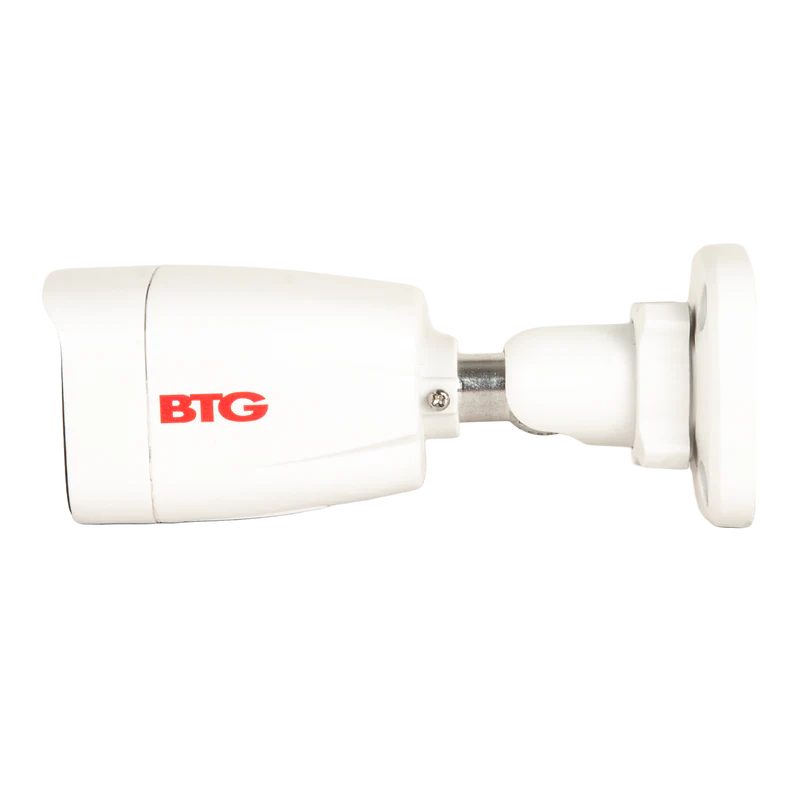

BOLIDE - BTG-N1536 - 5MP IP Bullet Camera, 2.8-12mm Varifocal Lens

Product Overview

The Bolide BTG-N1536 is a high-resolution 5MP IP Bullet camera engineered to deliver superior image detail and installation flexibility. Featuring a 2.8-12mm manual varifocal lens, it allows for precise field-of-view adjustments, while the 5MP (2592×1944) sensor ensures crisp, evidentiary-quality video. With support for advanced H.265+ compression, it optimizes bandwidth and storage efficiency without sacrificing visual clarity.

Key Configuration

• • Image sensor: 1/3" CMOS; effective pixels: 2592×1944 (5MP)
• • Lens: 2.8–12mm manual varifocal (φ14 interface); auto iris control
• • IR distance: up to 35 meters (approx. 115 ft – title states 100 ft)
• • Dual streams: Main (2592×1944@15fps), Secondary (D1@25fps)
• • Power: DC12V or PoE; power consumption: 12W max; power dissipation: 88mA–93mA

Key Features

Running on a Linux embedded OS, it ensures low power consumption and reliable 24/7 operation. With high-efficiency H.265+ compression and customizable bitrates up to 32 Mbps, it delivers exceptional video quality while significantly reducing storage demands.

Technical Context

The device features a robust RJ45 10/100M Ethernet interface supporting a wide range of protocols, including TCP/IP, RTSP, FTP, and SNMP. It delivers high-clarity video with an S/N ratio >50dB, allowing for precise adjustments to brightness, contrast, and sharpness. Users can manage the unit via iPhone, iPad, or Android platforms, utilizing flexible manual or timed recording modes and multi-level user administration.

Installation Notes

Protected by an IP66-rated off-white housing featuring integrated anti-static and surge protection. It is built for extreme environments, supporting a temperature range of -40°F to 140°F (-40°C to 60°C), ensuring reliable operation despite harsh weather or electrical fluctuations.
