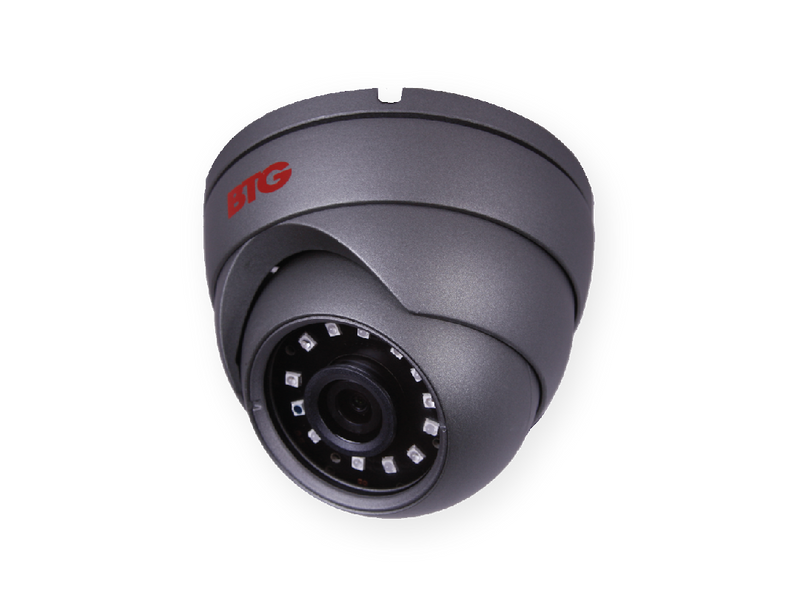

2MP AHD / TVI / CVI / Analog Eyeball Camera, 1/3" CMOS, 2.8mm-12mm Wide Angle Lens, IR Up to 100 ft., Control Over Coax, OSD, 12VDC, Charcoal Gray
2MP HD Analog Out put( AHD/TVI/CVI )
1/2.9” High-Performance Progressive Scan CMOS
No Delay,Lossless,Long Distance transmission Up to 400 meters
Lente de 2.8-12mm Manual varifocal
Support low illumination,auto color to black
Support ICR switch, realize day&night monitor
Applicable to the Financial Departments, Telecommunications, Government,
schools, airports, factory, Hotels , Museum, Public transportation and Other places.
| Image Sensor | 1 / 3” CMOS |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Resolution | 2MP 1080P / 960H |
| Signal System | NTSC / PAL |
| Sync System | Internal Sync |
| Video Output | AHD / TVI / CVI / CVBS ( Analog ) Compatible |
| S/N Ratio | 48Db ( min ) AGC ( closed ) |
| Dimension | 118mm x 118 mm x 83.6mm |
| Lens | Manual |
| Power Input | 12VDC |
| Power Dissipation | 88mA – 93mA |
| Transmission Distance | 300 M |
| Working Temperature | -40° ~ 60° C |
| Humidity | Less Than 85% RH |
| Storage Temperature | -40° ~ 60° C |
