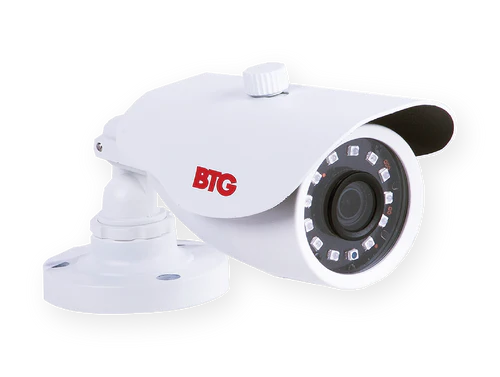

BOLIDE - BTG1235/AHQ - 2MP AHD / TVI / CVI / Analog Bullet Camera, 3.6mm Fixed Lens

Product Overview

The Bolide BTG1235/AHQ is a compact and versatile 2MP Hybrid Bullet camera designed for reliable 1080P surveillance over coaxial cabling. Its 4-in-1 technology ensures compatibility with AHD, TVI, CVI, and legacy CVBS systems, making it an ideal choice for budget-conscious upgrades. Equipped with a 3.6mm fixed lens and a 65ft IR range, it provides a wide, stable view with consistent performance in total darkness.

Key Configuration

• • Image sensor: 1/3" CMOS; effective pixels: 1920×1080 (2MP 1080P)
• • Resolution: 2MP 1080P / 960H; signal system: NTSC / PAL selectable
• • Lens: fixed 3.6mm (manual focus)
• • IR distance: up to 65 ft; transmission distance: up to 300 meters
• • Power: 12VDC; power dissipation: 88mA–93mA

Key Features

Its 4-in-1 video output ensures universal compatibility with AHD, TVI, CVI, and legacy CVBS (Analog) systems, making it a perfect solution for versatile site upgrades.

Technical Context

Housed in a compact white chassis measuring 185 × 68.5 × 77.3 mm, the camera is built for industrial-grade durability with an IP66 weatherproof rating. It operates reliably in extreme environments, maintaining a functional temperature range from -40°F to 140°F with humidity levels up to 85% RH. Powered by a standard 12VDC input, its robust design makes it an ideal security solution for high-traffic or critical infrastructure, including airports, government buildings, schools, and public transportation hubs.
