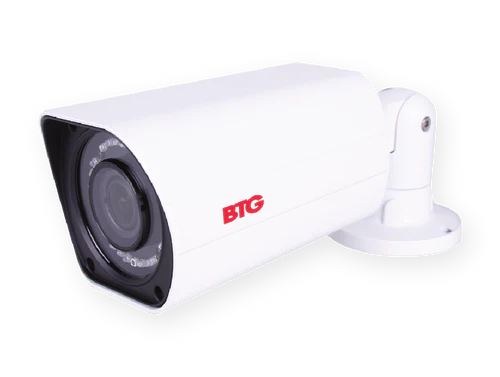

BOLIDE - BTG1236/28AHQ - 2MP AHD / TVI / CVI / Analog Bullet Camera Control Over Coax, 2.8-12mm Varifocal Lens

Product Overview

The Bolide BTG1236/28AHQ is a high-performance 2MP Hybrid Bullet camera that combines high-definition 1080P video with flexible optics. Its 4-in-1 technology provides universal compatibility across AHD, TVI, CVI, and legacy CVBS systems. Featuring a 2.8–12mm manual varifocal lens, it allows installers to precisely adjust the field of view from a wide-angle overview to a tight zoom, making it an adaptable solution for varied site requirements.

Key Configuration

• • Image sensor: 1/3" CMOS; effective pixels: 1920×1080 (2MP 1080P)
• • Resolution: 2MP 1080P / 960H; signal system: NTSC / PAL selectable
• • Lens: 2.8–12mm manual varifocal
• • IR distance: up to 100 ft (source shows 131 ft in description); transmission distance: up to 300 meters
• • Power: 12VDC; power dissipation: 88mA–93mA

Key Features

Delivers high-definition 1080P performance with the flexibility of a 4-in-1 hybrid output, supporting AHD, TVI, CVI, and legacy CVBS systems. Designed for real-time monitoring, it ensures lossless, long-distance transmission with zero latency, making it a reliable choice for critical security infrastructures.

Technical Context

Housed in a durable white chassis measuring 255 × 85 × 77 mm, this camera is built for industrial-grade reliability with an IP66 weatherproof rating. It is engineered to perform in extreme environments, maintaining a stable operating temperature range from -40°F to 140°F with humidity levels below 85% RH. This robust design makes it an ideal security solution for critical infrastructure and high-traffic sectors, including airports, government facilities, schools, and public transportation hubs.
