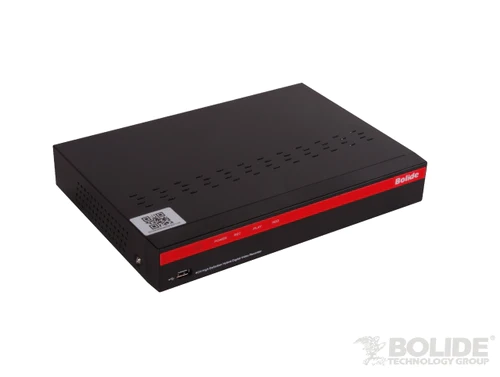

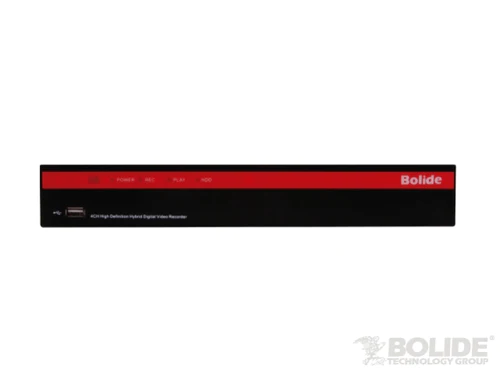

Bolide - SVR9504H/NDAA - 4-Channel Hybrid 5MP DVR
Part number:
SVR9504H/NDAA
Price:
4-Channel H.265 5MP HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 10Mbps IP Throughput, 4K Output, HDMI and VGA, 4-Channel Audio In/ 1-Channel Audio Out, 1 SATA Hard Drive Bay Up to 12TB, QuickConnect, NDAA Compliant
Features:
- 4K / 5MP Resolution
- NDAA Compliant
- Hybrid DVR - Additional IP Channels
- 1 HDD Bay Up to 12TB
- 1 HDMI, 1 VGA Outputs
- Built-in Video Analytics
- Bolide QuickConnect Enabled
- iPac AI Enabled
| Display | |
| Resolution | VGA: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080 |
| HDMI: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160 | |
| Feature | Single/Quad/S.E.Q/ |
| Record | |
| Resolution | Analog |
| 5MP/4MP/3MP/1080P/720P/960H | |
| IP | |
| 5MP/4MP/3MP/1080P/720P/960H | |
| Speed | Analog: 8MP: 7FPS / Channel, 5MP:12FPS / Channel, 4MP:15FPS / Channel, 1080P: PAL: 25FPS / Channel, |
| NTSC: 30FPS / Channel | |
| IP: PAL: 25FPS / Channel, NTSC: 30FPS / Channel | |
| Sub-Stream | |
| PAL：704x576: 10FPS/Channel, NTSC：704x480:10FPS/Channel | |
| Video Compression | H.265 / H.264 |
| Video System | NTSC/PAL |
| Operating System | Linux (embedded) |

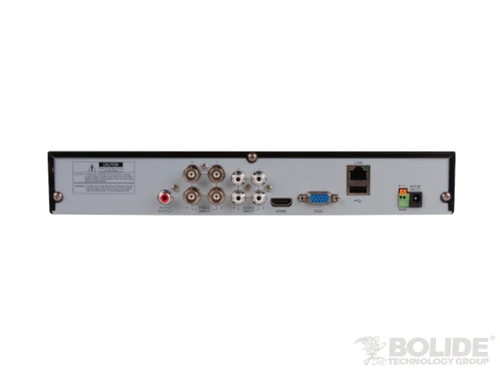

| Analog video input/output | 4-Channel BNC / VGA & HDMI Output |
| IP Video Input | 2-Channels |
| Composite Video Input | Up to 6 Channels ( Analog & IP ) |
| Audio Input/Output | 4 Audio In / 1 Audio Out |
| IP-Recording Bandwidth | 12Mbps |
| Max. Output Bandwidth | 48Mbps |
| Recording Mode | Continuous / Manual / Motion Detection / Alarm / Video Analytics |
| Synchronous Playback | 4 Channels |
| Network Type | LAN, DHCP |
| HDD Interface | 1 SATA HDD, up to 12TB |
| USB | 1 USB 2.0 ( Front ), 1 USB 2.0 ( Rear ) |
| PTZ Control | Control Over Coax, RS-485 |
| Mobile Surveillance | Bolide Quick Connect on iOS / Android |
| Power Supply | DC12V / 2A |
| Dimension | 11.8" x 8.2" x 1.89" |
| Working Temperature | 32°F~+104°F |
| Working Humidity | 10%~90% |
