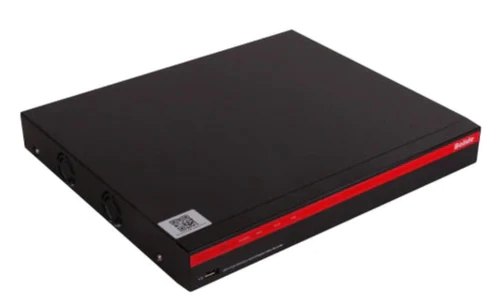

BOLIDE - SVR9516HAI - 16-Channel H.265 5MP HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 128Mbps + 192Mbps With Analog Off IP Camera Throughput, 4K Output, HDMI and VGA, 16-Channel Audio In/ 1-Channel Audio Out, 16-Channel A
Part number:
SVR9516HAI
Price:
16-Channel H.265 5MP HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 128Mbps + 192Mbps With Analog Off IP Camera Throughput, 4K Output, HDMI and VGA, 16-Channel Audio In/ 1-Channel Audio Out, 16-Channel Alarm In/ 1-Channel Alarm Out, BNC Spot Out, 2 SATA Hard Drive Bay Up to 24TB, QuickConnect NDAA Compliant
Features:
- 4K / 5MP Resolution
- NDAA Compliant
- Hybrid DVR - Additional IP Channels
- 2 HDD Bays Up to 12TB / Bay (24TB Total)
- 1 HDMI, 1 VGA Outputs
- Built-in Video Analytics
- Bolide QuickConnect Enabled
- iPac AI Enabled
| Display | |
| Resolution | VGA: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080 |
| HDMI: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160 | |
| Feature | Single/Quad/Nine/S.E.Q/Custom |
| Record | |
| Resolution | Analog |
| 8MP/5MP/4MP/3MP/1080P/720P/960H | |
| IP | |
| 8MP/5MP/4MP/3MP/1080P/720P/960H | |
| Speed | Analog: 8MP: 7FPS / Channel, 5MP:12FPS / Channel, 4MP:15FPS / Channel, 1080P: PAL: 25FPS / Channel, |
| NTSC: 30FPS / Channel | |
| IP: PAL: 25FPS / Channel, NTSC: 30FPS / Channel | |
| Sub-Stream | |
| PAL：704x576: 10FPS/Channel, NTSC：704x480:10FPS/Channel | |
| Video Compression | H.265 / H.264 |
| Video System | NTSC / PAL |
| Operating System | Linux (embedded) |
| Analog video Input/ Output | 16-Channel BNC / VGA, HDMI, BNC Output |
| IP Video Input | 16-Channels |
| Composite Video Input | Up to 24 Channels ( Analog & IP ) |
| Audio Input/Output | 16 Audio In / 1 Audio Out |
| IP-Recording Bandwidth | Up to 192Mbps |
| Max. Output Bandwidth | 192Mbps |
| Recording Mode | Continuous / Manual / Motion Detection / Alarm / Video Analytics |
| Synchronous Playback | Up to 16 Channels |
| Network Type | LAN, DHCP |
| HDD Interface | 2 SATA HDD, Up To 12TB Per Bay ( 24TB Total ) |
| USB | 1 USB 2.0 ( Front ), 1 USB 3.0 ( Rear ) |
| PTZ Control | Control Over Coax, RS-485 |
| Mobile Surveillance | Bolide Quick Connect on iOS / Android |
| Power Supply | DC12V / 5A |
| Dimension | 14.96" x 13" x 1.96" |
| Working Temperature | 32°F~+104°F |
| Working Humidity | 10%~90% |
