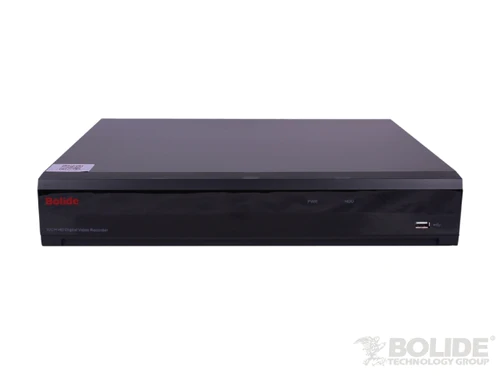

32-Channel H.264 5MP Lite HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 16Mbps IP Throughput, Records Up to 1080P, 4K Output, HDMI and VGA, 4-Channel Audio In/ 1-Channel Audio Out, 2 SATA Hard Drive Bay Up to 24TB Max, QuickConnect
| Display | |
| Resolution | Analog |
| 5MP (20fps) | |
| 3MP(18FPS) | |
| 1080P/720P/960H | |
| IP | |
| 5MP/4MP/3MP1080P/720P | |
| Feature | 1/4/6/8/9/10/13/14/16/17/19/22/25/32/36/49/S.E.Q. |
| Record | |
| Resolution | Analog |
| 1080P/720P/960H | |
| IP | |
| 1080P/720P | |
| Speed | Analog |
| 1080P: PAL: 15fps (each ch) | |
| 720P: PAL: 25fps (each ch) / NTSC: 30fps (each ch) | |
| 960H: PAL: 25fps (each ch) / NTSC: 30fps (each ch) | |
| IP | |
| PAL: 25fps (each ch) / NTSC: 30fps (each ch) | |
| Video Compression | H.264 |
| Video System | NTSC/PAL |
| Operating System | Linux (embedded) |
| Analog video input/output | 32CH inputs/VGA & HDMI output |
| IP Video Input | Up to 8CH |
| Composite Video Input | Up to 40 CH (Analog video + IP video) |
| Audio Input/Output | 4CH inputs / 1 CH output (RCA) |
| IP-Recording Bandwidth | 32Mbps |
| Max. Output Bandwidth | 128Mbps |
| Max. Decode Performance | 5MP: 16CH realtime |
| Recording Mode | Continuous/Manual/Motion detect |
| Synchronous Playback | 16CH |
| Network Type | TCP/IP, P2P |
| HDD Interface | 2 x SATA (Up to 24TB) |
| Sensor & Alarm I/O | 8CH inputs /1CH output |
| USB | 2 x USB (for mouse and backup) |
| PTZ Control | RS-485, Control over Coax |
| Mobile Surveillance | Supports mobile phones: iPhone/Android |
| VGA/HDMI | 1280*1024, 1440*900, 1280*720, 1920*1080, 1680*1050, 1600*1200, 1920*1200, 2560*1440, 3840*2160 |
| Power Supply | DC12V/5A |
| Dimension | 378 x 326 x 66mm |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
