Trendnet - TK-CAT5P - CAT5 PS/2 Server Interface
Part number:
TK-CAT5P
Price:

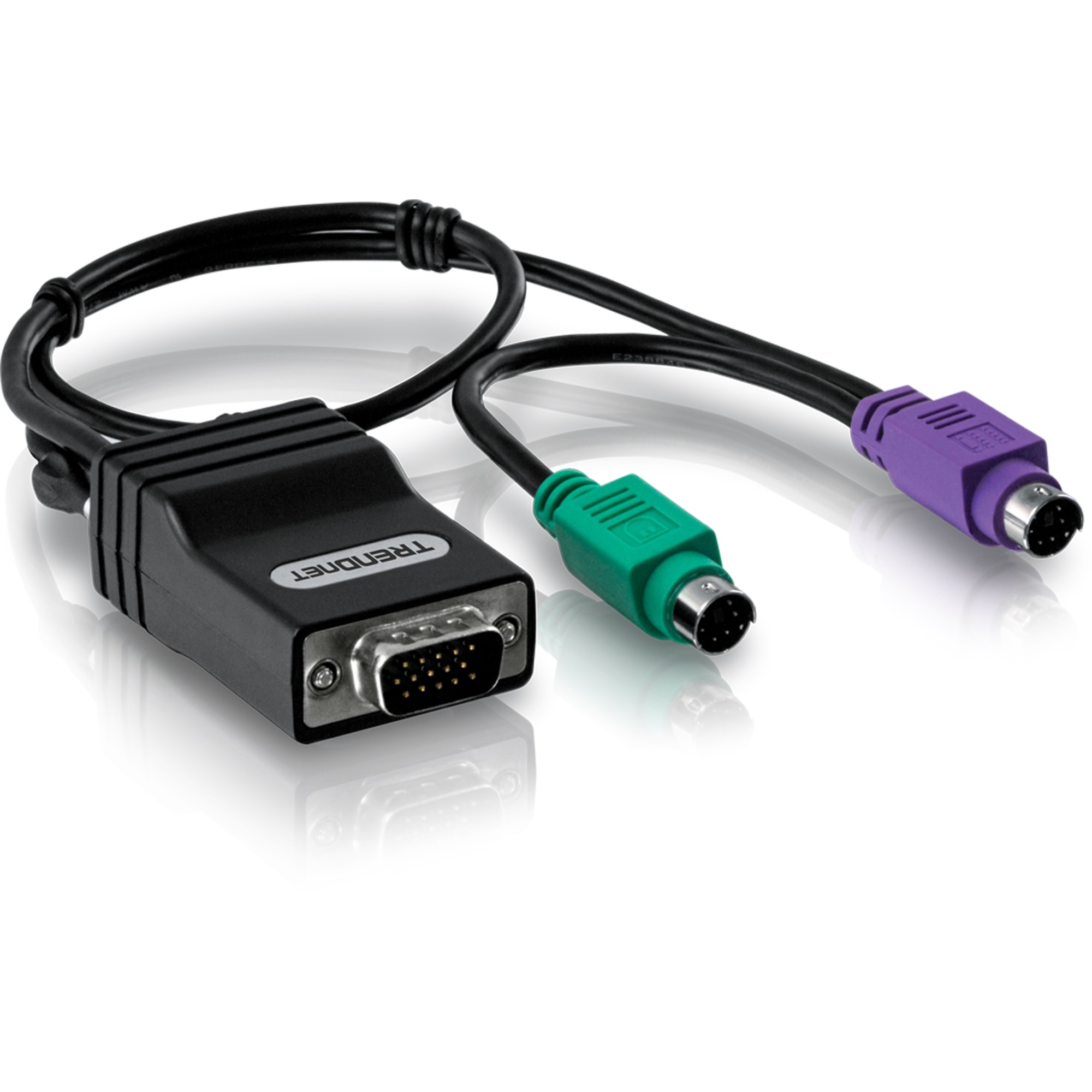

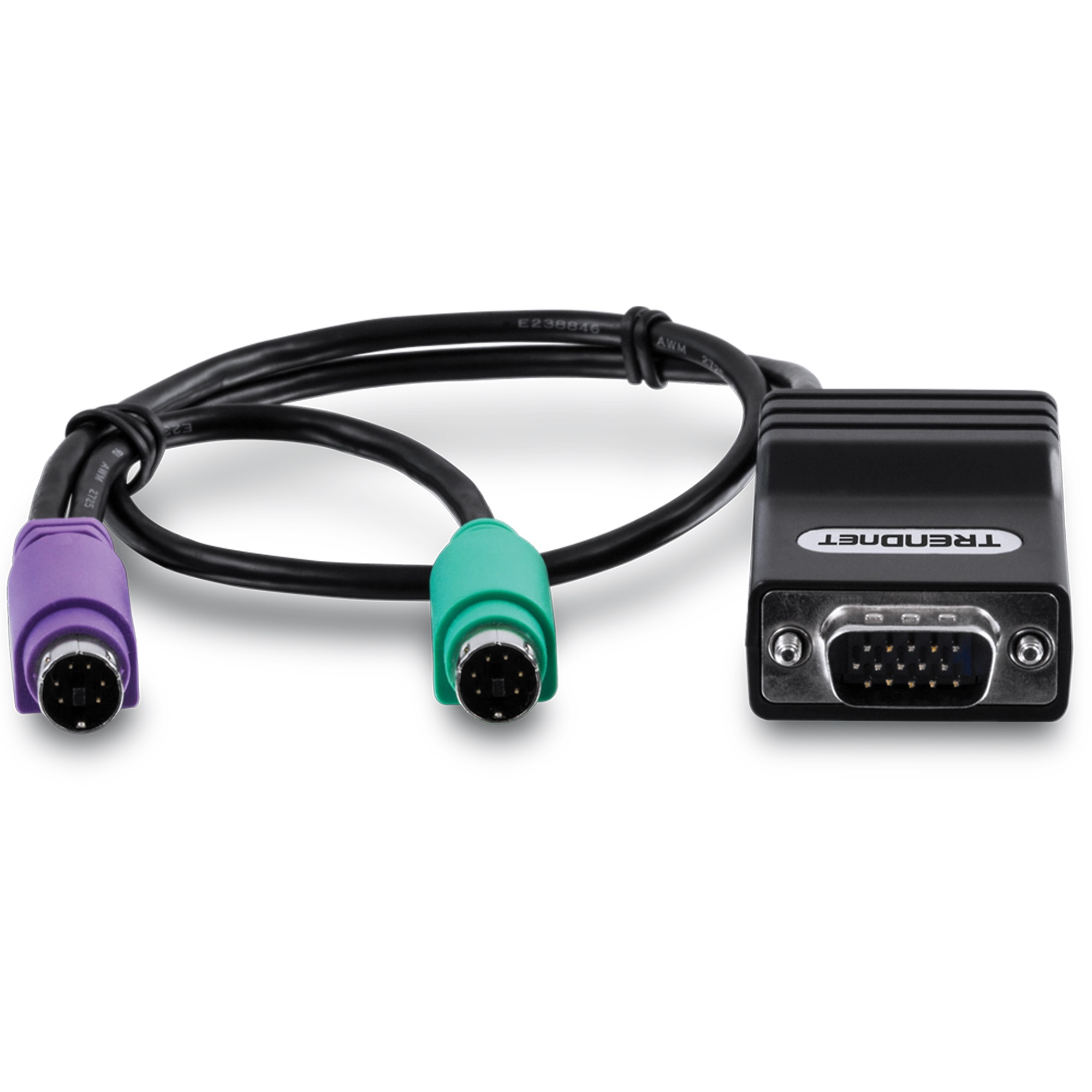

TRENDnet's CAT5 PS/2 Server Interface Module, model TK-CAT5P, connects a TRENDnet CAT5 KVM switch to a computer with an available PS/2 and VGA port. One TK-CAT5P is required per computer. CAT5, 5E and 6 cable connections are supported.



Features:

  • Connects a TRENDnet CAT5 KVM switch to a computer
  • Requires an available PS/2 and VGA computer port
  • Supports CAT5, 5e and 6 cables
  • One TK-CAT5P is required per computer
  • NDAA compliant
Interface

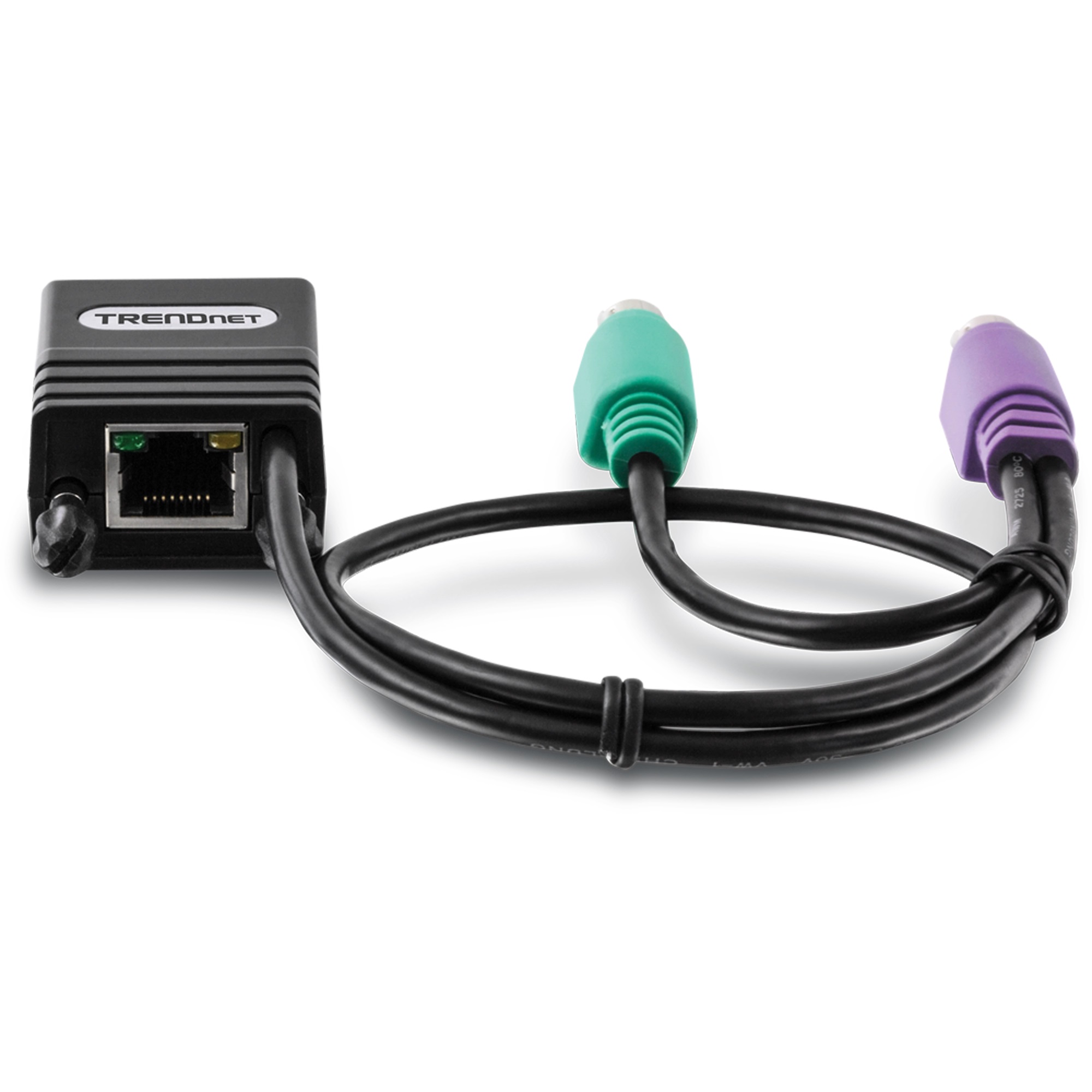

  • 10/100 Mbps Ethernet port (networked to CAT5 KVM switch)
  • 2x PS/2 male connector (Keyboard/Mouse connection to computer)
  • VGA male connector (VGA connection to computer)
Resolution
  • Up to 1600 x 1200 pixels
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • Cable length 40 cm (15.7 in.)
Weight
  • 54 g (1.9 oz.)
Warranty
  • 2 year limited
Certifications
  • CE
  • FCC
Supported Cables
  • CAT5, 5e, 6

PACKAGE CONTENTS

  • TK-CAT5P
