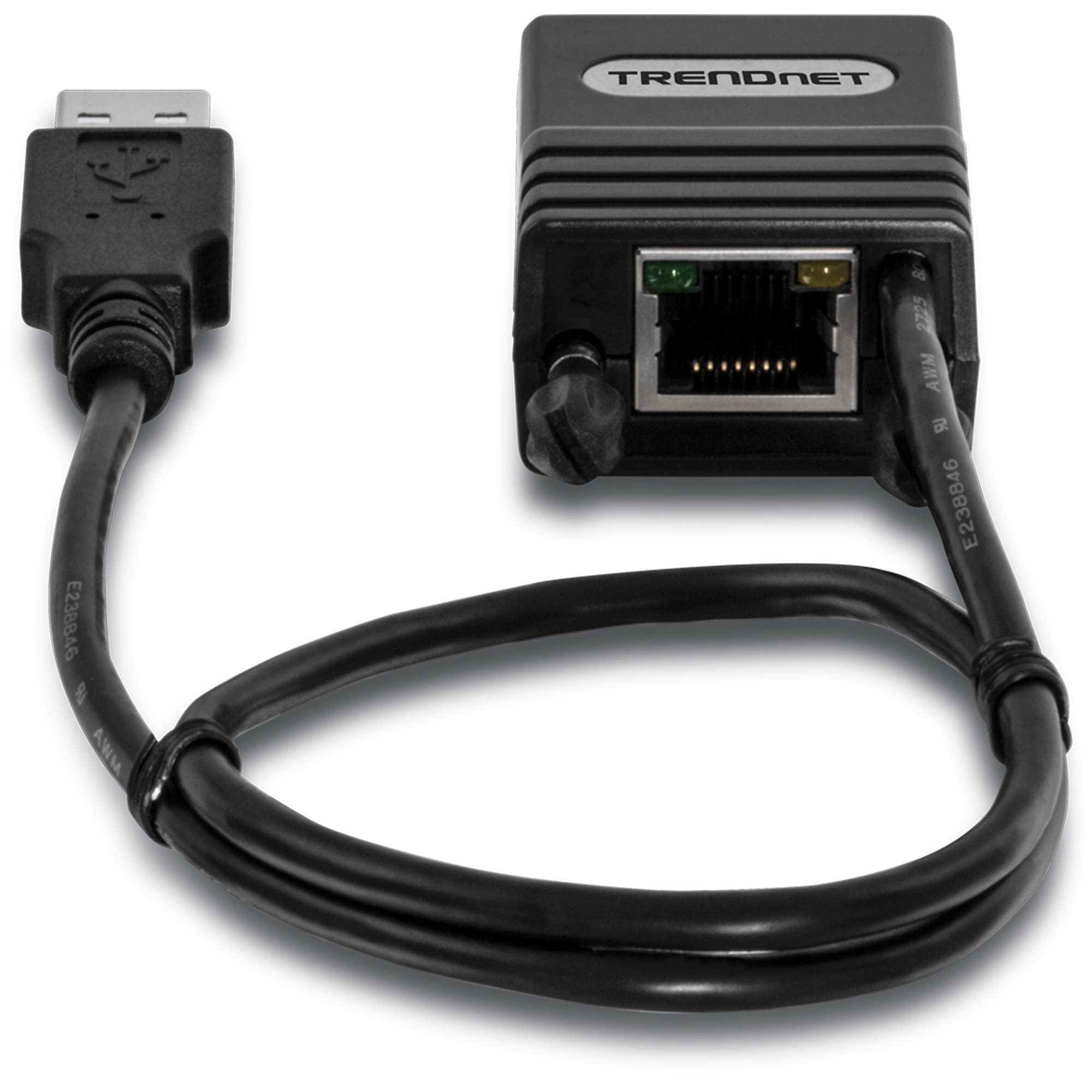

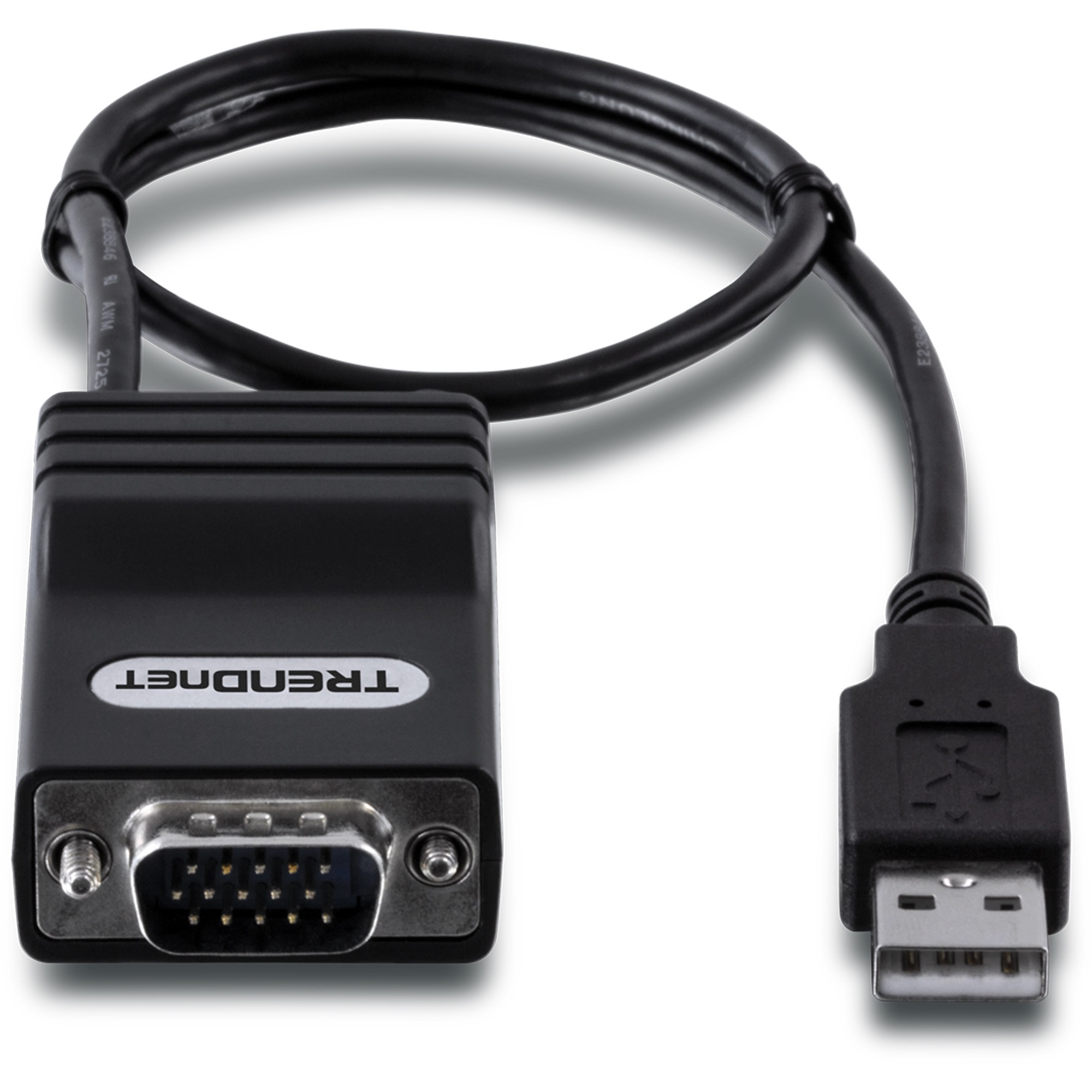

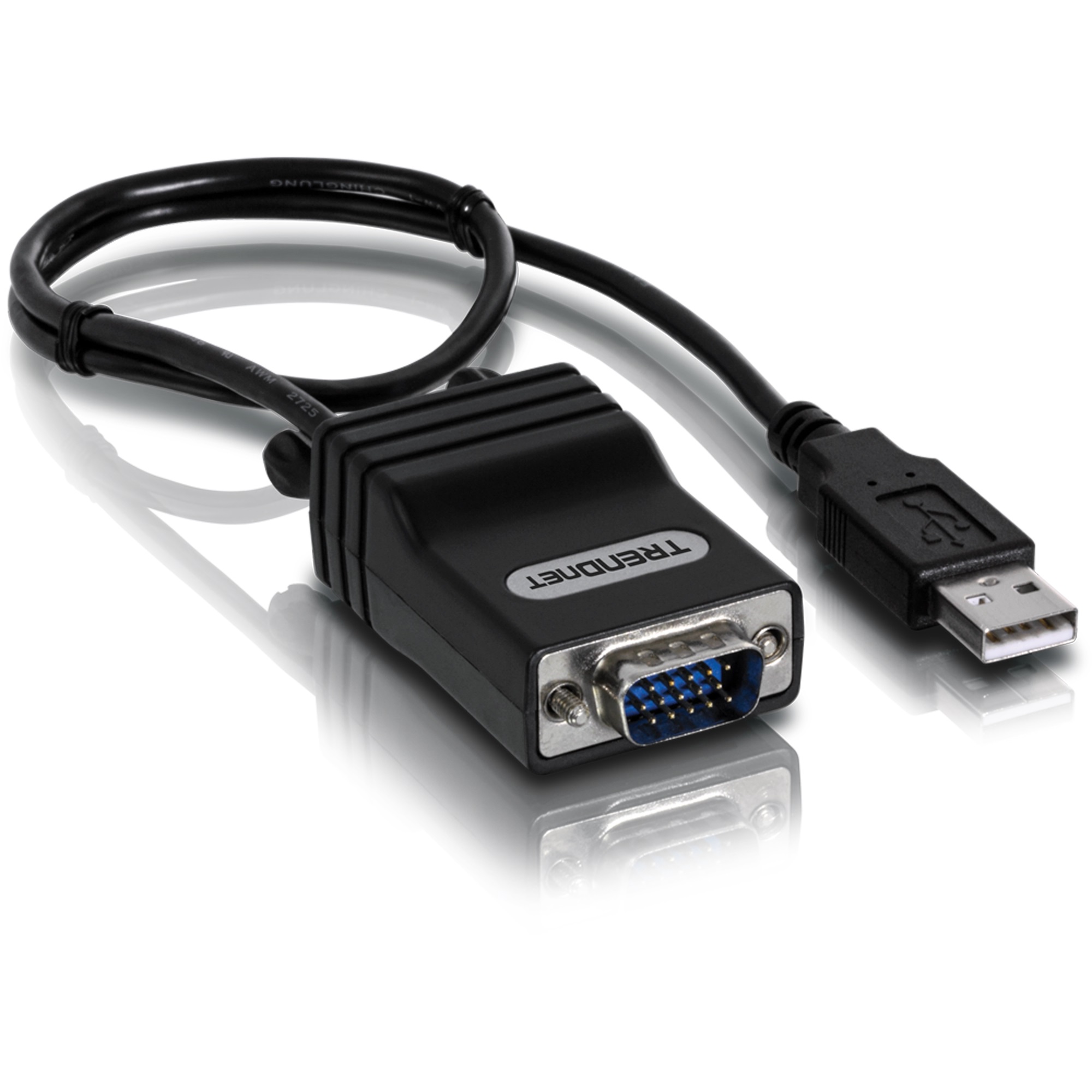

Trendnet - TK-CAT5U - CAT5 USB Server Interface
Part number:
TK-CAT5U
Price:

TRENDnet's CAT5 USB Server Interface Module, model TK-CAT5U, connects a TRENDnet CAT5 KVM switch to a computer with an available USB and VGA port. One TK-CAT5U is required per computer. CAT5, 5E, and 6 cable connections are supported.



Features:

  • Connects a TRENDnet CAT5 KVM switch to a computer
  • Requires an available USB and VGA computer port
  • Supports CAT5, 5e and 6 cables
  • One TK-CAT5U is required per computer
  • NDAA compliant
Interface
  • 10/100 Mbps Ethernet port (networked to CAT5 KVM switch)
  • USB 2.0 male connector (Keyboard/Mouse connection to computer)
  • VGA male connector (VGA connection to computer)
Resolution
  • Up to 1600 x 1200 pixels
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • Cable length 40 cm (15.7 in.)
Weight
  • 48 g (1.7 oz.)
Warranty
  • 2 year limited
Certifications
  • CE
  • FCC
Supported Cables
  • CAT5, 5e, 6
Name
Description
Size
Downloads
File
Datasheet
1.2mb
