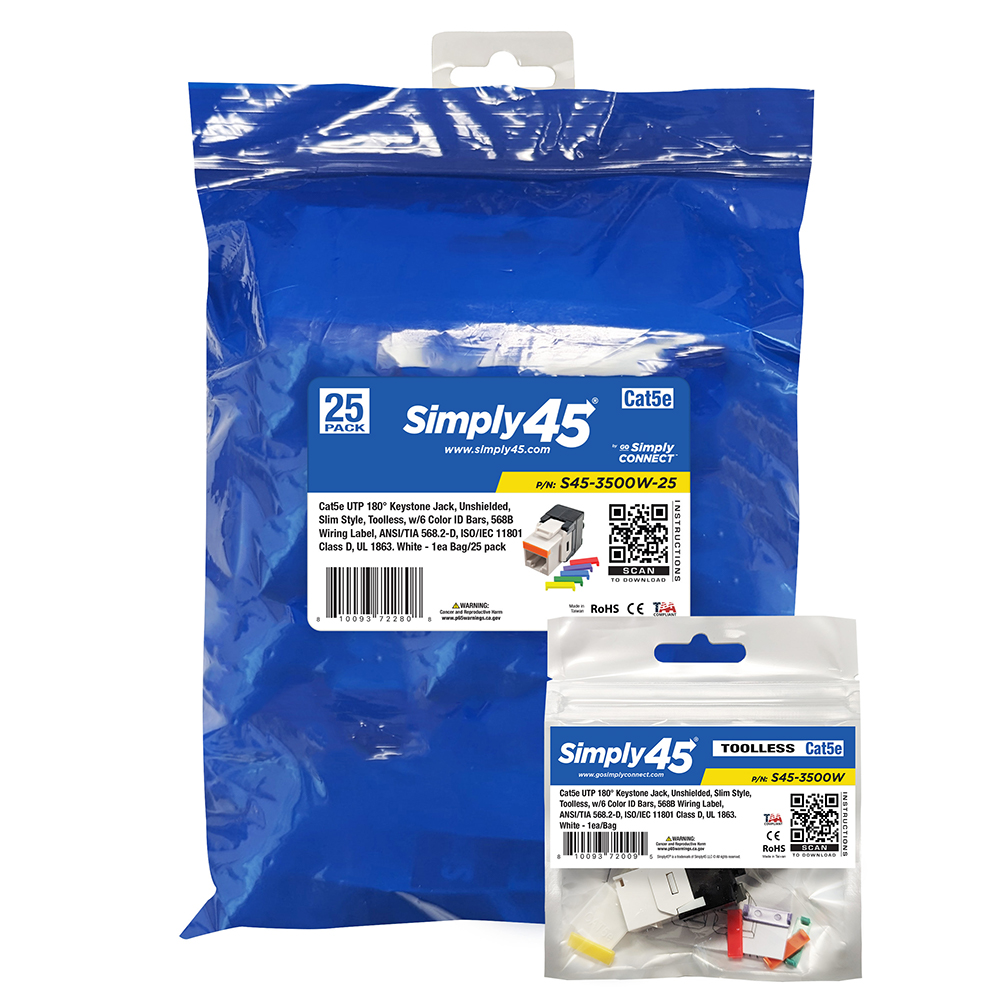

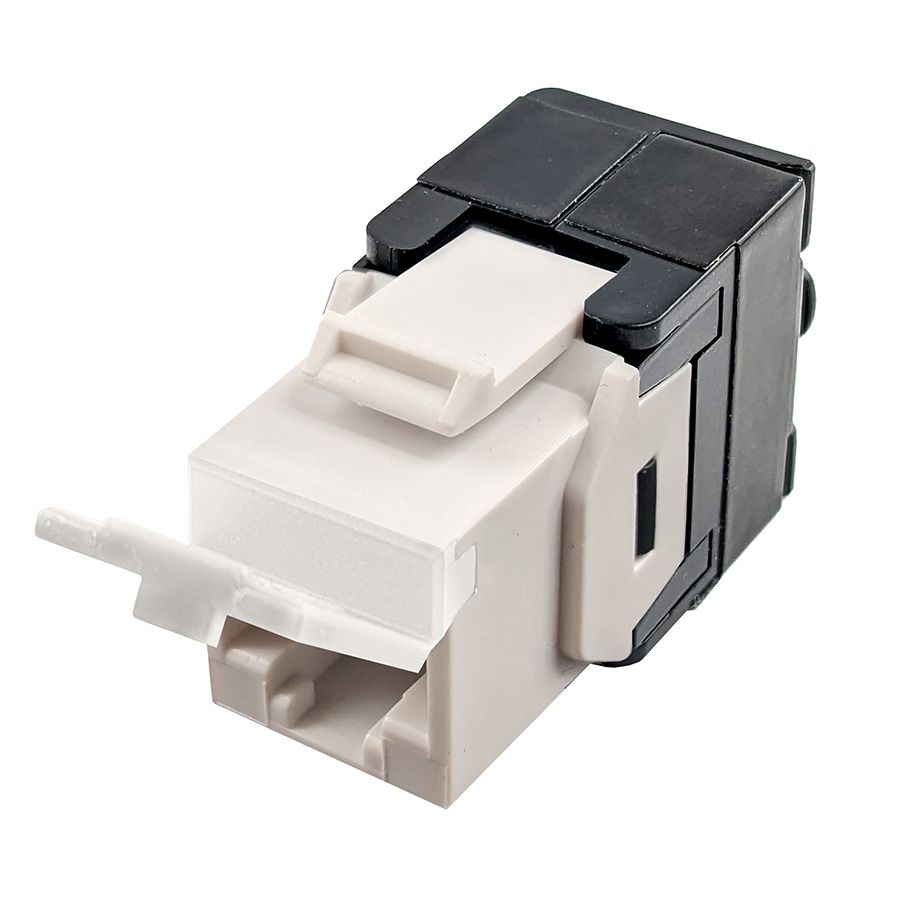

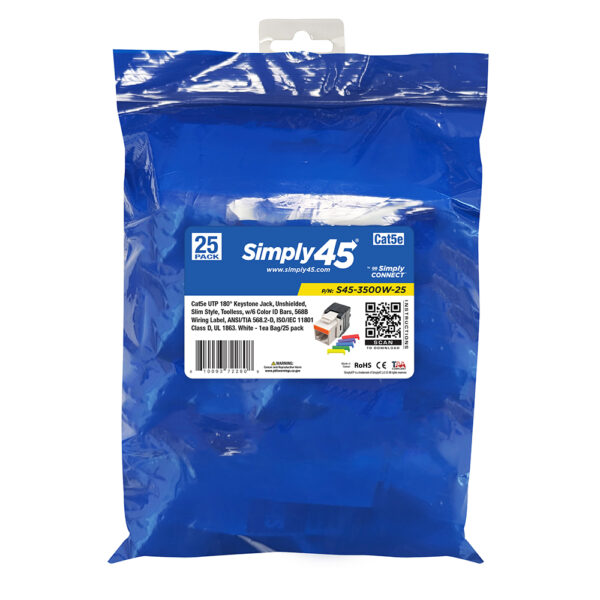

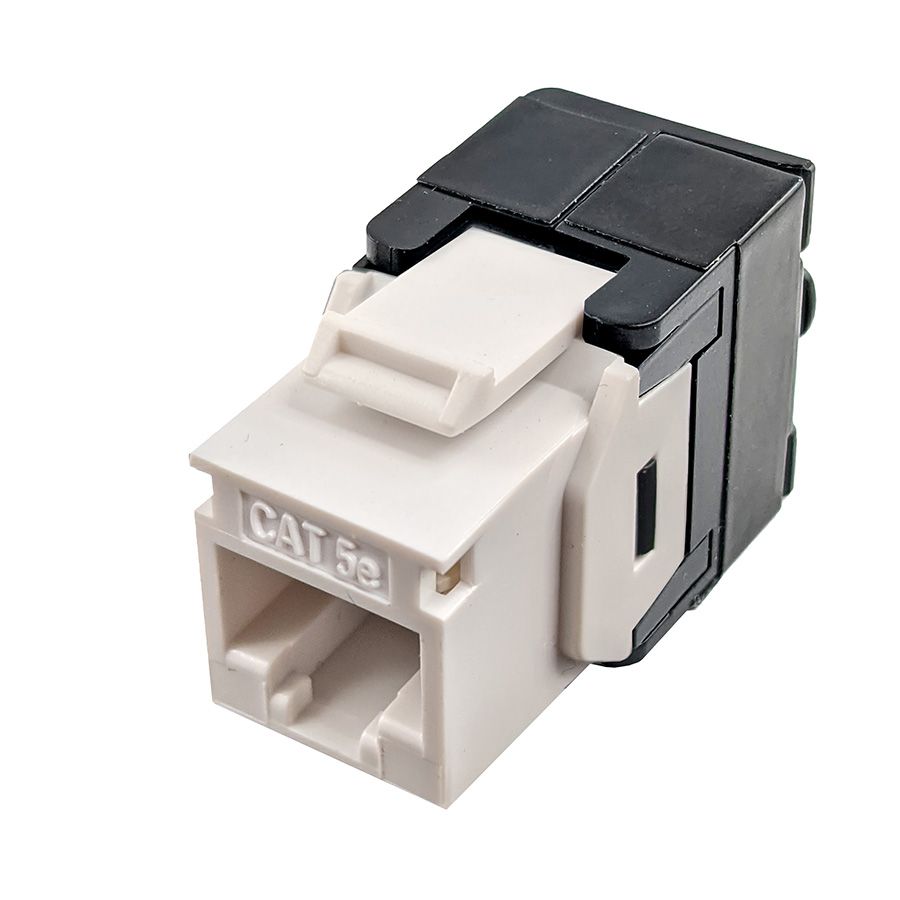

Simply 45 - S45-3500W-25 - Cat5e UTP 180° White Keystone Jack, Toolless, Dust Cover, w/6-Color Snap-On ID Bars Included. 1ea/Bag, 25/Pack
Part number:
S45-3500W-25
Price:
Cat5e UTP 180 Degree Keystone Jack, Unshielded, Slim Style, Toolless, w/6 Color ID Bars, 568B Wiring Label, ANSI/TIA 568.2-D, ISO/IEC 11801 Class D, UL – White – 25 EA/BAG
Features:

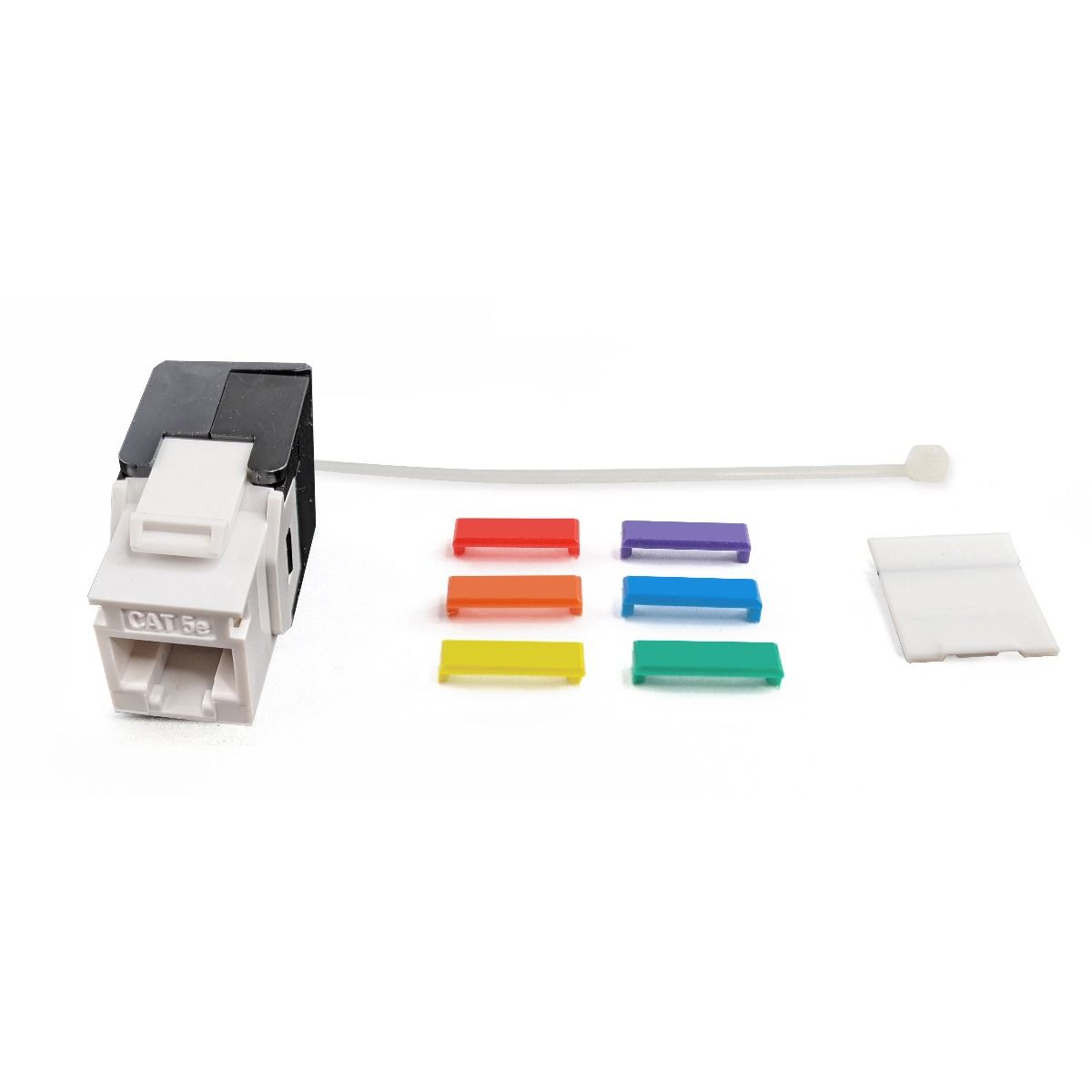

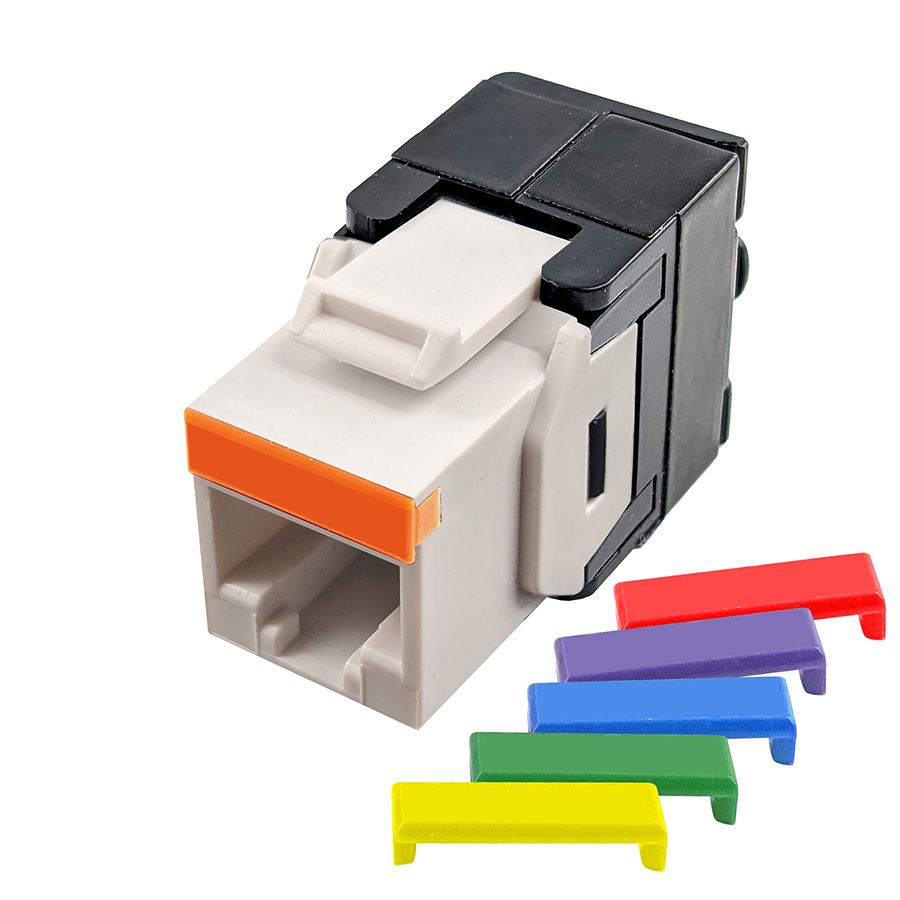

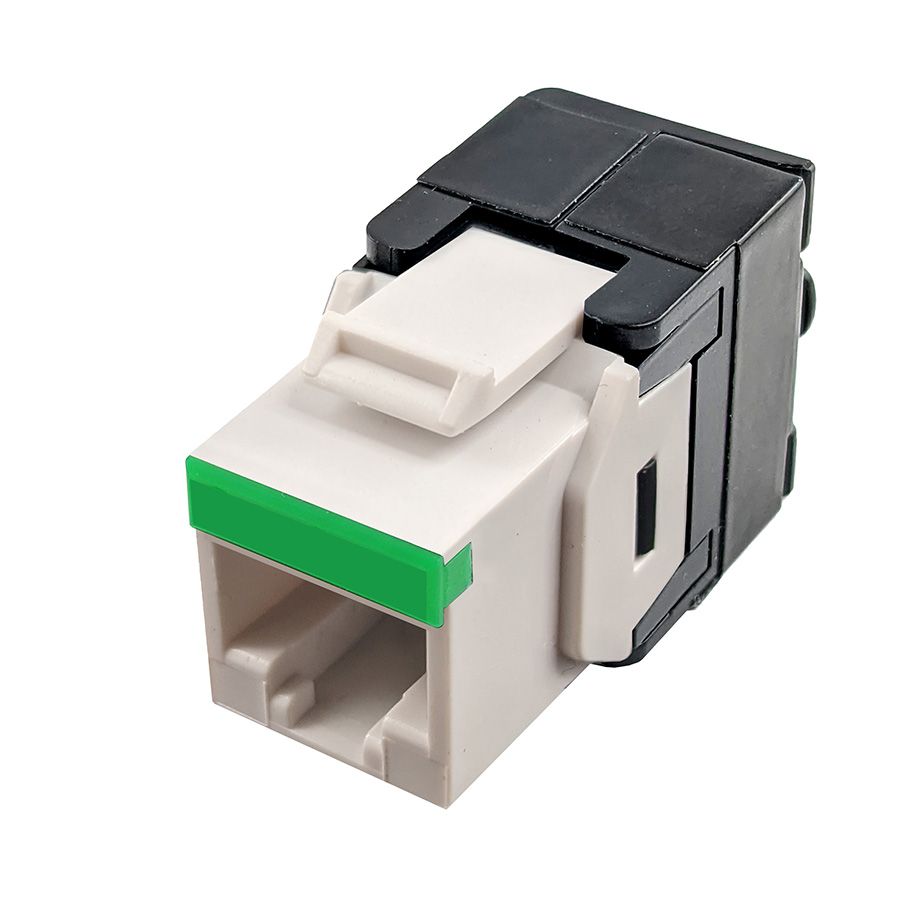

- Interchangeable (6) Color Coded Snap-On Bars
- Narrow Design Supports Side-by-Side Installation in Patch Panels
- Wire Layout Diagram Simplifies Termination and Reduces Untwisting
- of Cable Wires Supports Cat5e UTP Cabling
- Toolless Design Requires No Punchdown or Specialty Tooling
- 180° Degree Design is Ideal for Patch Panel Applications
- UL Listed
- Professional Quality
| Electrical Specification | |
| Insulation Resistance | >= 500 MΩ |
| Dielectric Withstand Volt: | 100VAC |
| Contact Resistance | <=20mΩ |
| Current Carrying Capacity | 1.5A at 68F |
| Mechanical Specifications | |
| 24AWG Wire Conductors | Cat5e UTP cabling |
| Plug insertion Life | >=750 times plug in |
| Contact Force | 99.2 g (3.5oz) FCC Plug |
| Plug Retention Force | 30 lb (133n/13.3Kg ) |
| Temperature (Installation) | -40 to 150°F (-40 to 66°C ) |
| Temperature (Operating | -10C to 60C |
| Contact Plating | 50 u” over contact area |
Name
Description
Size
Downloads
File
Instructions
0.5mb
