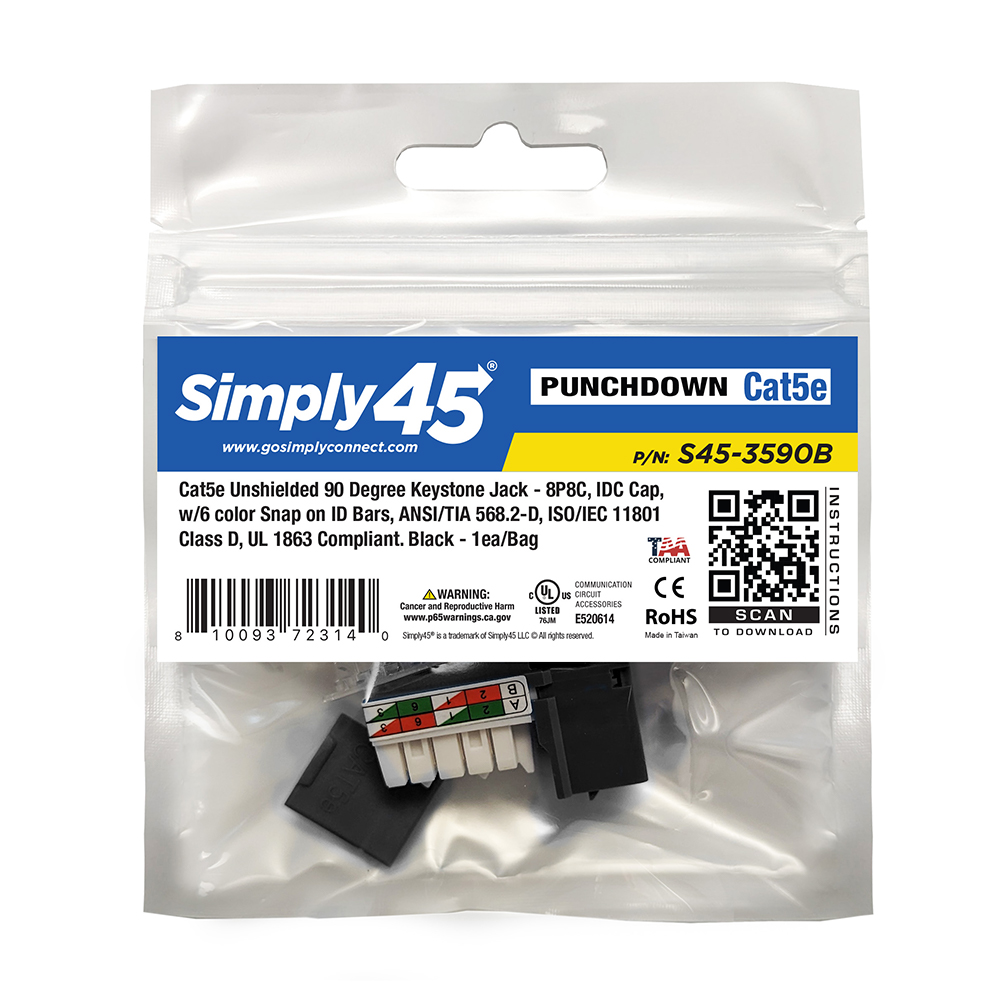

Cat5e UTP 90° Black Keystone 110 Style RJ45 Jack, 8P8C, 50µ Gold Plated Contacts, IDC Cap, connector dust cover UL Listed. ANSI/TIA 1096-A, ANSI/TIA 568.2-D, ISO/IEC 11801 Class D, PoE: IEEE 802.3bt Type 1. w/6-Color Snap-On ID Bars Included. 1EA/Bag, 25/Pack
Simply45 S45-3590 CAT5 jack is designed for use in CAT5 UTP connectivity keystone applications such as wall plates, patch panels, surface mount boxes etc. The jack is built on a 90-degree configuration 110 IDC punch down tower design.
Meets or exceeds requirements for performance recognized by ANSI/TIA-568.2-D. Simply45 S45-3590 CAT5 jack fits all other installed telecommunication wall plates, outlets and configurable patch panels. Accommodates color codes for 568A and 568B. Simply45 S45-3590 is the affordable approach to promote performance excellence over the life of system install. Its narrow housing design allows jacks to fit side by side or stackable in 1-6 port plates without clearance issues.
Features:
- Terminates 24-22AWG solid / 24AWG stranded
- ANSI/TIA-568.2-D (CAT 5E)
- ISO/IEC 11801-1 (Class D)
- ANSI/TIA-1096-A (Formerly FCC part 68)
- 50μ gold plated
- Housing abs, UL94v.0 Plenum Rated
- Power over HDBaseT PoE (95 Watts)
- 90-degree, includes dust cap
- IEEE 802.3bt PoE Type 1 (15.4 Watts)
- Available in 10 packs
- 2 colors available (Black and White)
- cUL us listed
