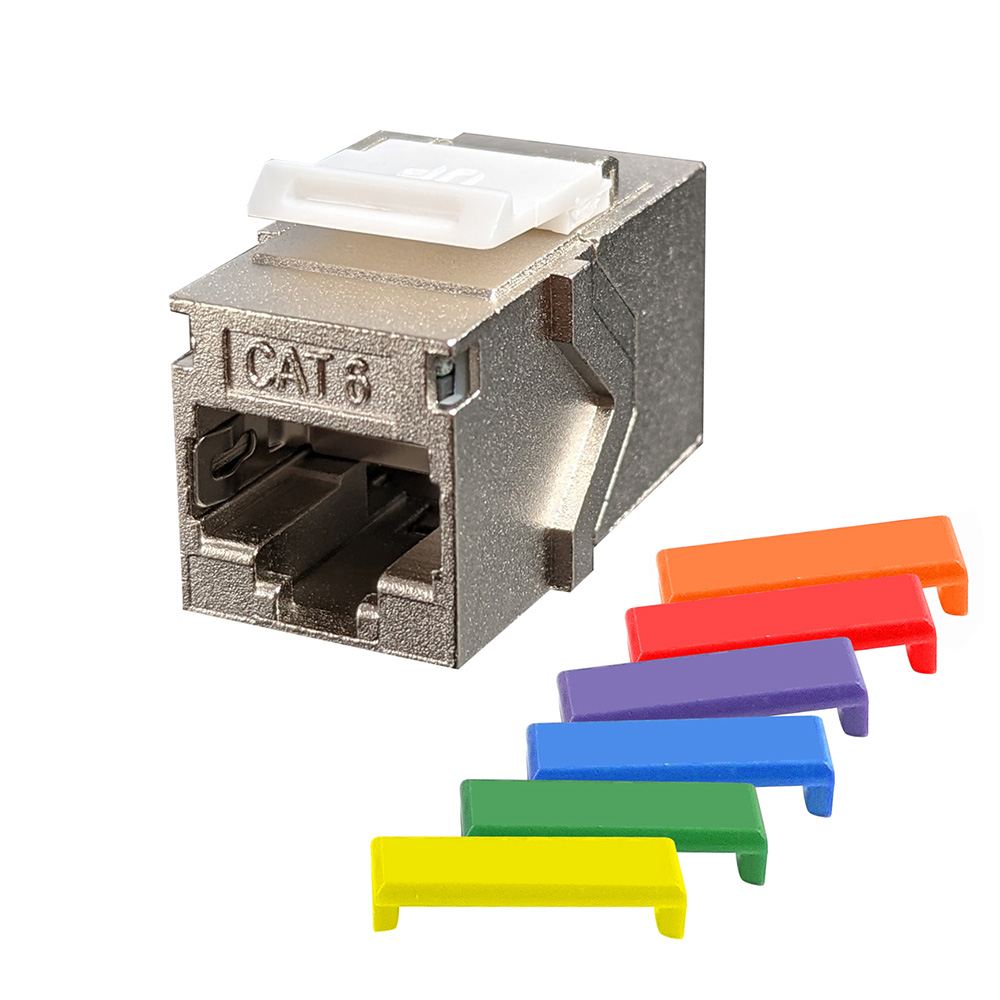

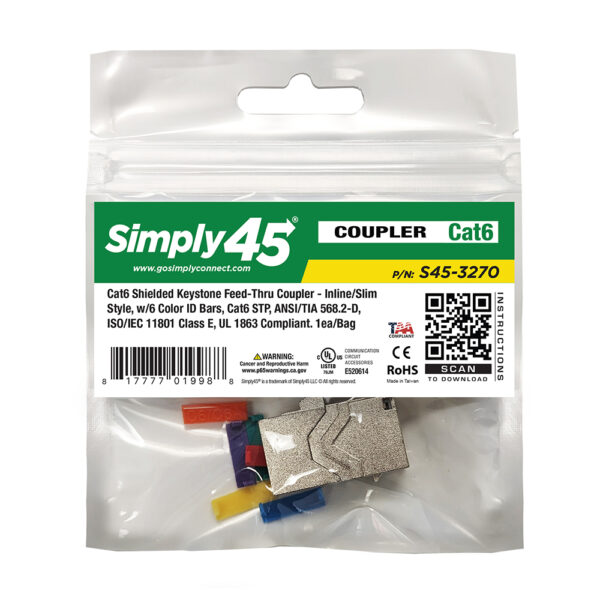

Simply 45 - S45-3270 - Cat6 STP Keystone Feed-Thru Coupler - w/6-Color Snap-On ID Bars Included. 1ea/bag
Part number:
S45-3270
Price:

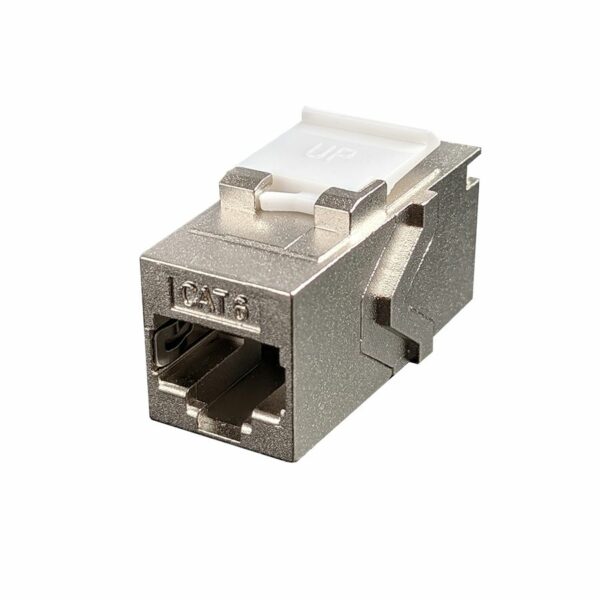

Cat6 Shielded Keystone Feed-Thru Coupler – Inline/Slim Style, Cat6 STP, ANSI/TIA 568.2-D, ISO/IEC 11801 Class E. Supports S45 Snap-On ID Bars – 1 EA/BAG
Features:
- Female to Female CAT6 STP RJ45 Keystone Coupler
- 50μ Gold Plated
- Snap-in design / Slim Style
- Available in 10 packs
- RoHS Compliant
- ANSI/TIA 568.2-D
- ISO/IEC 11801 Class E
- Compatible with Simply45 Keystone Snap-On ID Bars (p/n: S45-3790 - sold separately)
| Electrical Specification | |
| Insulation Resistance | >= 500 MΩ |
| Dielectric Withstand Volt | 100VAC RMS 60Hz |
| Voltage Proof, contact-contact | >= 1000V DC |
| Voltage Proof, contact-shell | >= 1500V DC |
| Current Carrying Capacity | 1 A at 50°C |
| Mechanical Specifications | |
| Plug insertion Life | >=750 times plug in |
| Contact Force | 99.2 g (3.5oz) FCC Plug |
| Plug Retention Force | 30 lb (133n/13.3Kg ) |
| Temperature Test | -40 to 150°F (-40 to 66°C ) |
| Contact Plating | 50 u” over contact area |
| Metal Housing | Zinc Alloy with Nickel plated |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
