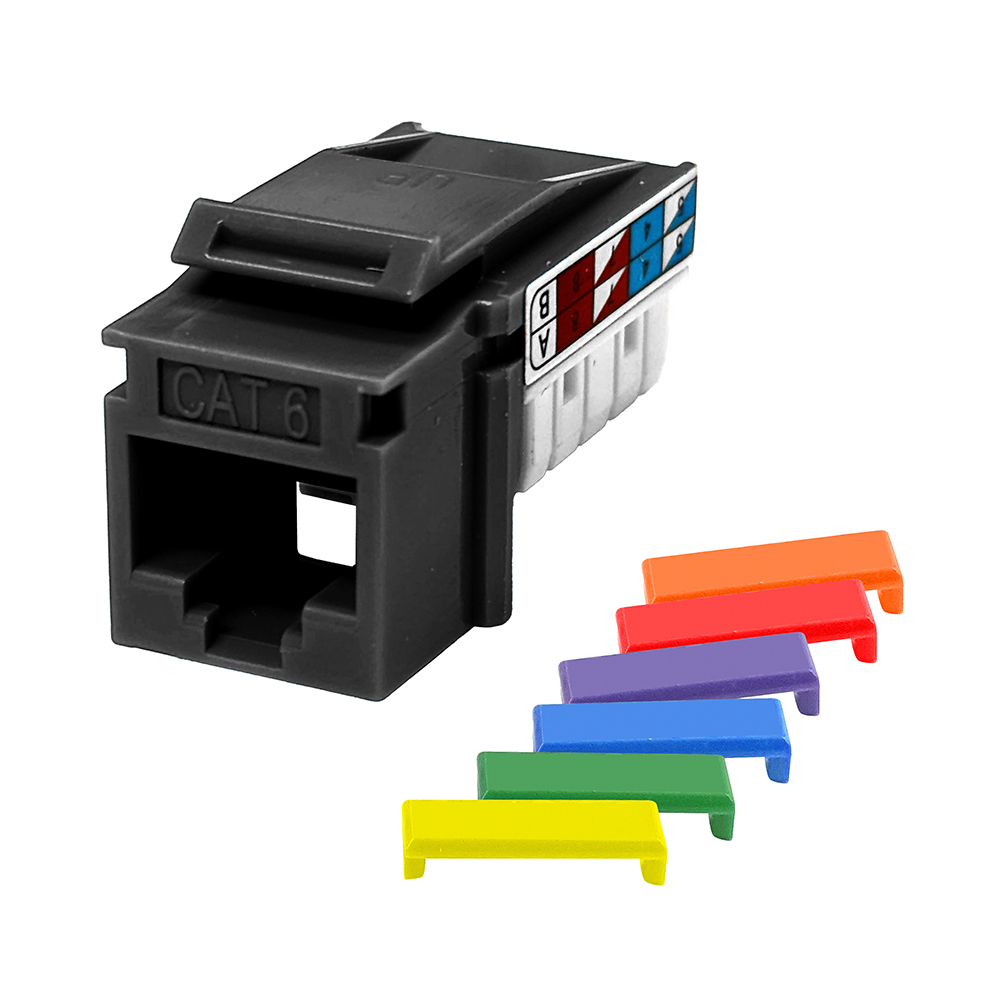

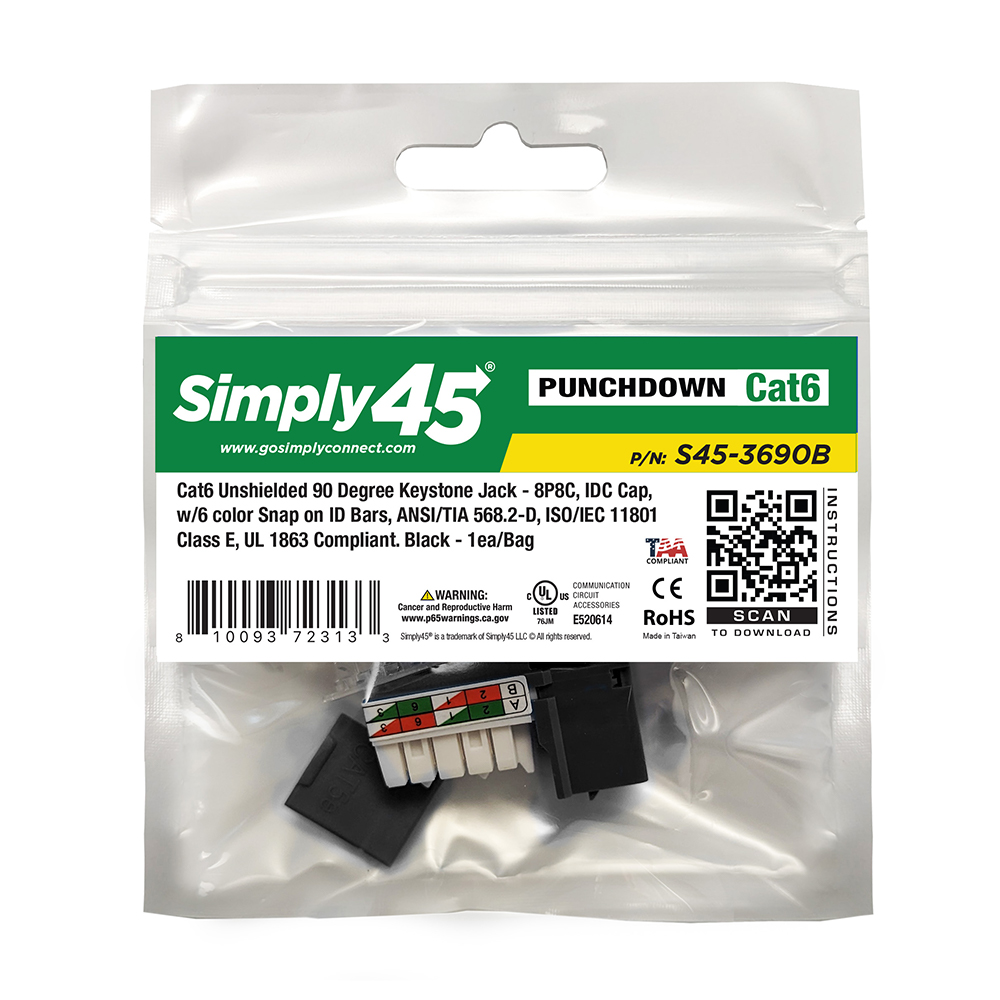

Cat6 UTP 90° Black Keystone 110 Style RJ45 Jack, 8P8C, 50µ Gold Plated Contacts, IDC Cap, connector dust cover UL Listed- 1 ea/bag. ANSI/TIA 1096-A, ANSI/TIA 568.2-D, ISO/IEC 11801 Class E, PoE: IEEE 802.3bt Type 1-2. w/6-Color Snap-On ID Bars Included. 1ea/bag
Simply45 S45-3690 is designed for use in cat6 utp connectivity keystone applications such as wall plates, patch panels, surface mount boxes etc. The jack is built on a 90-degree configuration 110 idc punch down tower design. Meets or exceeds requirements for performance recognized by ansi/tia-568.2-d. Jack fits all other installed telecommunication wall plates, outlets and configurable patch panels. accommodates color codes for 568a and 568b. Simply45 S45-3690 is the affordable approach to promote performance excellence over the life of system install. Our S45-3690 narrow housing design allows jacks to fit side by side or stackable in 1-6 port plates without clearance issues.
Features:
- Terminates 24-22AWG solid
- ANSI/TIA-568.2-D (CAT 6)
- ISO/IEC 11801-1 (Class E)
- ANSI/TIA-1096-A (Formerly FCC part 68)
- 50μ gold plated
- Housing abs, 0 Plenum Rated
- Power over HDBaseT™ PoE (95 Watts)
- 90-degree, includes dust cap
- IEEE 3bt PoE Type 1 (15.4 Watts)
- Available in 10 packs
- 2 colors available (Blue and White)
- cUL us listed
- Compatible with Simply45 Keystone Snap-On ID Bars (p/n: S45-3790 - sold separately)
