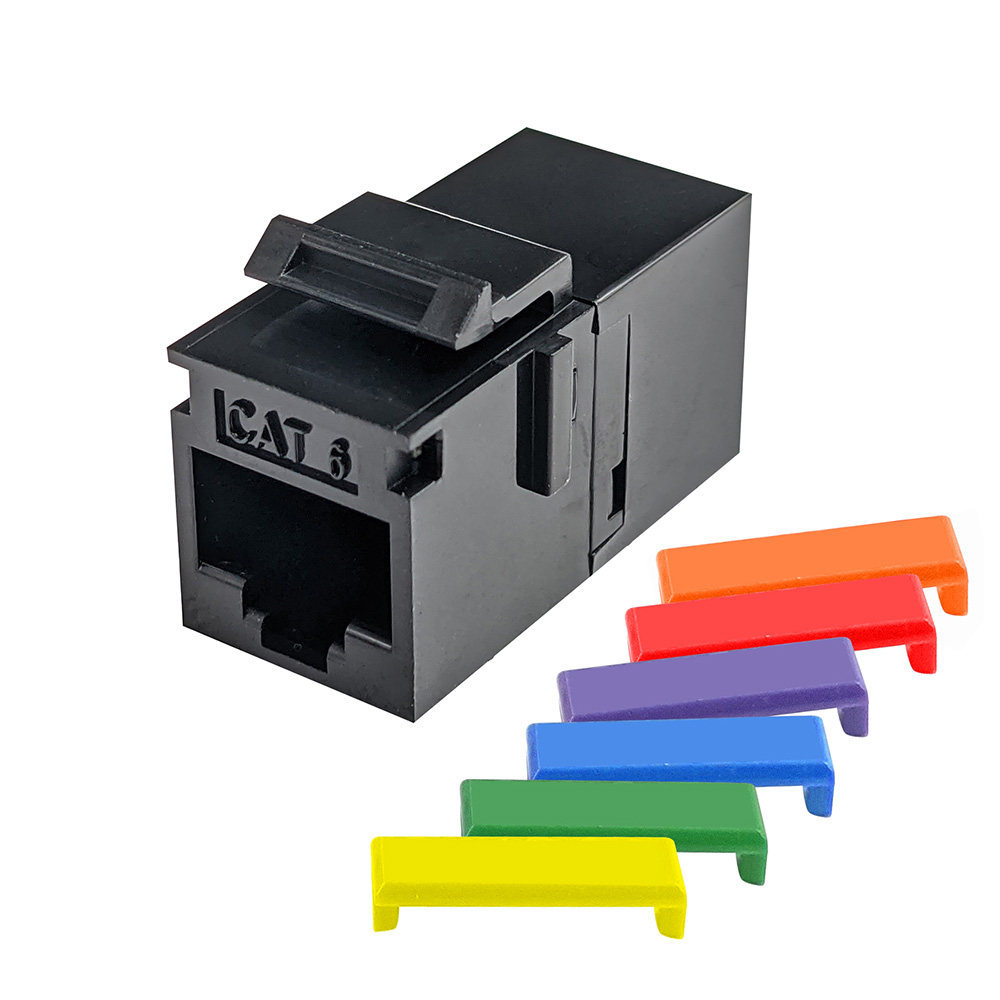

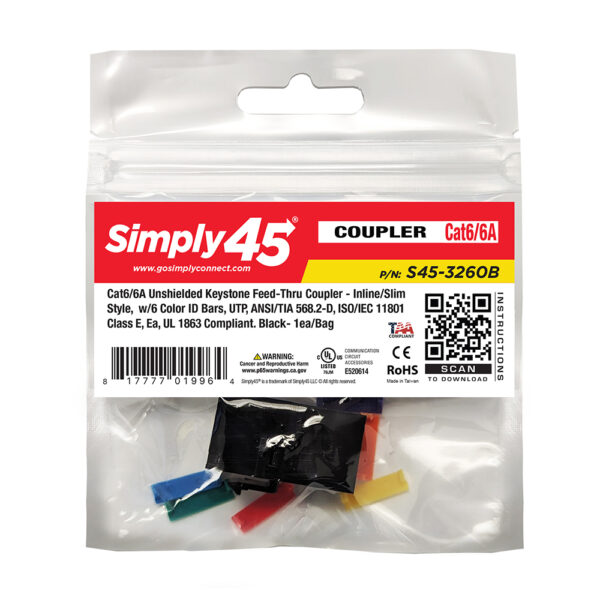

Simply 45 - S45-3260B - Cat6 UTP Black Keystone Feed-Thru Coupler - w/6-Color Snap-On ID Bars Included. 1ea/bag
Part number:
S45-3260B
Price:

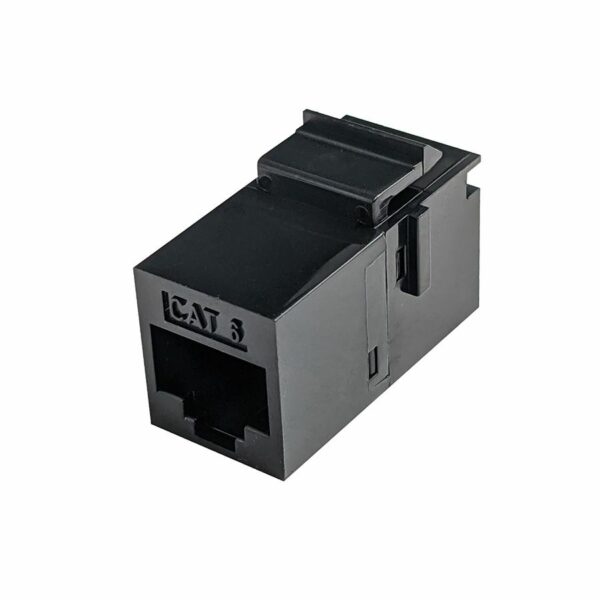

Cat6 Unshielded Keystone Feed-Thru Coupler – Inline/Slim Style, Cat6 UTP, ANSI/TIA 568.2-D, ISO/IEC 11801 Class E. Supports S45 Snap-On ID Bars – Black – 1 EA/BAG
Features:
- Female to Female CAT6 UTP RJ45 Keystone Coupler
- 50μ Gold Plated
- Snap-in design / Slim Style
- Available in 10 packs
- RoHS Compliant
- ANSI/TIA 568.2-D
- ISO/IEC 11801 Class E
- Available in White - S45-3260W and Black - S45-3260B
- Compatible with SImply45 Keystone Snap-On ID Bars (p/n: S45-3790 - sold separately)
| Electrical Specification | |
| Insulation Resistance | >= 500 MΩ |
| Dielectric Withstand Volt | 100VAC RMS 60Hz |
| Contact Resistance | <= 20 mΩ |
| Current Rating | 1.5 A at 68°F |
| Mechanical Specifications | |
| Plug insertion Life | >=750 times plug in |
| Contact Force | 99.2 g (3.5oz) FCC Plug |
| Plug Retention Force | 30 lb (133n/13.3Kg ) |
| Temperature Test | -40 to 150°F (-40 to 66°C ) |
| Contact Plating | 50u” over contact area |
| Material | Polycarbonate, 94V0 rated |
