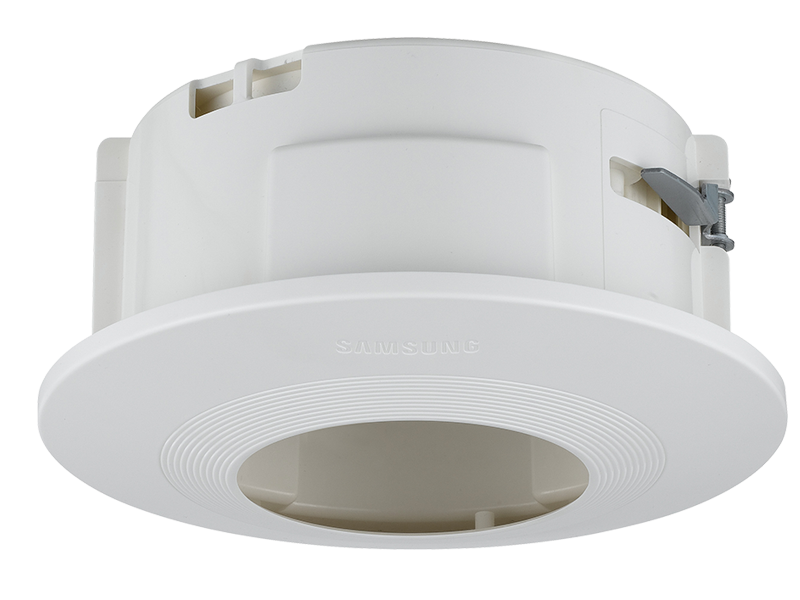

Hanwha - SHD-3000F1 - In-ceiling flush mount accessory for PNV-9080R, XNV-6080/R, XNV-8080R, XNV-L6080/L6080R
Part number:
SHD-3000F1
Price:
This low profile polycarbonate mounting solution is compatible with the camera models below: SCD-6081R, SCV-6081R, SND-7084R, SND-7084, SND-6084R, SND-6084, SND-6083, SND-5084R, SND-5084, SND-5083, SNV-7084R, SNV-7084, SNV-6084R, SNV-6084, SNV-5084, SNV-8080, SNV-8081R, PNV-9080R, XNV-6080, XNV-6080R, XNV-8080R.
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) |
| Operating Humidity | 0 ~ 90% RH |
| Materials | Body Poly carbonate Bubble N/A |
| Ingress Protection | N/A |
| Vandal Resistance | N/A |
| Vandal Resistance | N/A |
| Dimensions (WxHxD) | External Ø224.0 x 106.9mm(Ø8.82" x 4.21") Internal N/A |
| Weight | 490g (1.08 lb) |
| Input Voltage | N/A |
| Power Consumption | N/A |
| Color | Ivory White |
Name
Description
Size
Downloads
File
PTZ Housing Mounts Specifications
0.7mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.8mb
File
In-ceiling Housing Datasheet
0.6mb
