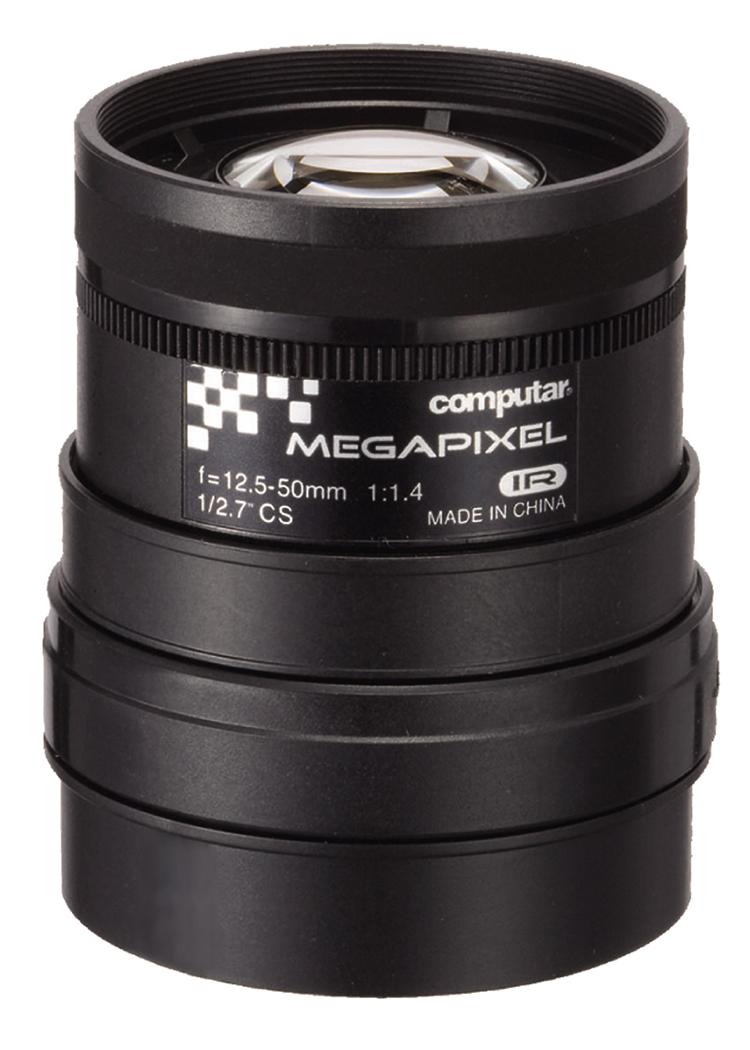

Computar - A4Z1214CS-MPIR - 3MP, 1/2.7" 12.5-50mm F1.4 Varifocal Lens, HD Series, Manual iris, IR corrected (CS-Mount)
Part number:
A4Z1214CS-MPIR
Price:
3MP, 1/2.7" 12.5-50mm F1.4 Varifocal Lens, HD Series, Manual iris, IR corrected (CS-Mount)
Features:
- 1/2.7” Format
- 3 Megapixel
- 12.5-50mm Varifocal
- Full HD Format
- Manual iris
- Precise Focus Adjustment
- New Focus Lock System
- IR Corrected Optics
- Corner Brightness
- DC Auto-iris and P-iris models also available
| Model No. | A4Z1214CS-MPIR | Effective Lens AperWre | Front | </> 21.7mm | |||
| Focal Length | 12.Smm - 50mm | Rear | </> 9.lmm | ||||
| Max.Aperture Ratio | 1:1.4 | Back Focal Length | Tele | 7.3mm | |||
| Max. Jmage Format | 3.2mm x 5.8mm(<P 6.6mm) | Wide | 11.6mm | ||||
| Operation Range | Iris | Fl.4 - F16C | Flange Baek Length | 12.Smm | |||
| Focus | I.Om - Inf. | Mount | CS-Mount | ||||
| Zoom | 12.Smm - 50mm | Filter Size | M40.5 P=0.5mm | ||||
| Control | Iris | Manual | Dimensions | ¢49 mm x 58.2 mm | |||
| Focus | Manual | Weight | 80g | ||||
| Zoom | Menual | ||||||
| Angle of View | D | 1/2.7 type (16:9) | 30.3. - 1.1· | 1/2.7 type (4:3) | 30.3" - 1.1· | 1/3type (4:3) | 27.4.- 1.0· |
| H | 26.3* .. 6.1· | 24.0• .. 6.2· | 21.7. - 5.6· | ||||
| v | 14.5" .. 3.s· | 17.8" - 4.7· | 16.2" - 4.3· | ||||
| Operatin1Temperature | -IO"C - +50"C | ||||||
