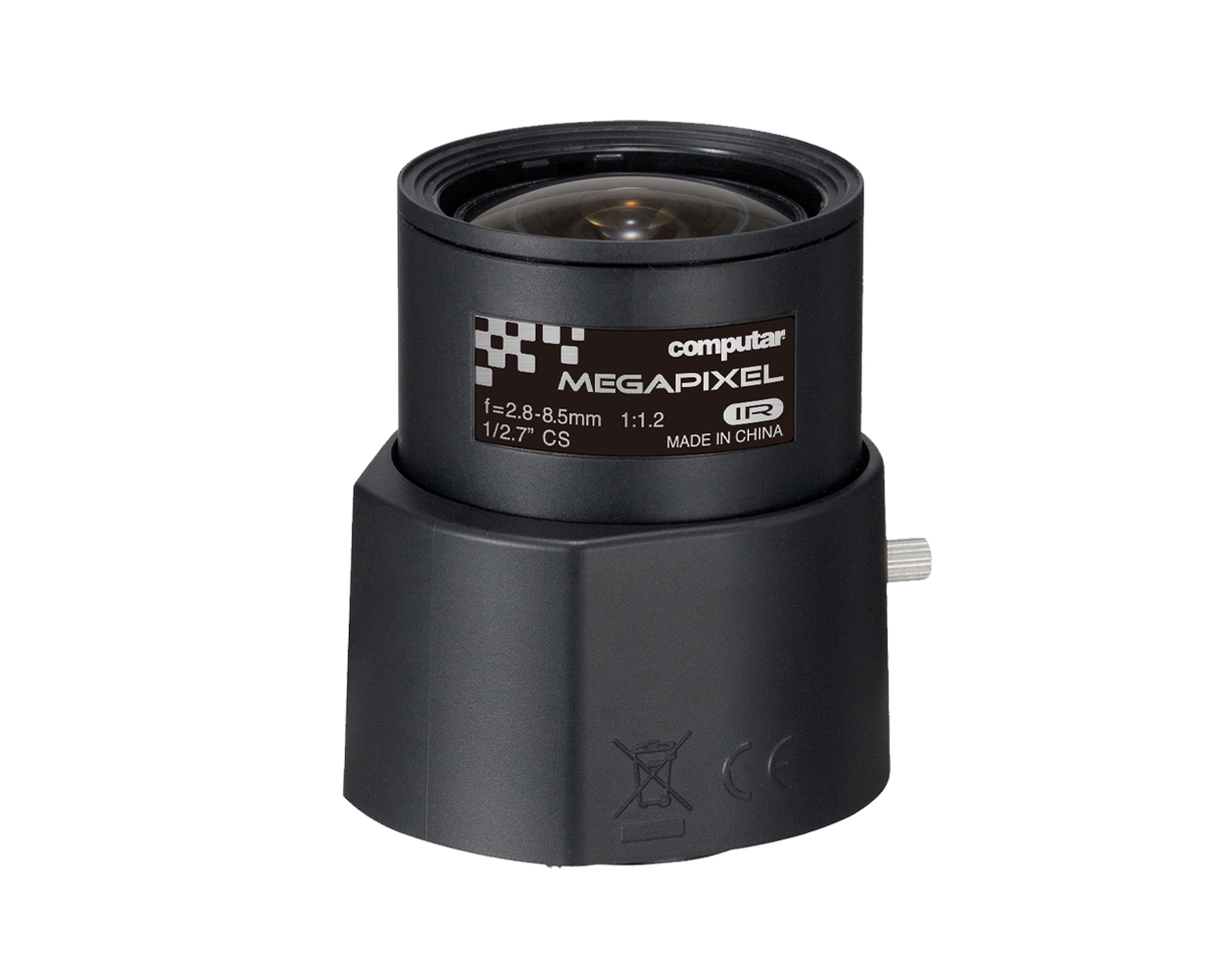

Computar - AG3Z2812FCS-MPWIR - 5MP, 1/2.7" 2.8-8.5mm F1.2 Varifocal lens, HD Series DC Auto-iris, IR corrected (CS-Mount)
Part number:
AG3Z2812FCS-MPWIR
Price:
1/2.7" 2.8-8.5mm, f1.2, DC iris, 5 megapixel, CS-mount.
Features:
- 1/2.7” Format
- 5 Megapixel
- 2.8-8.5mm Varifocal
- Full HD Format
- DC Auto Iris
- Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
- Manual Iris and P-iris models also available
| Model No. | AG3Z2812FCS-MPWIR | Effective Lens Aperture | Front | φ24.8mm | |||
| Focal Length | 2.8mm ‐ 8.5mm | Rear | φ8.4mm | ||||
| Max. Aperture Ratio | 1:1.2 | Back Focal Length | Tele | 7.3mm | |||
| Max. Image Format | 3.2mm x 5.8mm(φ6.6mm） | Wide | 7.3mm | ||||
| Operation Range | Iris | F1.2 ‐ F360C | Flange Back Length | 12.5mm | |||
| Focus | 0.5m ‐ lnf. | Mount | CS‐Mount | ||||
| Zoom | 2.8mm ‐ 8.5mm | Filter Size | - | ||||
| Control | Iris | DC Auto Iris | Dimensions | φ40 mm× 49 mm× 59 mm | |||
| Focus | Manual | Weight | 67g | ||||
| Zoom | Manual | ||||||
| Angle of View | D | 1/2.7 type | 150.4°‐ 47.1° | 1/3 type | 130.4°‐ 42.8° | 1/4 type | 92.1°- 32.0° |
| H | 124.7°‐ 41.3° | 99.1°‐ 34.1° | 72.3°- 25.6° | ||||
| V | 63.9°‐ 22.7° | 72.3°‐ 25.6° | 53.5°- 19.1° | ||||
| Coil | Drive | 190Ω/20℃ | |||||
| Control | 1310Ω/20℃ | ||||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
