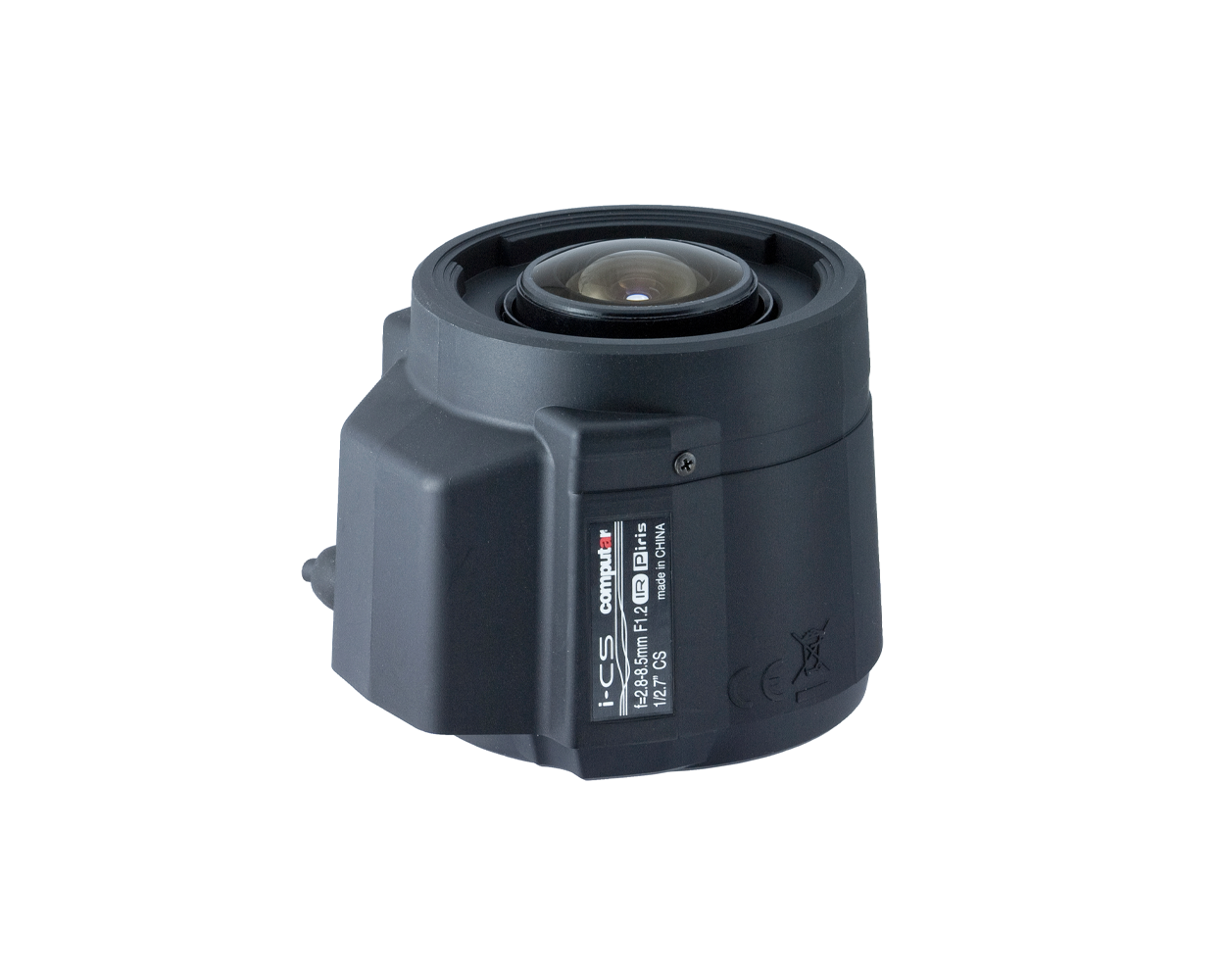

Computar - AG3Z2812TCS-MPWIR - 1/2.7" 2.8-10mm, f1.2, i-CS, 3 megapixel, CS-mount
Part number:
AG3Z2812TCS-MPWIR
Price:
The AG3Z2812TCS-MPWIR intelligent i-CS lens features open protocol technology, allowing it to directly exchange information with the new high-end fixed cameras. The i-CS lens combines high-performance optics with quick & easy installation and intuitive configuration.
Features:
- 1/2.7” Format
- Capable of 3 Megapixel sensor
- 2.8-8.5mm Varifocal
- Full HD Format
- P-iris
- Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
- Also available 1/1.8" 3.9-10mm F1.5 and 9.0-50mm telephoto
| Model No. | AG3Z2812TCS-MPWIR | Effective Lens Aperture | Front | φ24.8mm | |||
| Focal Length | 2.8mm ‐ 8.5mm | Rear | φ8.4mm | ||||
| Max. Aperture Ratio | 1:1.2 | Back Focal Length | Tele | 7.3mm | |||
| Max. Image Format | 3.2mm x 5.8mm(φ6.6mm） | Wide | 7.3mm | ||||
| Operation Range | Iris | F1.2 ‐ F16C | Flange Back Length | 12.5mm | |||
| Focus | 0.5m ‐ lnf. | Mount | CS‐Mount | ||||
| Zoom | 2.8mm ‐ 8.5mm | Filter Size | - | ||||
| Control | Iris | Smart Control (I2C) | Dimensions | φ54.4 mm× 67.5 mm× 59 mm | |||
| Focus | Smart Control (I2C) | Weight | 103g | ||||
| Zoom | Smart Control (I2C) | ||||||
| Angle of View | D | 1/2.7 type | 150.4°‐ 47.1° | 1/3 type | 130.4°‐ 42.8° | 1/4 type | 92.1°- 32.0° |
| H | 124.7°‐ 41.3° | 99.1°‐ 34.1° | 72.3°- 25.6° | ||||
| V | 63.9°‐ 22.7° | 72.3°‐ 25.6° | 53.5°- 19.1° | ||||
| Supply Voltage | DC3.3V | Operating Temperature | -10℃ ‐ +65℃ | ||||
| Current | 450mA MAX | ||||||
