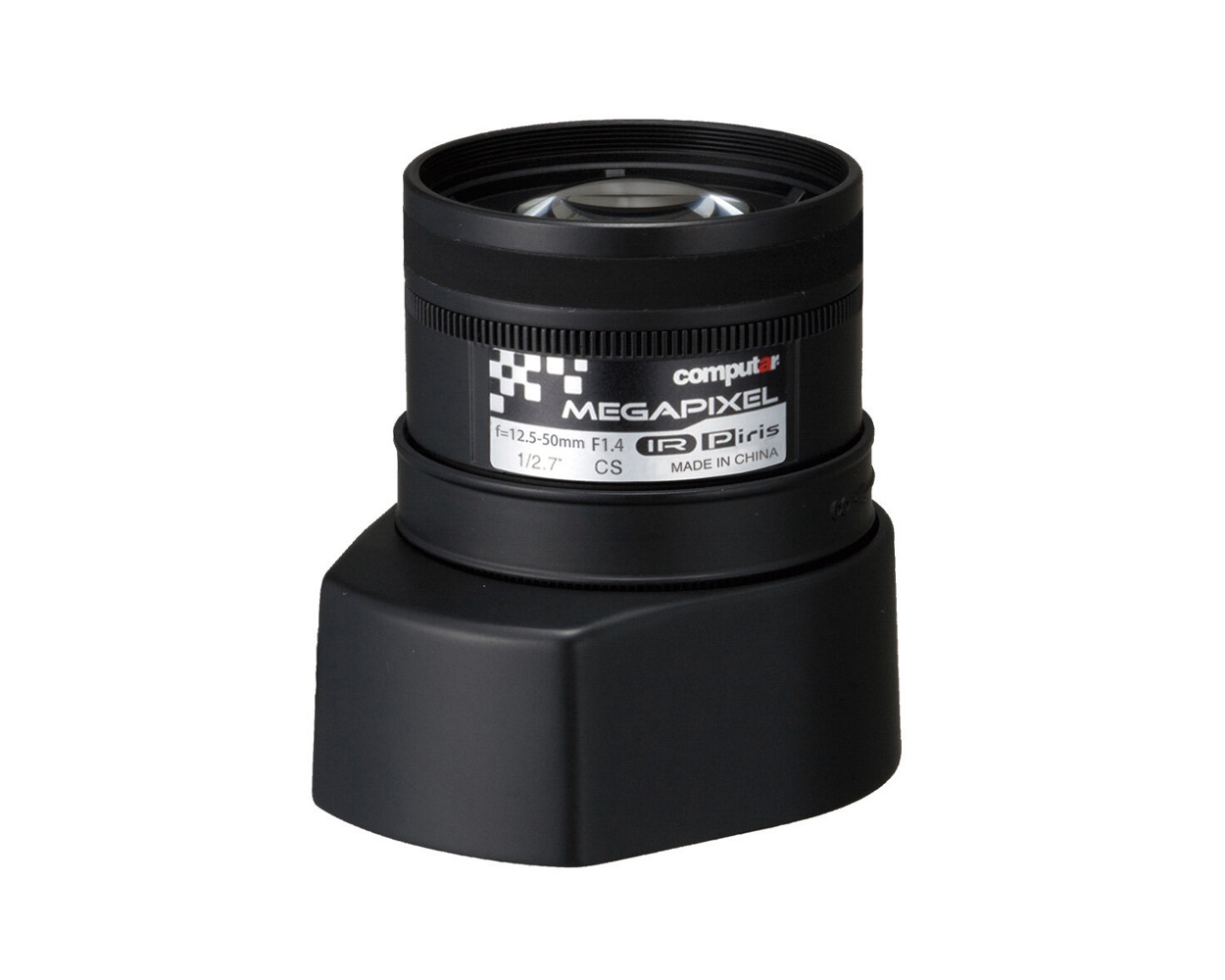

Computar - AG4Z1214KCS-MPIR - 1/2.7" 12.5-50mm f1.4 P-iris, Day/Night IR, 3 megapixel
Part number:
AG4Z1214KCS-MPIR
Price:
3MP, 1/2.7" 12.5-50mm F1.4 Varifocal Lens, HD Series, P-iris IR corrected (CS-Mount)
Features:
- 1/2.7” Format
- 3 Megapixel
- 12.5-50mm Varifocal
- Full HD Format
- P-iris (precise iris) technology
- Precise Focus Adjustment
- New Focus Lock System
- IR Corrected Optics
- Corner Brightness
- Manual iris and DC Auto iris models also available
- Compatible with Allied Vision Technology's GT1290 Series cameras (add V31 to P/N)
| Model No. | AG4Z1214KCS-MPIR | Effective Lens Aperture | Front | φ21.7mm | |||
| Focal Length | 12.5mm ‐ 50mm | Rear | φ9.1mm | ||||
| Max. Aperture Ratio | 1:1.4 | Back Focal Length | Tele | 7.3mm | |||
| Max. Image Format | 3.2mm x 5.8mm(φ6.6mm） | Wide | 11.6mm | ||||
| Operation Range | Iris | F1.4 ‐ F16C | Flange Back Length | 12.5mm | |||
| Focus | 1.0m ‐ lnf. | Mount | CS‐Mount | ||||
| Zoom | 12.5mm ‐ 50mm | Filter Size | M40.5 P=0.5mm | ||||
| Control | Iris | Stepping Motor | Dimensions | φ46 mm x 60mm x 58.2 mm | |||
| Focus | Manual | Weight | 81g | ||||
| Zoom | Manual | ||||||
| Angle of View | D | 1/2.7 type (16:9) | 30.3°‐ 7.7° | 1/2.7 type (4:3) | 30.3°‐ 7.7° | 1/3 type (4:3) | 27.4°- 7.0° |
| H | 26.3°‐ 6.7° | 24.0°‐ 6.2° | 21.7°- 5.6° | ||||
| V | 14.5°‐ 3.8° | 17.8°‐ 4.7° | 16.2°- 4.3° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
