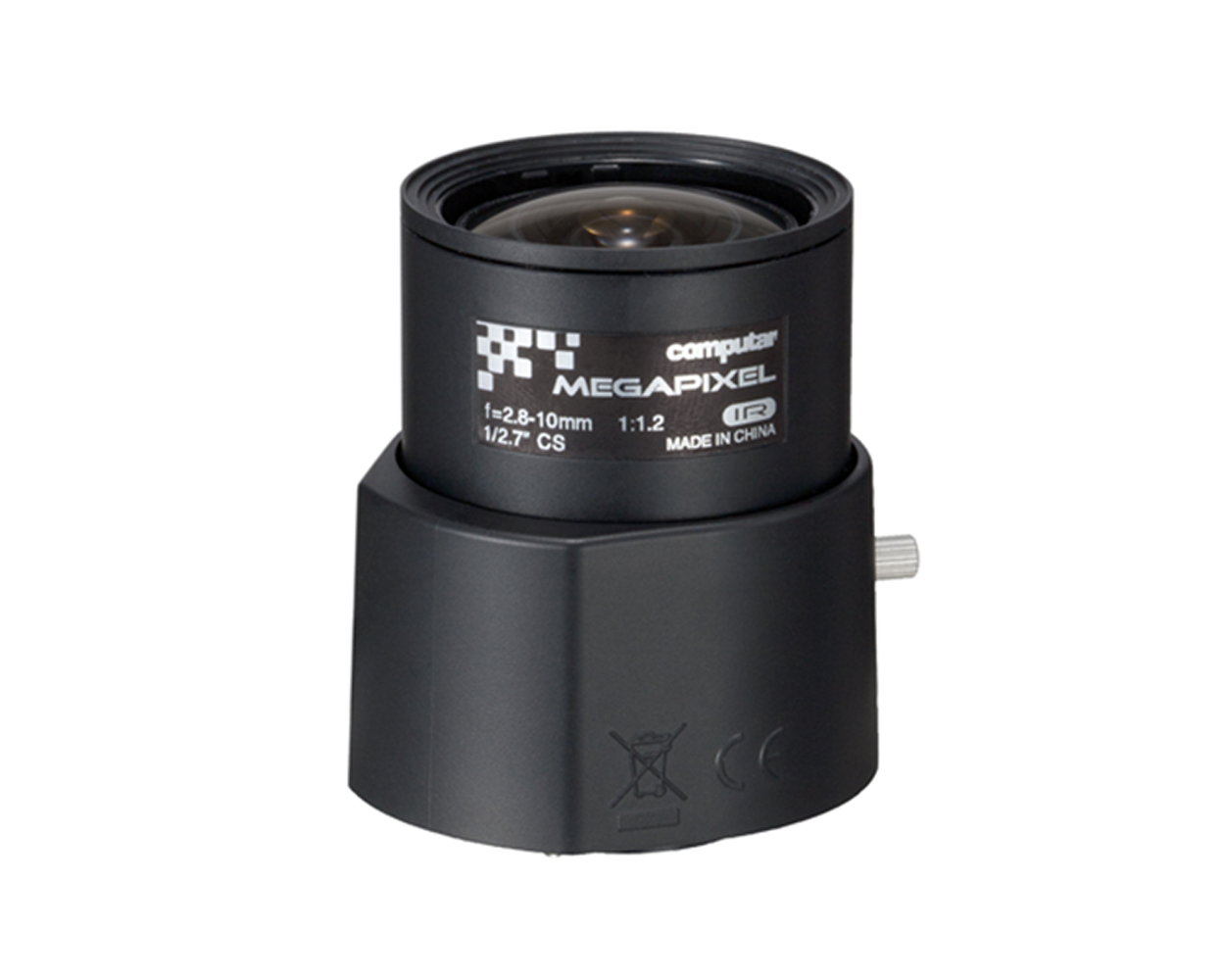

Computar - AG4Z2812FCS-MPIR - 3MP, 1/2.7" 2.8-10mm F1.2 Varifocal Lens, HD Series, DC Auto-iris IR corrected (CS-Mount)
Part number:
AG4Z2812FCS-MPIR
Price:
1/2.7" 2.8-10mm, f1.2, DC iris, Day/Night IR, 3 megapixel, CS-mount.
Features:
- 1/2.7” Format
- 3 Megapixel
- 2.8-10mm Varifocal
- Full HD Format
- DC Auto iris
- Precise Focus Adjustment
- New Focus Lock System
- IR Corrected Optics
- Corner Brightness
- P-iris model also available
| Model No. | AG4Z2812FCS-MPIR | Effective Lens Aperture | Front | φ27.0mm | |||
| Focal Length | 2.8mm ‐ 10mm | Rear | φ9.7mm | ||||
| Max. Aperture Ratio | 1:1.2 | Back Focal Length | Tele | 7.3mm | |||
| Max. Image Format | 3.2mm x 5.8mm(φ6.6mm） | Wide | 7.3mm | ||||
| Operation Range | Iris | F1.2 ‐ F360C | Flange Back Length | 12.5mm | |||
| Focus | 0.5m ‐ lnf. | Mount | CS‐Mount | ||||
| Zoom | 2.8mm ‐ 10mm | Filter Size | - | ||||
| Control | Iris | DC Auto Iris | Dimensions | φ40 mm× 49 mm× 59 mm | |||
| Focus | Manual | Weight | 66g | ||||
| Zoom | Manual | ||||||
| Angle of View | D | 1/2.7 type | 154.0°‐ 39.0° | 1/3 type | 133.5°‐ 35.5° | 1/4 type | 94.1°- 26.6° |
| H | 127.6°‐ 34.3° | 101.3°‐ 28.4° | 73.7°- 21.3° | ||||
| V | 65.0°‐ 18.9° | 73.7°‐ 21.3° | 54.4°- 16.0° | ||||
| Coil | Drive | 190Ω/20℃ | |||||
| Control | 855Ω/20℃ | ||||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
