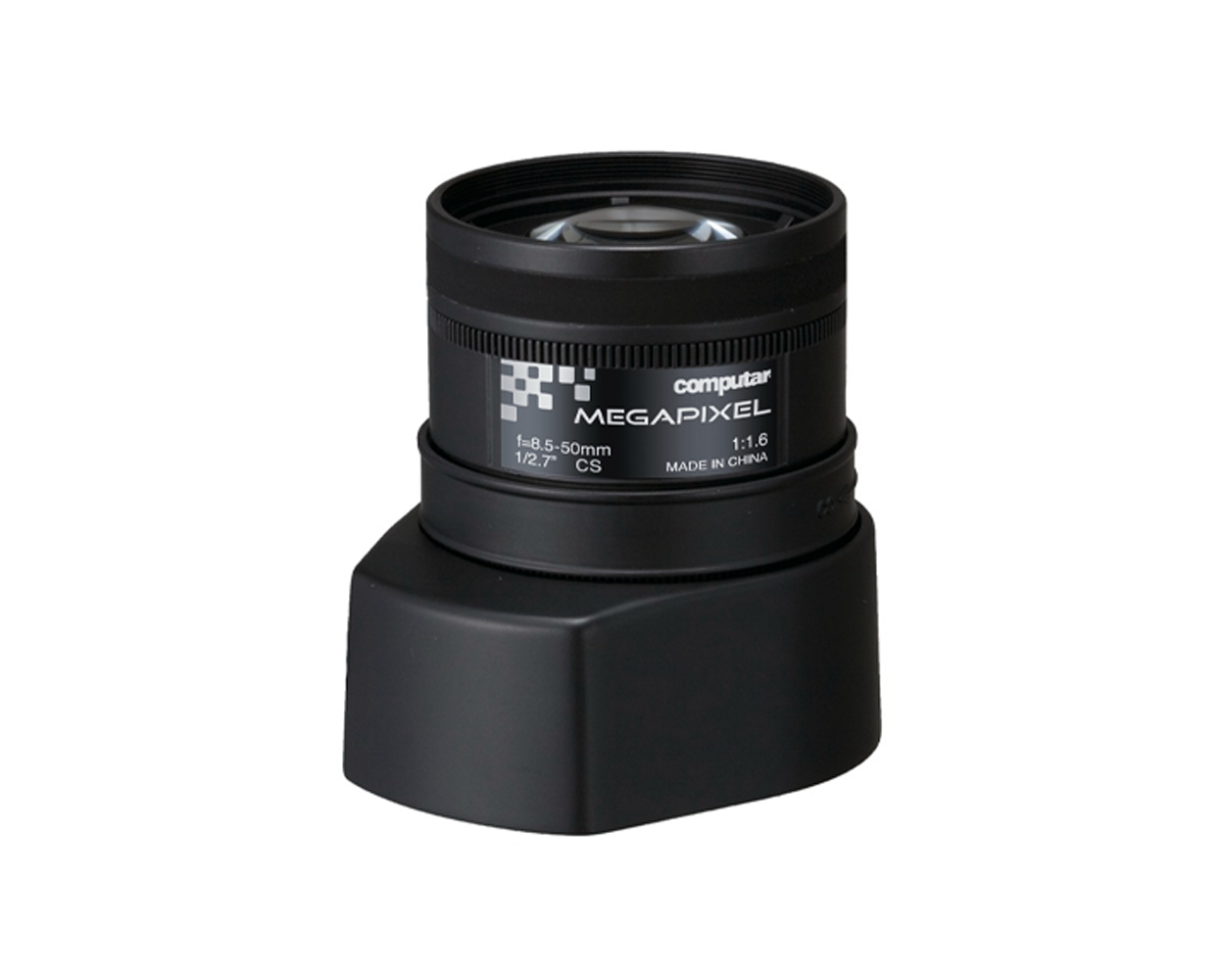

Computar - AG6Z8516FCS-MP - 3MP, 1/2.7" 8.5-50mm F1.6 Varifocal Lens, HD Series DC Auto-iris, IR corrected (CS-Mount)
Part number:
AG6Z8516FCS-MP
Price:
1/2.7" 8.5-50mm, f1.6, DC iris, 3 megapixel, CS-mount.
Features:
- 1/2.7” Format
- 3 Megapixel
- 8.5-50mm Varifocal
- Full HD Format
- DC Auto iris
- IR Corrected Optics
- Precise Focus Adjustment
- New Focus Lock System
- Corner Brightness
- Manual Iris and P-iris models also available
| Model No. | AG6Z8516FCS-MP | Effective Lens Aperture | Front | φ21.7mm | |||
| Focal Length | 8.5mm ‐ 50mm | Rear | φ9.8mm | ||||
| Max. Aperture Ratio | 1:1.6 | Back Focal Length | Tele | 9.4mm | |||
| Max. Image Format | 3.2mm x 5.8mm(φ6.6mm） | Wide | 10.7mm | ||||
| Operation Range | Iris | F1.6 ‐ F360C | Flange Back Length | 12.5mm | |||
| Focus | 1.0m ‐ lnf. | Mount | CS‐Mount | ||||
| Zoom | 8.5mm ‐ 50mm | Filter Size | M40.5 P=0.5mm | ||||
| Control | Iris | DC Auto Iris | Dimensions | φ46 mm x 60mm x 58.2 mm | |||
| Focus | Manual | Weight | 80g | ||||
| Zoom | Manual | ||||||
| Angle of View | D | 1/2.7 type (16:9) | 43.7°‐ 7.7° | 1/2.7 type (4:3) | 43.7°‐ 7.7° | 1/3 type (4:3) | 39.7°- 7.1° |
| H | 38.0°‐ 6.8° | 34.8°‐ 6.2° | 31.6°- 5.7° | ||||
| V | 21.3°‐ 3.9° | 26.0°‐ 4.7° | 23.7°- 4.3° | ||||
| Coil | Drive | 190Ω/20℃ | |||||
| Control | 1310Ω/20℃ | ||||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
