Computar - CMP-H3Z4518CS-MPIR - CCTV camera lens with CS mount

Product Overview

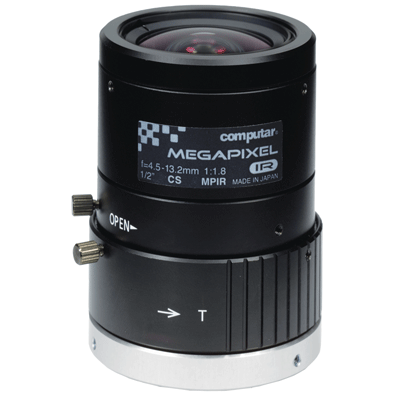

The Computar H3Z4518CS-MPIR is a 1/2" CS-mount CCTV camera lens designed for megapixel surveillance applications. With a 4.5-13.2mm manual zoom range, IR-compatible optical design, and F1.8 aperture, it supports flexible scene framing and dependable day/night imaging performance.

Key Configuration

Model: Computar H3Z4518CS-MPIR; lens format: 1/2"; focal length: 4.5-13.2mm; aperture: F1.8; zoom type: manual; mount: CS-mount; optical class: megapixel IR; manufacturer: Computar.

Key Features

• 4.5-13.2mm focal length range supports adjustable surveillance framing.
• Manual zoom allows the field of view to be set for the required monitoring area.
• F1.8 aperture supports useful light-gathering performance for CCTV applications.
• Megapixel IR optical design supports clear imaging with compatible day/night cameras.
• CS-mount construction enables integration with compatible CCTV camera bodies.

Technical Context

The H3Z4518CS-MPIR is built for 1/2" format camera systems and provides a manual 4.5-13.2mm zoom range. Its megapixel IR design makes it suitable for surveillance setups where image detail and day/night focus consistency are important.

Installation Notes

Use with compatible 1/2" CS-mount CCTV cameras. During installation, adjust zoom and focus for the desired field of view, then verify image sharpness under both visible-light and IR-assisted operating conditions.
