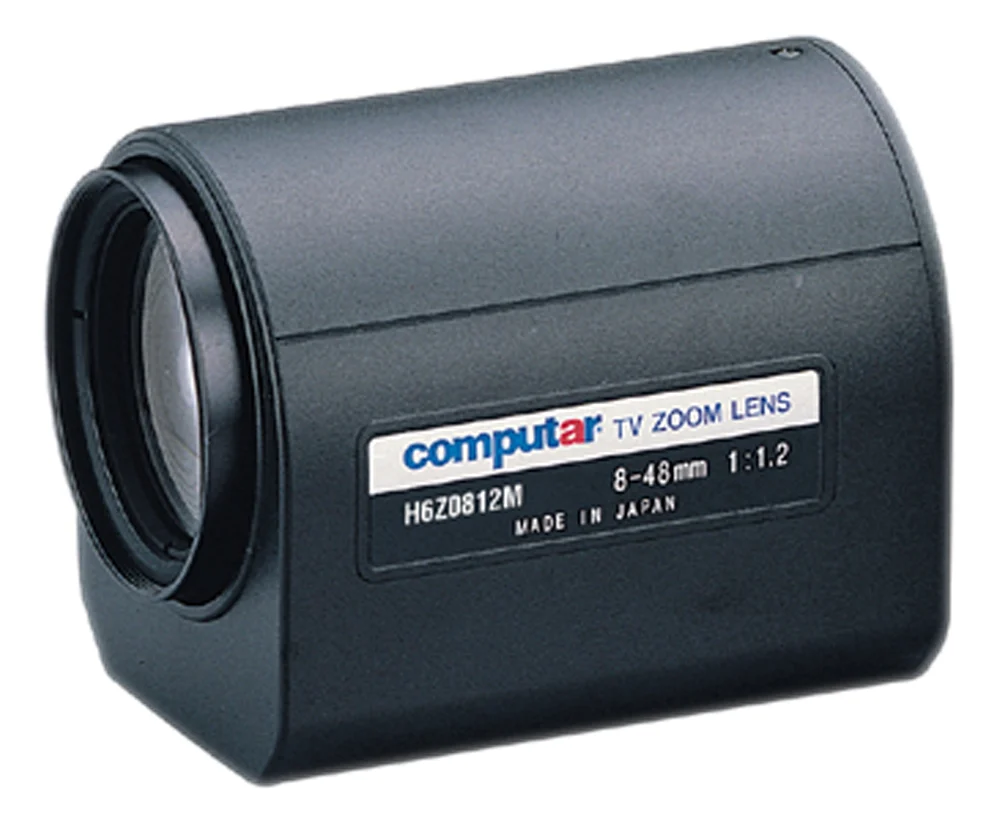

Computar - CMP-H6Z0812M - 1/2" 8-48mm F1.2 6X Motorized Zoom Lens with 3 Motors (C-Mount)

Product Overview

The Computar H6Z0812M is a 1/2" format motorized zoom lens designed for professional video surveillance, broadcasting, and imaging applications. With an 8-48mm focal length range, 6X zoom ratio, and fast F1.2 aperture, it supports flexible remote framing and strong low-light image capture.

Key Configuration

Model: Computar H6Z0812M; lens format: 1/2"; focal length: 8-48mm; zoom ratio: 6X; max aperture ratio: 1:1.2; mount: C-mount; max image format: 6.4mm x 4.8mm; application: surveillance, broadcasting, and professional imaging.

Key Features

• 8-48mm focal length range supports flexible medium-to-telephoto framing.
• 6X motorized zoom enables precise remote field-of-view adjustment.
• F1.2 aperture enhances low-light performance for clearer images in dim scenes.
• 1/2" format compatibility supports use with 1/2" and smaller camera sensors.
• C-mount design provides integration flexibility with compatible camera systems.

Technical Context

The lens provides a diagonal angle of view from 55.8° to 9.9°, a horizontal angle of view from 44.6° to 8.0°, and a vertical angle of view from 33.5° to 6.1°. This range makes it suitable for applications that require adjustable coverage from wider views to tighter detail capture.

Installation Notes

Use with compatible 1/2" or smaller-format C-mount cameras and appropriate motorized lens control hardware. After installation, verify zoom operation, focus accuracy, and image sharpness across the required focal length range.
