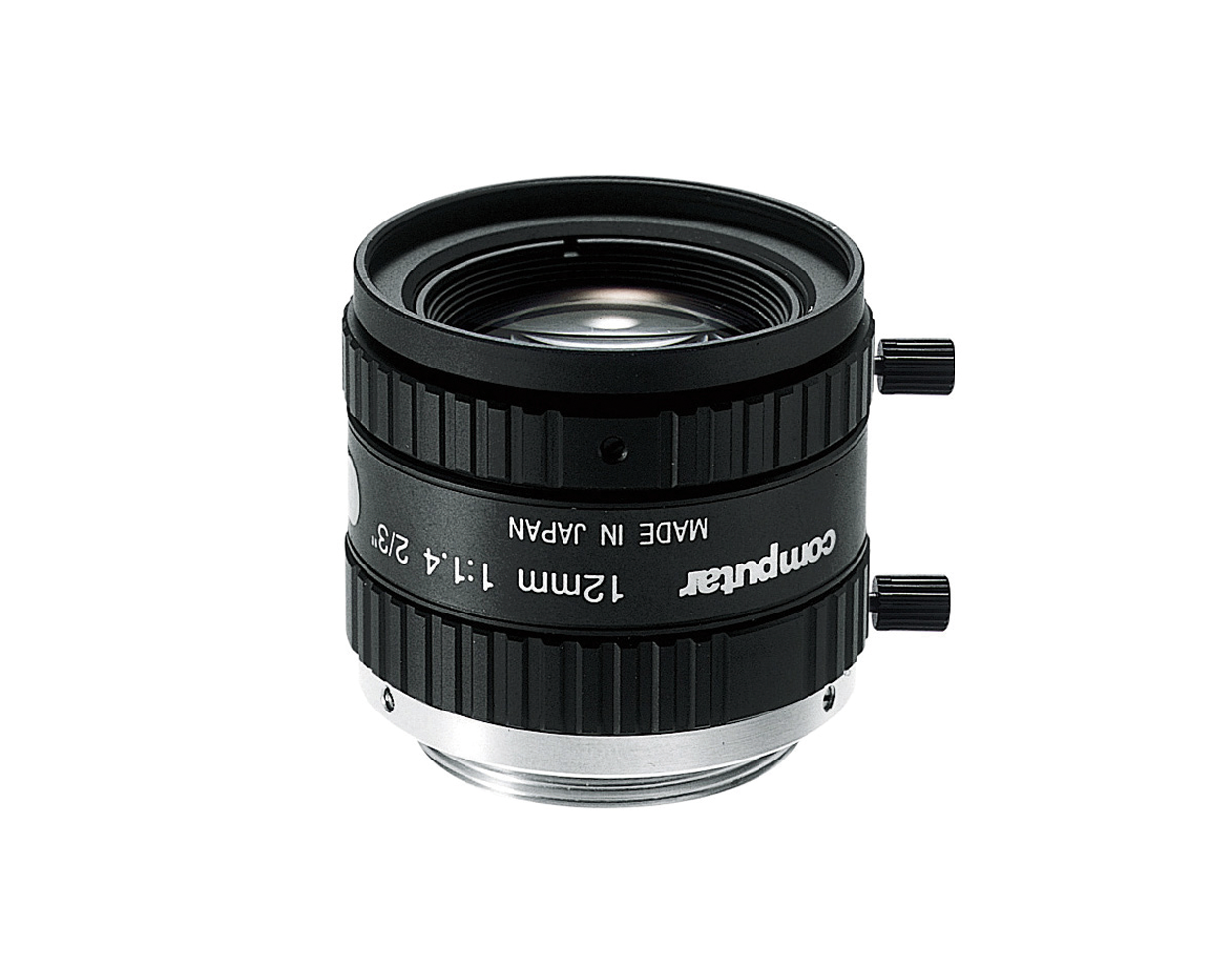

Computar - CMP-M1214-MP2 - 1.5MP, 2/3" 12mm F1.4 w/locking Iris & Focus, Machine Vision Lens (C-Mount)

Product Overview

This Computar MP2 Series machine vision lens is a 2/3" 12mm F1.4 C-mount lens designed for close-up applications in factory automation, robotics, image processing, and intelligent traffic systems. With 1-1.5MP optical performance, low distortion, and locking iris and focus controls, it supports stable, high-contrast imaging in precision vision setups.

Key Configuration

Lens series: MP2 Machine Vision; lens format: 2/3"; optical class: 1-1.5MP; focal length: 12mm; aperture: F1.4; mount: C-mount; iris type: manual iris; controls: locking iris and focus; application: factory automation and machine vision.

Key Features

• 12mm fixed focal length supports precise framing for machine vision applications.
• 1-1.5MP optical design captures the full resolution of compatible megapixel cameras.
• Low-distortion performance helps preserve measurement and inspection accuracy.
• Excellent peripheral light intensity supports consistent brightness across the image.
• Locking set screws secure focus and iris settings for stable operation.

Technical Context

The MP2 Series is engineered for close-up imaging tasks where high contrast, sharpness, compact size, and repeatable optical settings are important. It is suitable for industrial machine vision, robotics, image processing, and intelligent traffic system applications.

Installation Notes

Use with compatible 2/3" C-mount cameras. After setting the working distance and image framing, adjust focus and iris, then tighten the locking screws to help maintain stable lens settings during operation.
