Computar - CMP-M1614-MP - 2/3-inch 16mm f1.4 with Locking Iris & Focus, Megapixel, C Mount

Product Overview

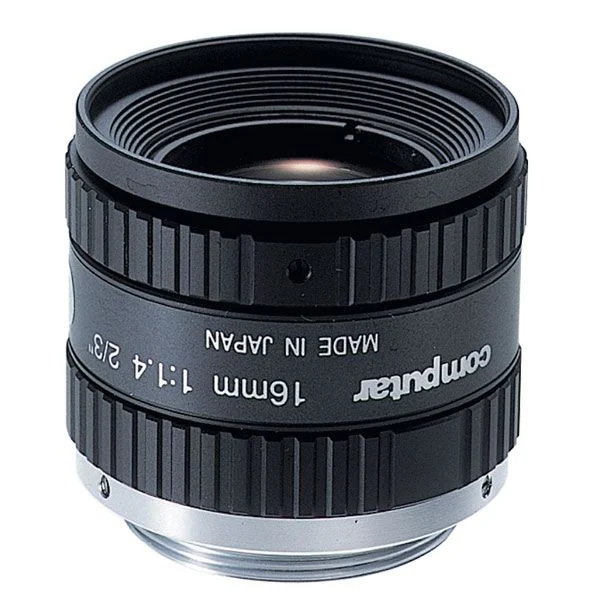

The Computar M1614-MP2 is a 2/3" 16mm C-mount megapixel lens designed for close-up imaging in factory automation and image processing applications. With an F1.4 aperture, low-distortion optical design, and locking iris and focus controls, it supports stable, high-detail image capture in compact machine vision systems.

Key Configuration

Model: Computar M1614-MP2; lens format: 2/3"; focal length: 16mm; aperture: F1.4; mount: C-mount; optical class: megapixel; controls: locking iris and focus; application: factory automation and image processing.

Key Features

• 16mm fixed focal length supports precise close-up imaging and stable scene framing.
• Megapixel optical design helps capture full-resolution detail from compatible cameras.
• Low-distortion performance supports accurate image reproduction for inspection tasks.
• High contrast and sharpness help preserve detail across the image area.
• Locking set screws secure focus and iris adjustments for dependable operation.

Technical Context

The M1614-MP2 is built for machine vision environments where repeatable focus, strong image clarity, and controlled optical settings are important. Its compact design makes it suitable for systems with limited installation space.

Installation Notes

Use with compatible 2/3" C-mount megapixel cameras. Set the required working distance, adjust iris and focus, then tighten the locking set screws to help maintain stable optical settings during operation.
