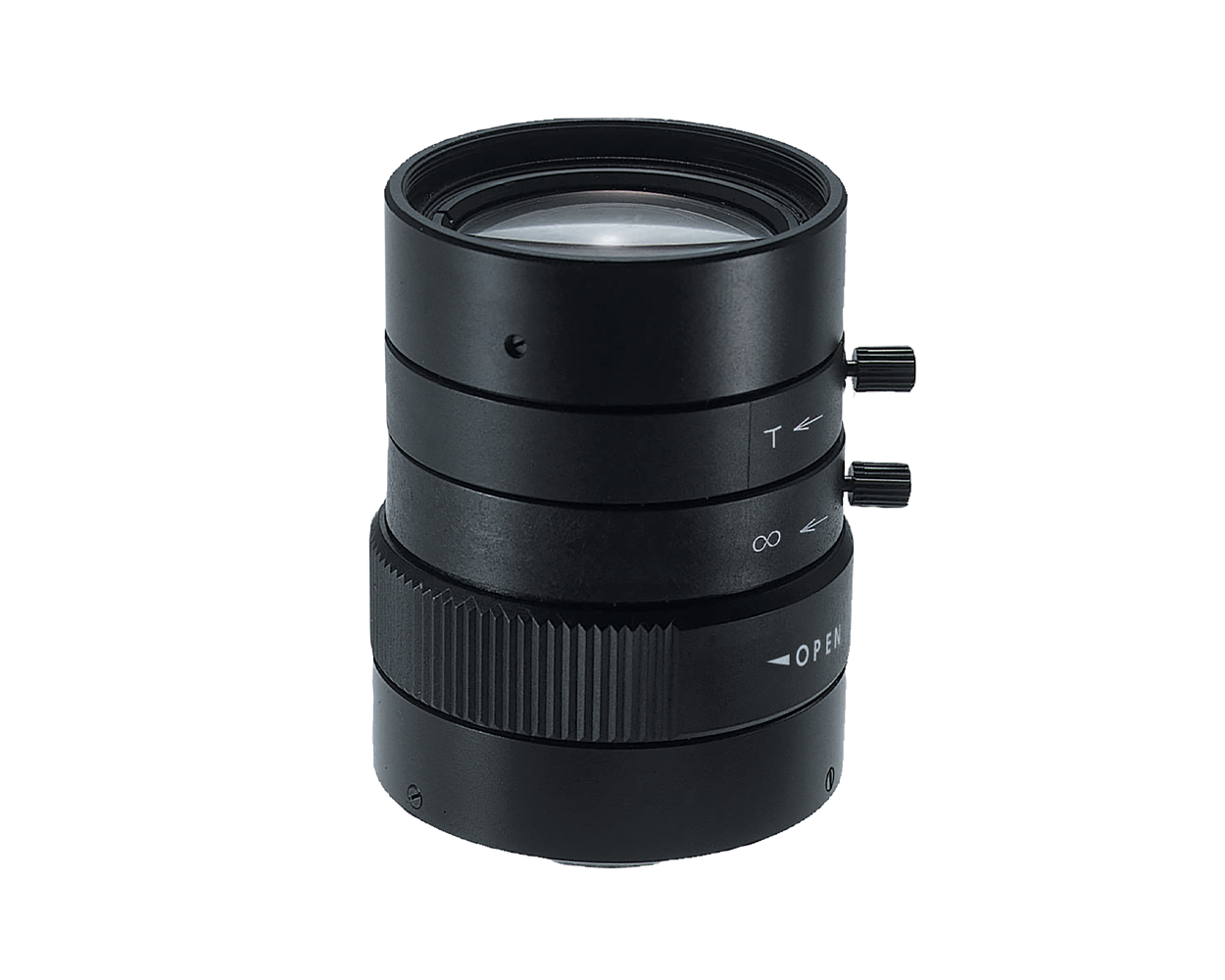

Computar - CMP-M3Z1228C-MP - 2/3-inch Megapixel C Mt 12-36mm Varifocal Manual Iris

Product Overview

The Computar M3Z1228C-MP is a 2/3" C-mount varifocal megapixel lens designed for precision close-up imaging in factory automation and image processing applications. With a 12-36mm focal length range, manual iris control, low-distortion optical performance, and locking adjustments, it supports stable and accurate machine vision setup.

Key Configuration

Model: Computar M3Z1228C-MP; lens format: 2/3"; focal length: 12-36mm; lens type: varifocal megapixel lens; iris type: manual iris; mount: C-mount; controls: locking focus and iris; application: factory automation and image processing.

Key Features

• 12-36mm varifocal range supports flexible close-up framing.
• Megapixel optical design helps capture detailed images from compatible cameras.
• Low-distortion performance supports accurate image processing and inspection.
• Strong light intensity across peripheral areas helps maintain image consistency.
• Locking focus and iris controls help preserve stable optical settings during operation.

Technical Context

The M3Z1228C-MP is built for machine vision environments where repeatable framing, controlled focus, and low optical distortion are important. Its varifocal design gives installers flexibility when tuning the field of view for different inspection distances and target sizes.

Installation Notes

Use with compatible 2/3" C-mount megapixel cameras. After mounting, set the required focal length, adjust iris and focus for the target scene, then secure the locking mechanisms to help maintain stable performance.
