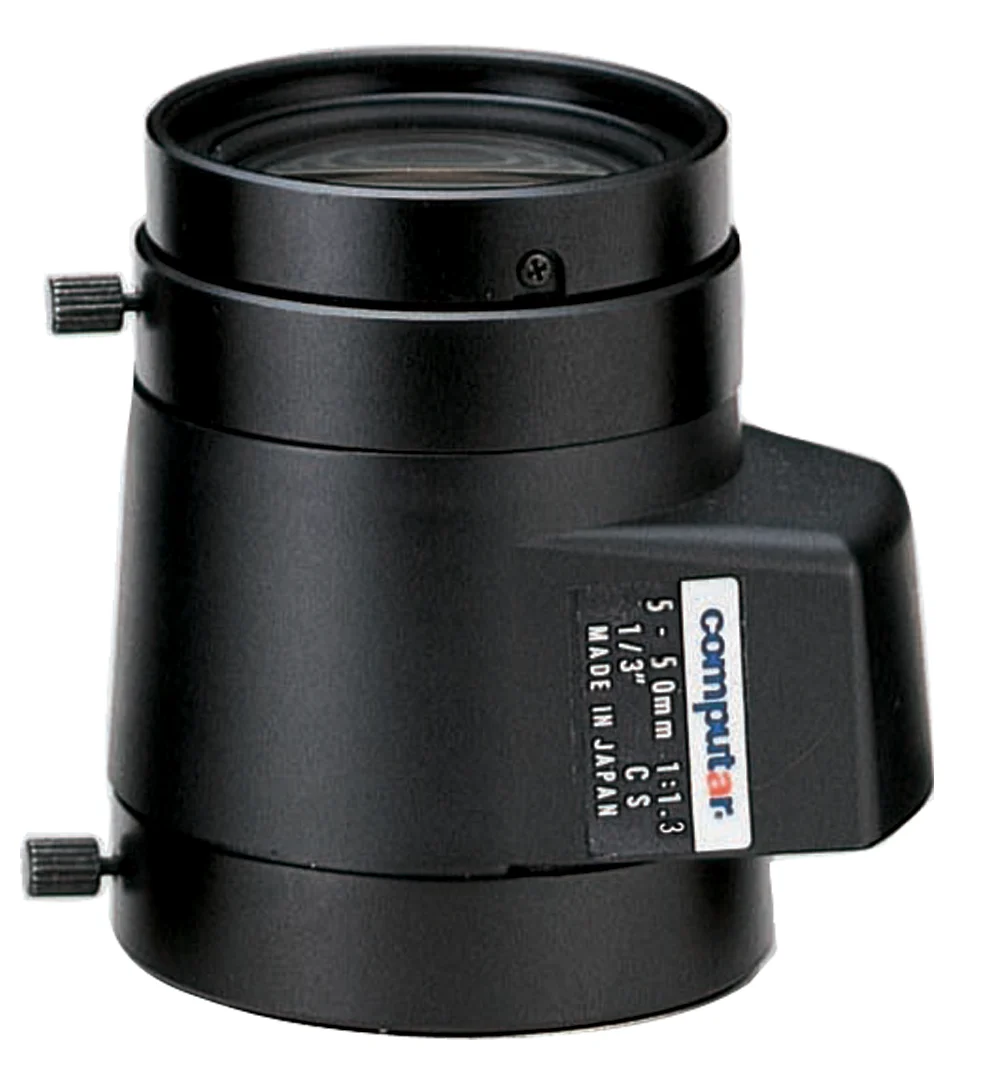

Computar - CMP-TG10Z0513FCS - 1/3-inch 5-50mm F1.3 DC Auto Iris

Product Overview

The Computar TG10Z0513FCS is a 1/3" CS-mount varifocal lens designed for surveillance applications that require long-range framing flexibility. With a 5-50mm focal length range, 10X zoom ratio, F1.3 aperture, and DC auto iris control, it supports clear imaging across changing indoor and outdoor lighting conditions.

Key Configuration

Model: Computar TG10Z0513FCS; lens format: 1/3"; focal length: 5-50mm; zoom ratio: 10X; aperture: F1.3; max aperture ratio: 1:1.3; iris type: DC auto iris; mount: CS-mount; max image format: 4.8mm x 3.6mm.

Key Features

• 5-50mm focal length range supports wide-area viewing and long-range surveillance.
• 10X zoom ratio provides flexible framing without changing lenses.
• F1.3 aperture helps capture brighter images in low-light conditions.
• DC auto iris adjusts exposure for environments with changing illumination.
• CS-mount design supports integration with compatible 1/3" cameras.

Technical Context

The lens provides a diagonal angle of view from 64° to 6.9°, a horizontal angle of view from 51.8° to 5.6°, and a vertical angle of view from 39.2° to 4.3°. This range makes it suitable for both general monitoring and tighter long-distance views.

Installation Notes

Use with compatible 1/3" CS-mount cameras that support DC auto iris control. During installation, set the desired focal length, adjust focus, and verify exposure and image sharpness under the expected lighting conditions.
