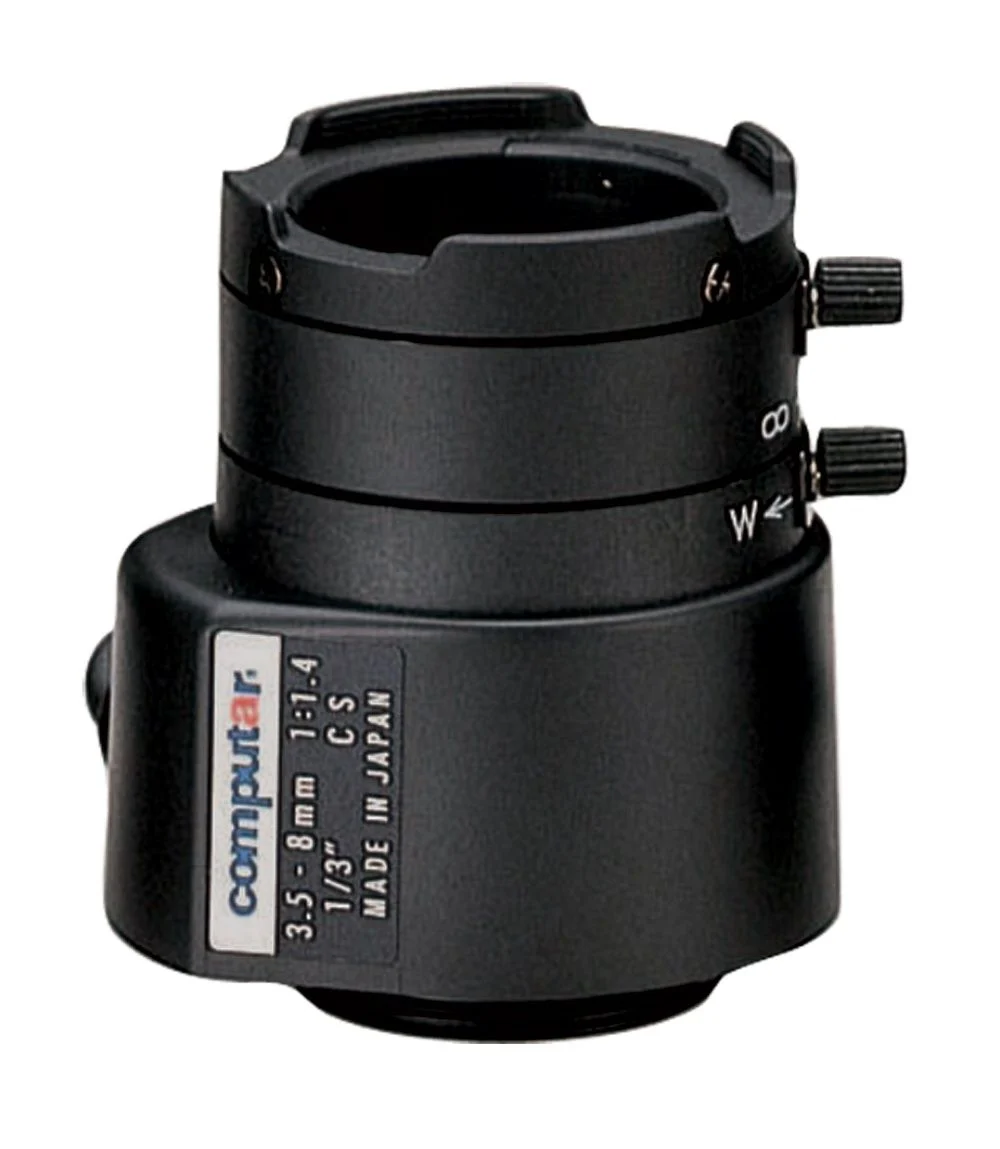

Computar - CMP-TG2Z3514FCS - 1/3" F1.4 Varifocal DC Auto Iris Lens, 3.5-8mm

Product Overview

The Computar TG2Z3514FCS is a varifocal DC auto iris lens designed for flexible CCTV and surveillance camera installations. With a 3.5-8mm focal length range and F1.4 aperture, it allows installers to fine-tune the field of view on site while maintaining reliable exposure control in changing lighting conditions.

Key Configuration

Model: Computar TG2Z3514FCS; lens type: varifocal lens; focal length: 3.5-8mm; aperture: F1.4; iris type: DC auto iris; adjustment: dial-based focal length adjustment; application: CCTV and surveillance camera installations.

Key Features

• 3.5-8mm varifocal range supports flexible field-of-view adjustment during installation.
• DC auto iris automatically adapts exposure to changing light conditions.
• F1.4 aperture helps improve image brightness in lower-light scenes.
• Adjustable lens design reduces the need to stock multiple fixed focal length lenses.
• High optical quality supports sharp, clear images for surveillance use.

Technical Context

The varifocal design lets installers adjust the viewing angle after the camera position is selected, helping avoid mismatches that can occur with fixed monofocal lenses. This makes the lens useful for projects where exact coverage requirements are determined on site.

Installation Notes

Install on a compatible camera and adjust the focal length with the lens dial to match the required scene coverage. After framing the view, set focus carefully and verify exposure behavior under the expected day and night lighting conditions.
