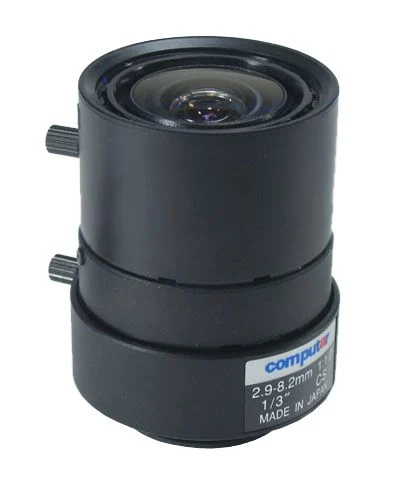

Computar - CMP-TG3Z2910FCS - 1/3-inch 2.9-8.2mm F1.0 DC Auto Iris

Product Overview

The Computar TG3Z2910FCS is an economical 1/3" CS-mount varifocal lens designed for general-purpose security applications. With a 2.9-8.2mm focal length range, F1.0-F360 iris range, and DC auto iris control, it supports flexible surveillance framing and reliable exposure in indoor or outdoor areas with changing lighting conditions.

Key Configuration

Model: Computar TG3Z2910FCS; lens format: 1/3"; focal length: 2.9-8.2mm; iris range: F1.0-F360; max aperture ratio: 1:1.0; iris type: DC auto iris; mount: CS-mount; max image format: 4.8mm x 3.6mm.

Key Features

• 2.9-8.2mm varifocal range supports flexible wide-to-medium surveillance framing.
• F1.0 aperture maximizes light transmission for low-light monitoring.
• DC auto iris automatically adjusts exposure in areas with significant lighting variation.
• CS-mount design supports straightforward installation on compatible cameras.
• All-glass optics with metal barrel and mount provide durable general-purpose security use.

Technical Context

When used with a 1/3" camera, the lens provides a horizontal angle of view from 98.3° to 35.2°, a vertical angle of view from 70.7° to 26.3°, and a diagonal angle of view from 133.9° to 44.2°. This range makes it suitable for both broad coverage and more focused monitoring.

Installation Notes

Use with compatible 1/3" CS-mount cameras that support DC auto iris operation. After mounting, adjust focal length and focus for the required coverage area, then confirm exposure response under the expected lighting conditions.
