Computar - CMP-TG4Z2813FCS-MPIR - 1/3" 2.8-12mm F1.3 DC Auto-Iris CS-Mount, Megapixel, Day/Night

Product Overview

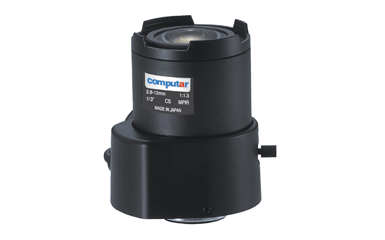

The Computar TG4Z2813FCS-MPIR is a 1/3" CS-mount CCTV camera lens designed for megapixel surveillance applications. With a 2.8-12mm manual zoom range, auto iris control, and F1.3-F360 aperture range, it provides flexible scene framing and dependable exposure handling for changing lighting conditions.

Key Configuration

Model: Computar TG4Z2813FCS-MPIR; lens format: 1/3"; focal length: 2.8-12mm; zoom type: manual; iris type: auto iris; lens mount: CS; F-stop: F1.3-F360; category: video surveillance security camera lens.

Key Features

• 2.8-12mm focal length range supports wide-area and tighter surveillance framing.
• Manual zoom allows installers to set the field of view for the target scene.
• Auto iris control helps maintain exposure as lighting conditions change.
• F1.3-F360 iris range supports use across low-light and bright environments.
• CS-mount design supports integration with compatible 1/3" CCTV cameras.

Technical Context

The TG4Z2813FCS-MPIR is designed for video surveillance installations that require adjustable focal length and automatic iris response. Its 2.8-12mm range makes it suitable for common indoor or outdoor camera positions where the final field of view must be tuned during installation.

Installation Notes

Use with compatible 1/3" CS-mount cameras that support auto iris lens control. During setup, adjust the zoom and focus for the required view, then verify exposure and image sharpness under the expected operating light levels.
