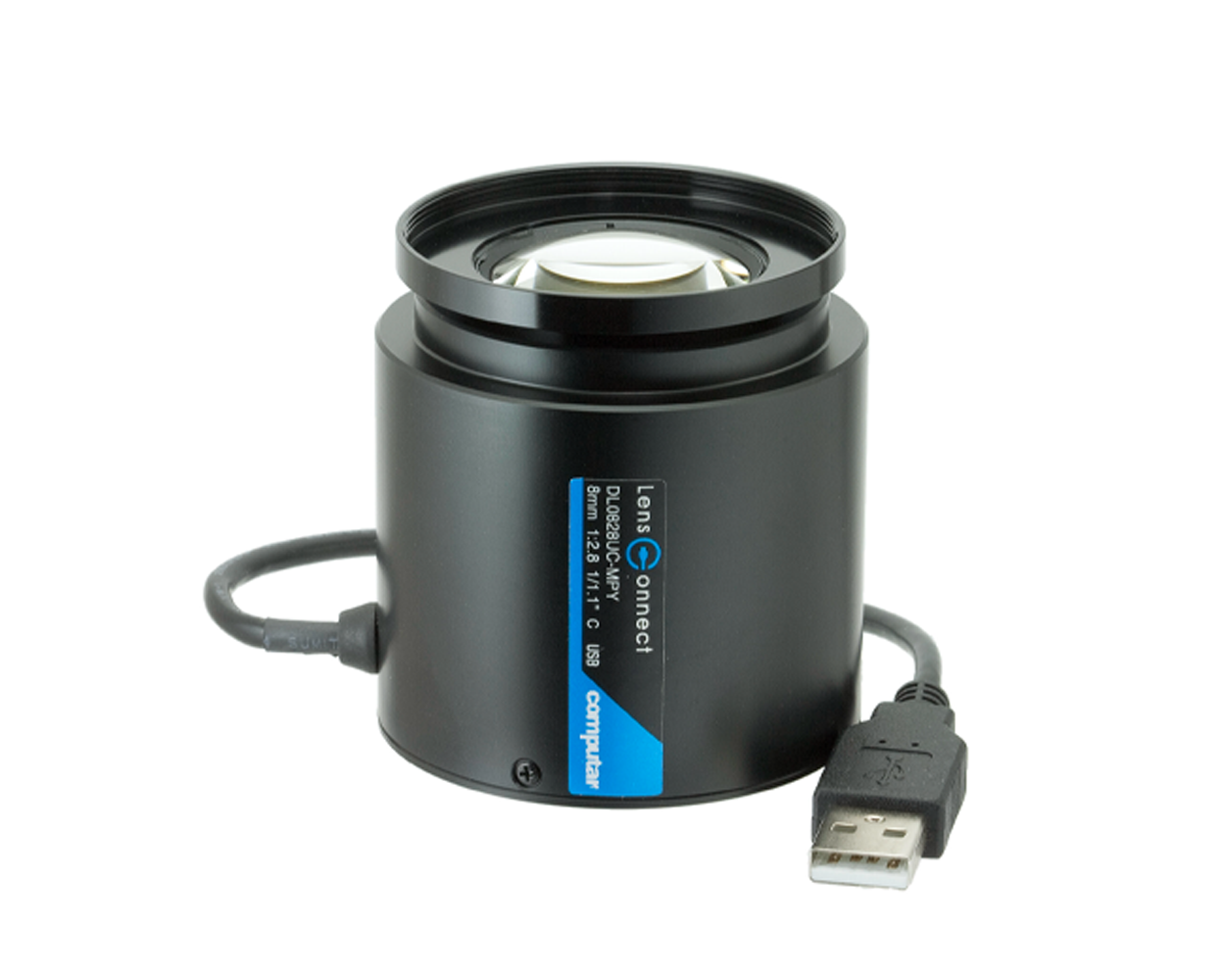

LensConnect Series of motorized lenses are engineered to enable power supply and control through USB. This innovative Plug and Play lens series allows remote adjustment of the zoom*, focus, or iris and comes with a simple set-up software compatible.
The remote control is easy to achieve - even without prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors enable precise focus control and high repeatability.
Features:
| Model No. | DL0828UC-MPY | Effective Lens Aperture | Front:φ31.2mm Rear:φ12.9mm | ||||
| Focal Length | 8mm | Back Focal Length | 13.0mm (In Air) | ||||
| Operation Range | Iris | F2.8 - F16.0 | Flange Back Length | 17.526mm (In Air) | |||
| Focus | 0.1m - Inf. | Max. Image Circle | φ14.4mm | ||||
| Object Dimension at M.O.D. | 1/1.1 Type | 155.6mm x 113.0mm | Distortion | 1/1.1 Type | 0.0% | ||
| 2/3 Type | 121.2mm x 90.2mm | 2/3 Type | -1.6% | ||||
| 1/1.8 Type | 98.6mm x 73.5mm | 1/1.8 Type | -1.7% | ||||
| Angle of View | D | 1/1.1 Type 11.22mm x 8.22mm (φ13.9mm) | 80.4° | 2/3 Type 8.8mm x 6.6mm (φ11.0mm) | 68.3° | 1/1.8 Type 7.2mm x 5.4mm (φ9.0mm) | 58.1° |
| H | 69.4° | 57.0° | 47.8° | ||||
| V | 53.8° | 44.1° | 36.6° | ||||
