LensConnect Series of motorized lenses are engineered to enable power supply and control through USB. This innovative Plug and Play lens series allows remote adjustment of the zoom*, focus, or iris and comes with a simple set-up software compatible.
The remote control is easy to achieve - even without any prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors enable precise focus control and high repeatability.
Features:

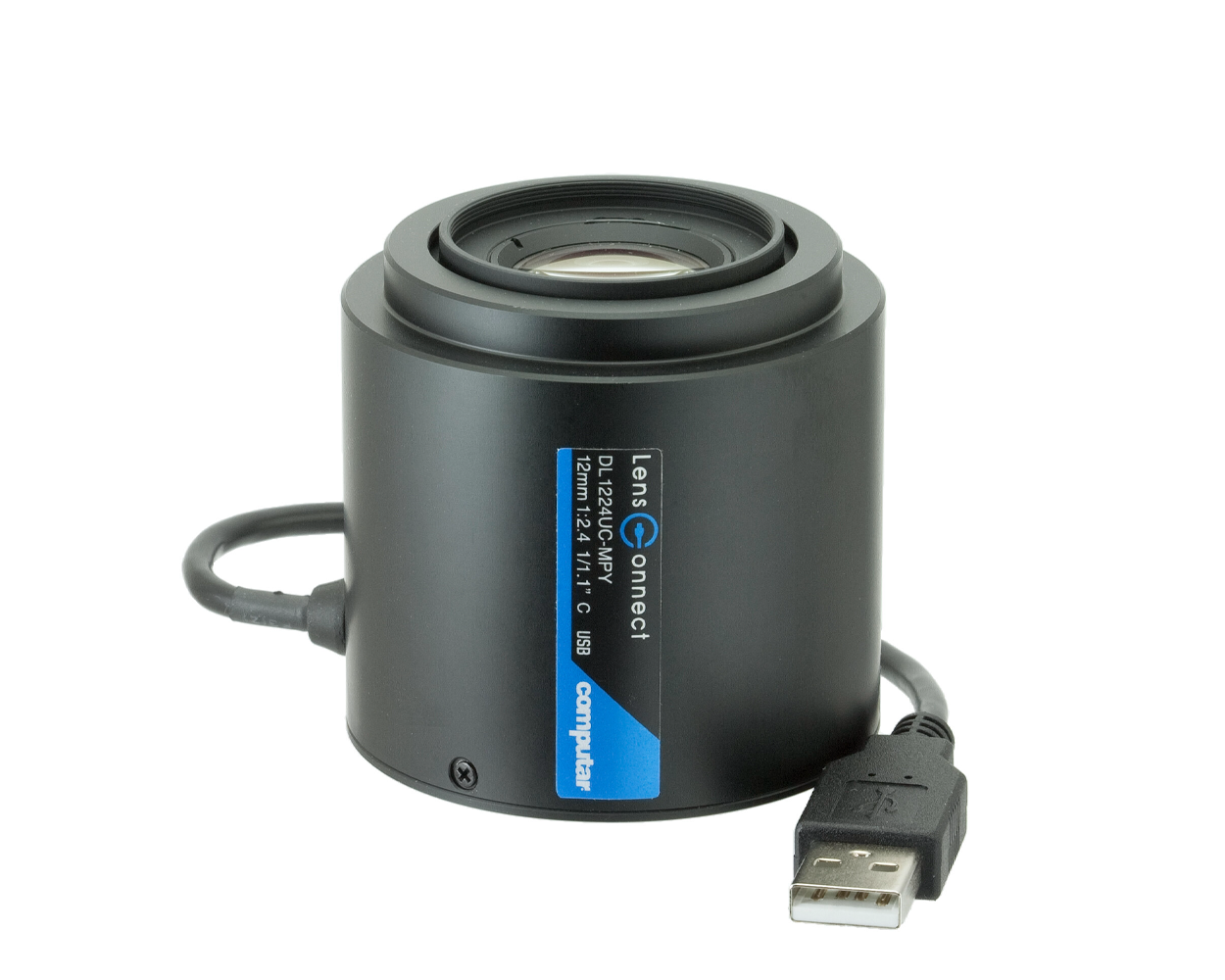

| Model No. | DL1224UC-MPY | Effective Lens Aperture | Front:φ21.8mm Rear:φ14.2mm | ||||
| Focal Length | 12mm | Back Focal Length | 14.6mm (In Air) | ||||
| Operation Range | Iris | F2.4 - F16.0 | Flange Back Length | 17.526mm (In Air) | |||
| Focus | 0.1m - Inf. | Max. Image Circle | φ14.4mm | ||||
| Object Dimension at M.O.D. | 1/1.1 Type | 100.6mm x 73.0mm | Distortion | 1/1.1 Type | -0.1% | ||
| 2/3 Type | 78.3mm x 58.4mm | 2/3 Type | -1.0% | ||||
| 1/1.8 Type | 63.8mm x 47.6mm | 1/1.8 Type | -1.0% | ||||
| Angle of View | D | 1/1.1 Type 11.22mm x 8.22mm (φ13.9mm) | 60.2° | 2/3 Type 8.8mm x 6.6mm (φ11.0mm) | 49.7° | 1/1.8 Type 7.2mm x 5.4mm (φ9.0mm) | 41.5° |
| H | 50.5° | 40.6° | 33.6° | ||||
| V | 38.1° | 31.0° | 25.5° | ||||
| Control Interface | USB2.0 | Dimensions | As per the attached drawing | |
| Power mode | Bus powerd (500mA) | Mount | C-Mount | |
| Connector | USB TypeA | Weight | 163g | |
| Operating Temperature | -20℃ - +60℃ | Tripod Screw | - | |
| Control | Iris | Motorized | Filter thread | M35.5 x P0.5mm |
| Focus | Motorized | IRCF switcher | - | |
