LensConnect Series of motorized lenses are engineered to enable power supply and control through USB. This innovative Plug and Play lens series allows remote adjustment of the zoom*, focus, or iris and comes with a simple set-up software compatible with Windows or Linux (*zoom adjustment for varifocal models only).
The remote control is easy to achieve - even without any prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors enable precise focus control and high repeatability.
Features:

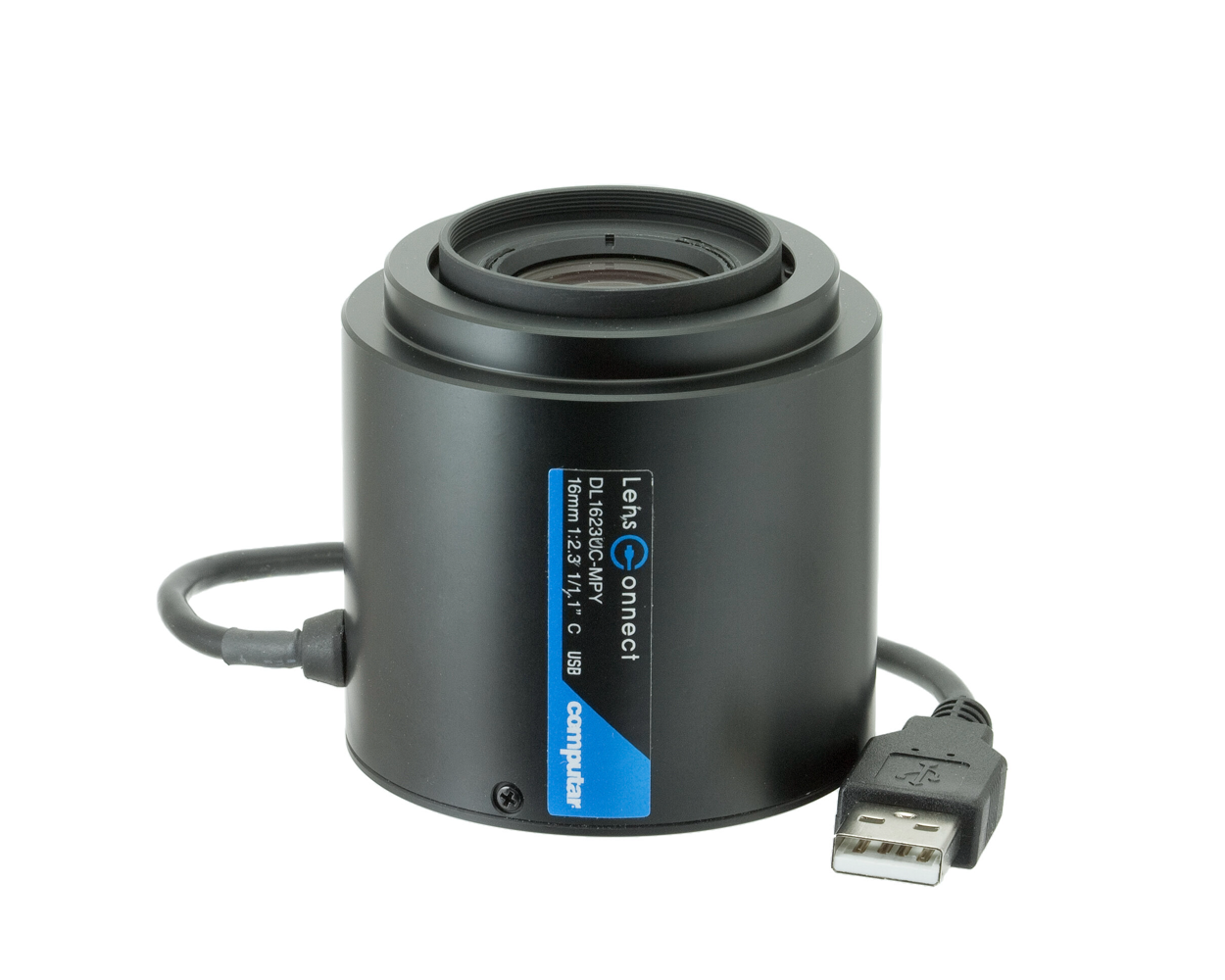

| Model No. | DL1623UC-MPY | Effective Lens Aperture | Front:φ22.8mm Rear:φ13.5mm | ||||
| Focal Length | 16mm | Back Focal Length | 14.3mm (In Air) | ||||
| Operation Range | Iris | F2.3 - F16.0 | Flange Back Length | 17.526mm (In Air) | |||
| Focus | 0.11m - Inf. | Max. Image Circle | φ14.4mm | ||||
| Object Dimension at M.O.D. | 1/1.1 Type | 81.0mm x 59.2mm | Distortion | 1/1.1 Type | 0.0% | ||
| 2/3 Type | 63.4mm x 47.4mm | 2/3 Type | -0.7% | ||||
| 1/1.8 Type | 51.8mm x 38.7mm | 1/1.8 Type | -0.7% | ||||
| Angle of View | D | 1/1.1 Type 11.22mm x 8.22mm (φ13.9mm) | 47.0° | 2/3 Type 8.8mm x 6.6mm (φ11.0mm) | 38.2° | 1/1.8 Type 7.2mm x 5.4mm (φ9.0mm) | 31.6° |
| H | 38.9° | 31.0° | 25.5° | ||||
| V | 29.0° | 23.4° | 19.2° | ||||
| Control Interface | USB2.0 | Dimensions | As per the attached drawing | |
| Power mode | Bus powerd (500mA) | Mount | C-Mount | |
| Connector | USB TypeA | Weight | 173g | |
| Operating Temperature | -20℃ - +60℃ | Tripod Screw | - | |
| Control | Iris | Motorized | Filter thread | M35.5 x P0.5mm |
| Focus | Motorized | IRCF switcher | - | |
