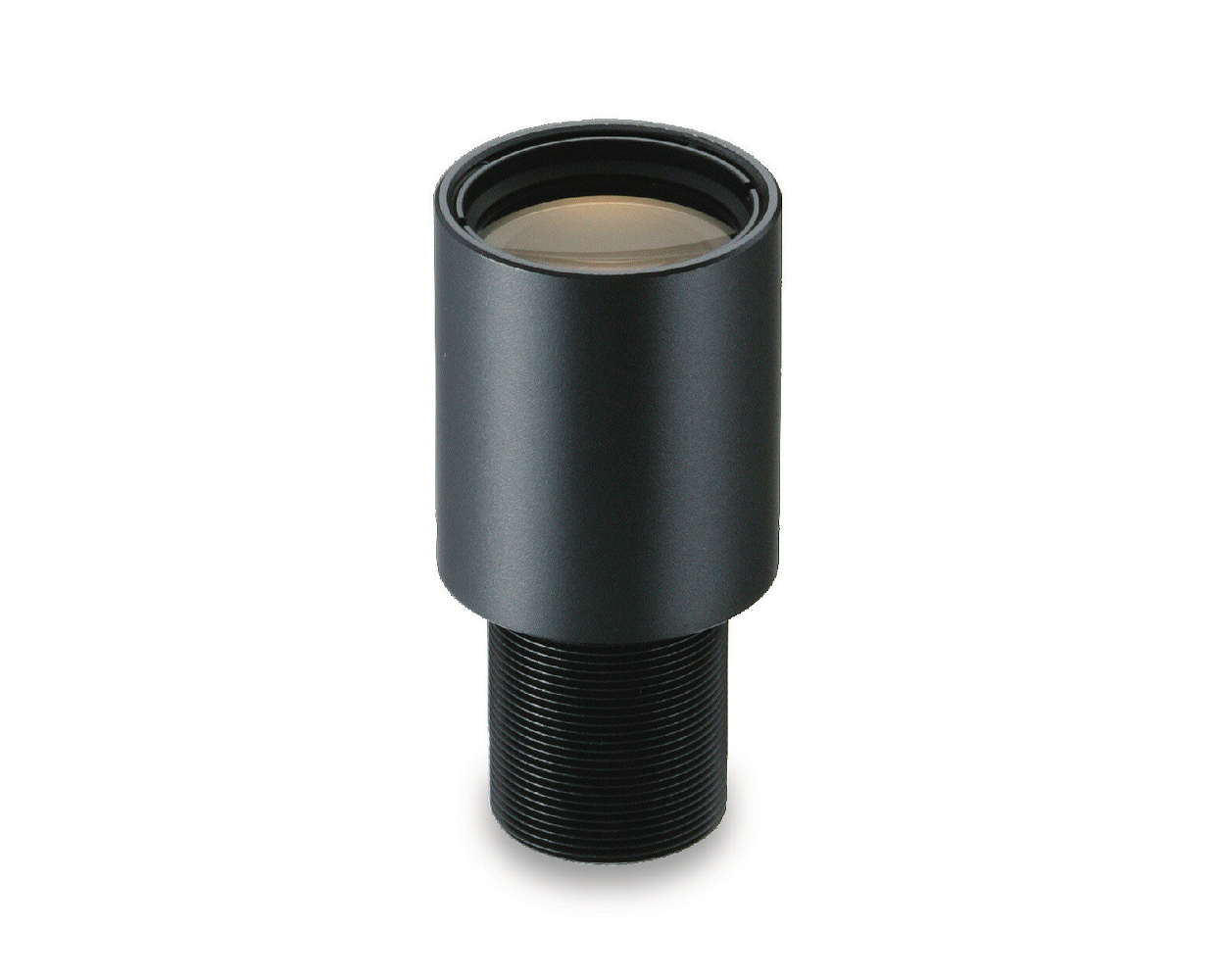

Computar - E1220KV - 1/1.8" 12mm F2.0 Board Lens, over 3MP, (S-Mount)
Part number:
E1220KV
Price:
12mm f2.0 3MP+ M12 S Mount.
Features:
- 1/1.8" Format
- 12mm Fixed Lens
- Over 3MP
- 32.1° HFOV
- M12 (S Mount)
- F2.0
| Model No. | E1220KV | Effective Lens Aperture | Front | φ13.0mm | |||
| Focal Length | 12.0mm | Rear | φ8.1mm | ||||
| Max. Aperture Ratio | 1:2.0 | Distortion | +0.04% (y=4.32) | ||||
| Max. Image Format | 6.9mm x 5.2mm(φ8.64mm） | Back Focal Length | 13.34mm | ||||
| Operation Range | Iris | ― | Flange Back Length | ― | |||
| Focus | 0.2m ‐ lnf. | Mount | M12 P=0.5mm | ||||
| Object Dimention at M.O.D. | 1/2 type | 11.1cm x 8.3cm (φ13.9) | Dimensions | φ17.0mm x 34.4mm | |||
| 1/3 type | 8.3cm x 6.2cm (φ10.4) | Weight | 12.0g | ||||
| Coating | MgF2 Single Coat (All Surfaces λ= 510nm) | ||||||
| Angle of View | D | 1/1.8 type | 39.50° | 1/2 type | 36.80° | 1/3 type | 28.06° |
| H | 32.05° | 29.84° | 22.61° | ||||
| V | 24.44° | 22.61° | 17.05° | ||||
