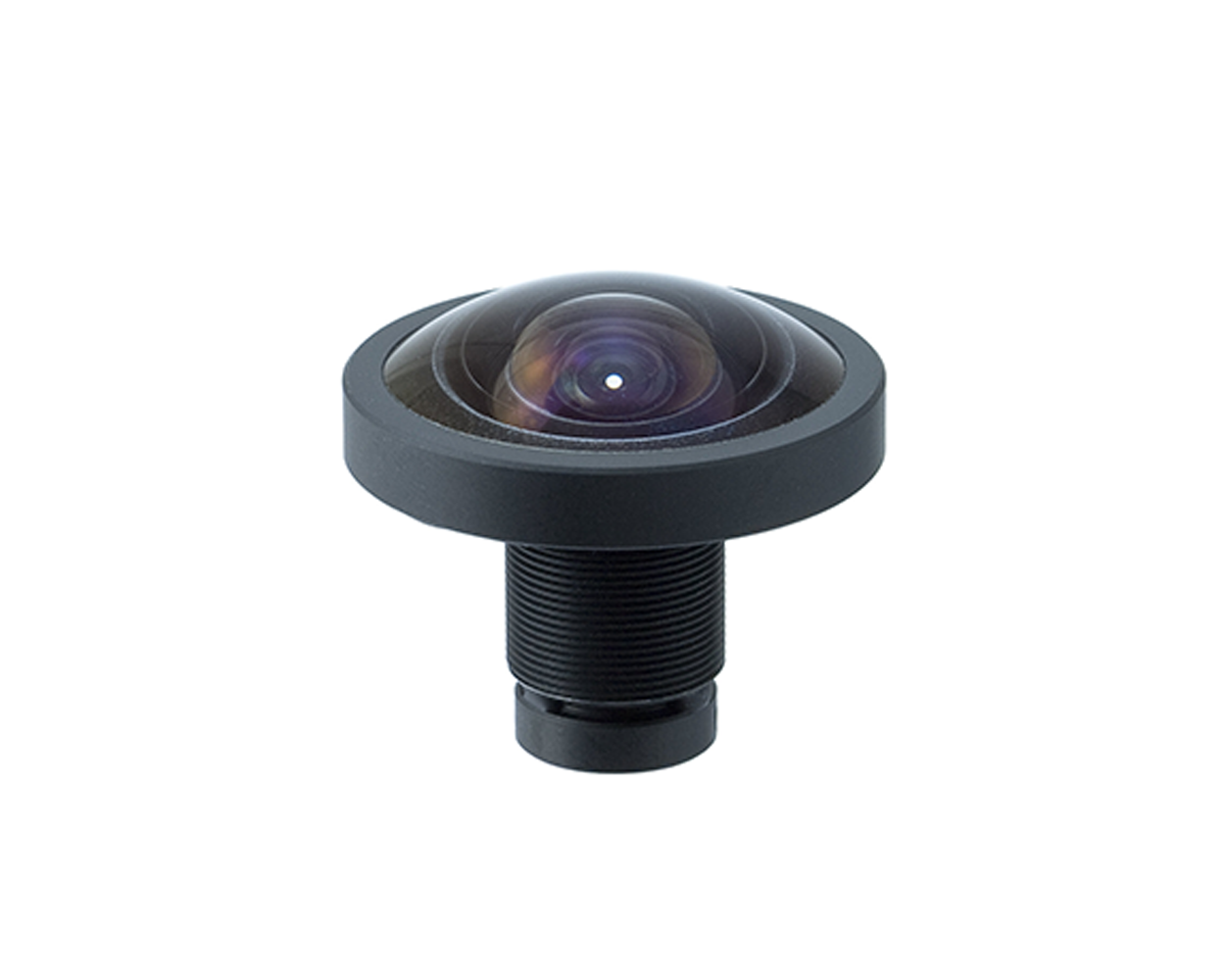

Computar - E1222KRY - 4K, 1/1.7" 1.2mm Fisheye IR Corrected Board Lens (S Mount)
Part number:
E1222KRY
Price:
1.2mm f2.2 12MP+ M12 S Mount, Fisheye, Day/Night IR corrective.
Features:
- 1/1.7" Format
- 1.2mm Fixed Lens
- 4K Fisheye (over 8 MP)
- True Day/Night
- Stereo Graphic Projection (Panomorph Optics)
- ImmerVison Enables compatible
- IR Corrected
- M12 (S Mount)
- F2.2
| Model No. | E1222KRY | Effective Lens Aperture | Front | φ 24.4mm | |||
| Focal Length | 1.2mm | Rear | φ 5.6mm | ||||
| Max. Aperture Ratio | 1 : 2.2 | Back Focal Length | 4.2mm | ||||
| Image Size at 185° | φ5.38mm | Flange Back Length | - | ||||
| Mount | M12 P=0.5mm | Dimensions | φ29.2mm x 25.7mm | ||||
| Weight | 16.3g | ||||||
| Angle of View | D | 1/1.7 type Fisheye | - | 1/3 type | - | 1/4 type | 164.2゜ |
| H | - | 171.5゜ | 139.5゜ | ||||
| V | 185.0゜ | 139.5゜ | 110.3゜ | ||||
| Operating Temperature | -20℃ ‐ +60℃ | ||||||
