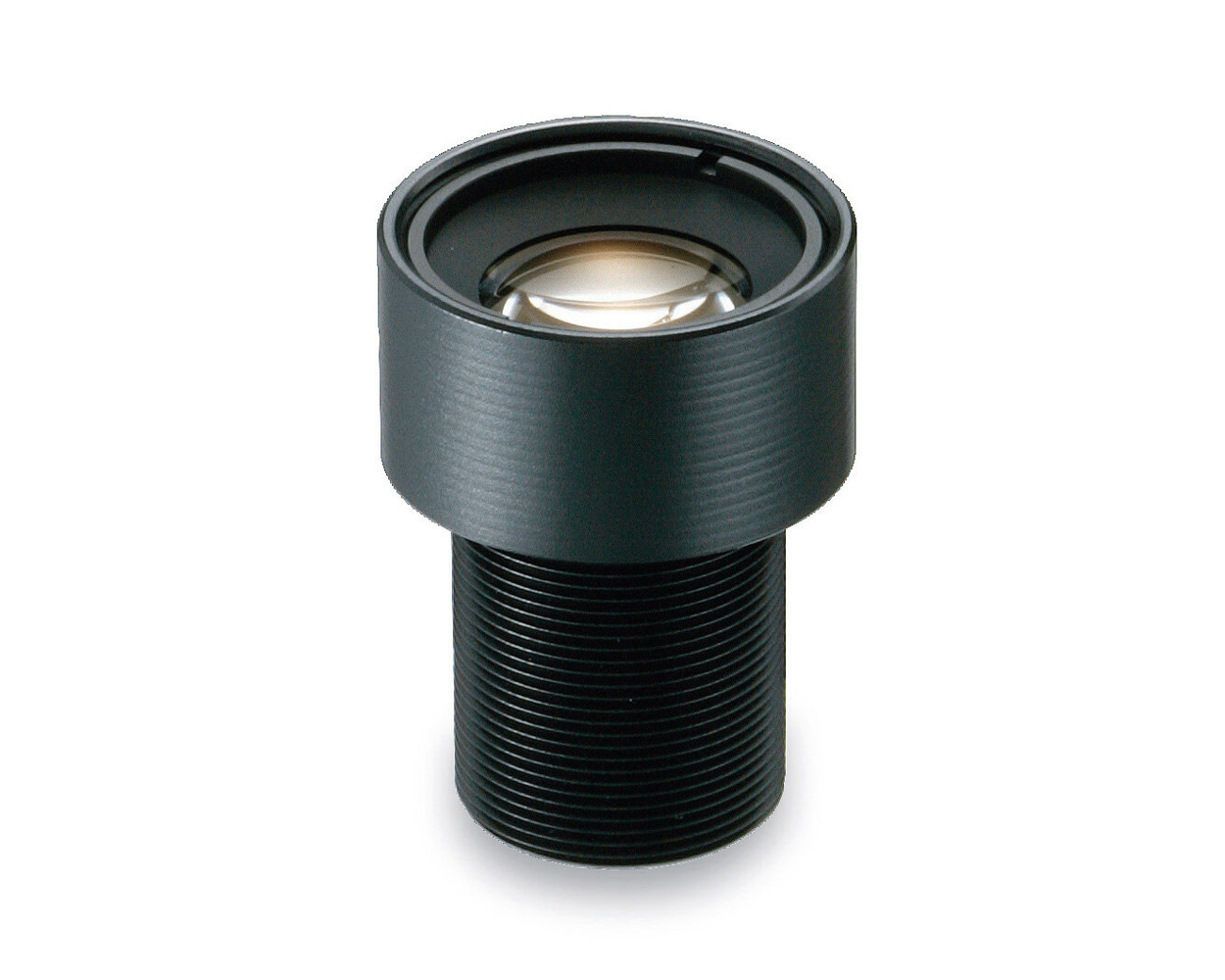

Computar - E1620KV - 1/1.8" 16mm F2.0 Board Lens, over 3MP (S Mount)
Part number:
E1620KV
Price:
16mm f2.0 3MP+ M12 S Mount.
Features:
- 1/1.8" Format
- 16mm Fixed Lens
- Over 3MP
- 24.3° HFOV
- M12 (S Mount)
- F2.0
| Model No. | E1620KV | Effective Lens Aperture | Front | φ9.7mm | |||
| Focal Length | 16.0mm | Rear | φ8.1mm | ||||
| Max. Aperture Ratio | 1:2.0 | Distortion | -0.07% (y=4.32) | ||||
| Max. Image Format | 6.9mm x 5.2mm(φ8.64mm） | Back Focal Length | 12.06mm | ||||
| Operation Range | Iris | ― | Flange Back Length | ― | |||
| Focus | 0.15m ‐ lnf. | Mount | M12 P=0.5mm | ||||
| Object Dimention at M.O.D. | 1/2 type | 5.9cm x 4.4cm (φ7.3) | Dimensions | φ17.0mm x 23.1mm | |||
| 1/3 type | 4.4cm x 3.3cm (φ5.5) | Weight | 6.0g | ||||
| Coating | MgF2 Single Coat (All Surfaces λ= 510nm) | ||||||
| Angle of View | D | 1/1.8 type | 30.02° | 1/2 type | 27.93° | 1/3 type | 21.20° |
| H | 24.26° | 22.56° | 17.04° | ||||
| V | 18.44° | 17.04° | 12.83° | ||||
