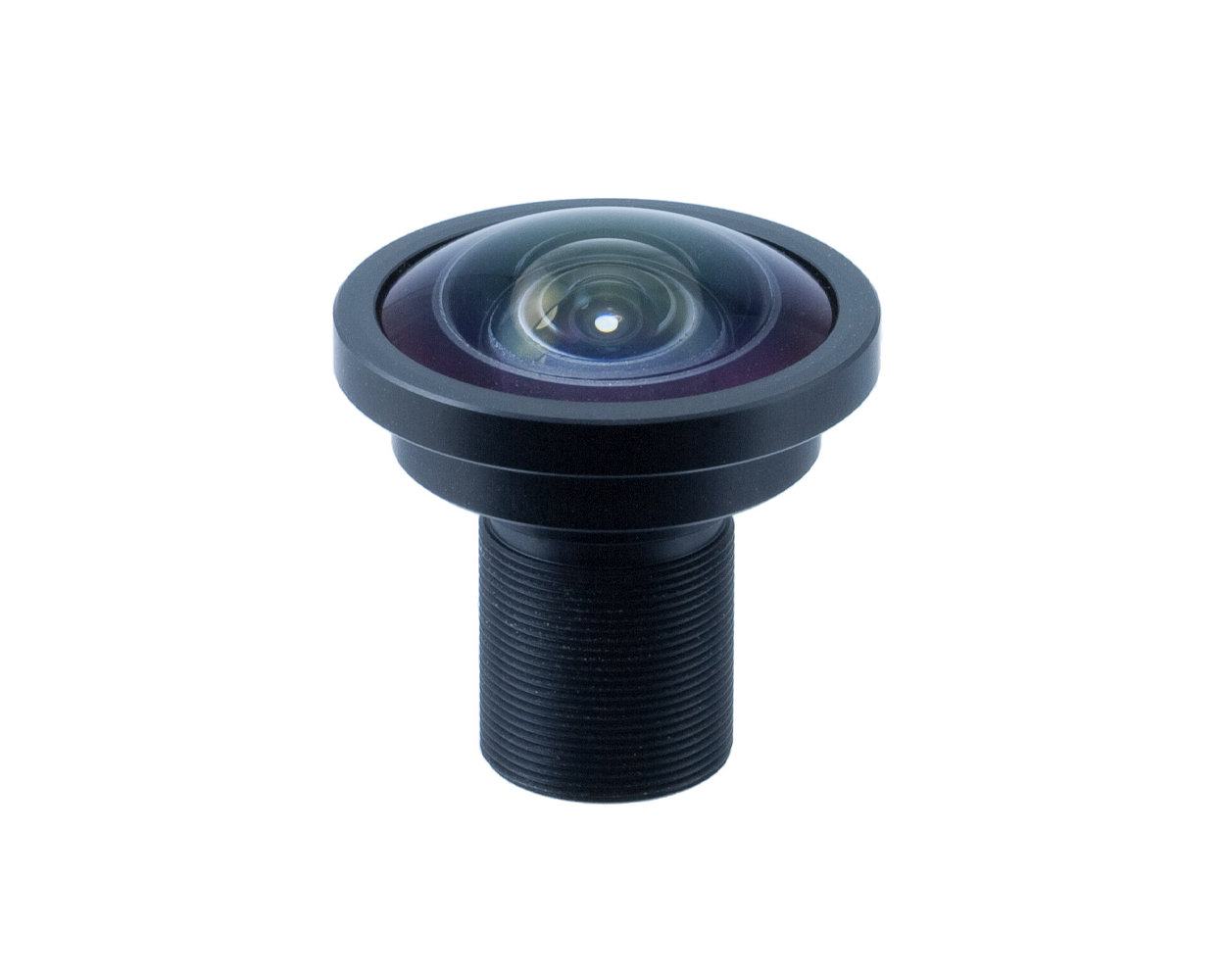

Computar - E2328KRY - 4K ,1/1.8" 2.3mm F2.8, Fisheye IR Corrected Board Lens (S-mount)
Part number:
E2328KRY
Price:
2.3mm f2.8 12MP+ M12 S Mount, 180 Panorama Fisheye, Day/Night IR.
Features:
- 1/1.8" Format for IMX334
- 2.3mm Fixed Lens
- 4K Fisheye (over 8 MP)
- True Day/Night
- IR Corrected
- M12 (S Mount)
- F2.8
| Model No. | E2328KRY | Effective Lens Aperture | Front | φ 20.0mm | |||
| Focal Length | 2.3mm | Rear | φ 6.8mm | ||||
| Max. Aperture Ratio | 1 : 2.8 | Back Focal Length | 4.2mm | ||||
| Image Size at 190° | φ7.7mm | Flange Back Length | ‐ | ||||
| Mount | M12 P=0.5mm | Dimensions | φ21.4mm x 26.3mm | ||||
| Weight | 13.2g | ||||||
| Angle of View | D | 1/1.8 type Fisheye | ‐ | 1/2 type | ‐ | 1/3 type | 149.2゜ |
| H | 190.0゜ | 159.0゜ | 119.5゜ | ||||
| V | 108.6゜ | 119.5゜ | 89.6゜ | ||||
| Operating Temperature | ‐20℃‐ +60℃ | ||||||
Name
Description
Size
Downloads
File
Specification
0.2mb
File
Computar M12 Fisheye series 08.01.22 V1.0
1mb
