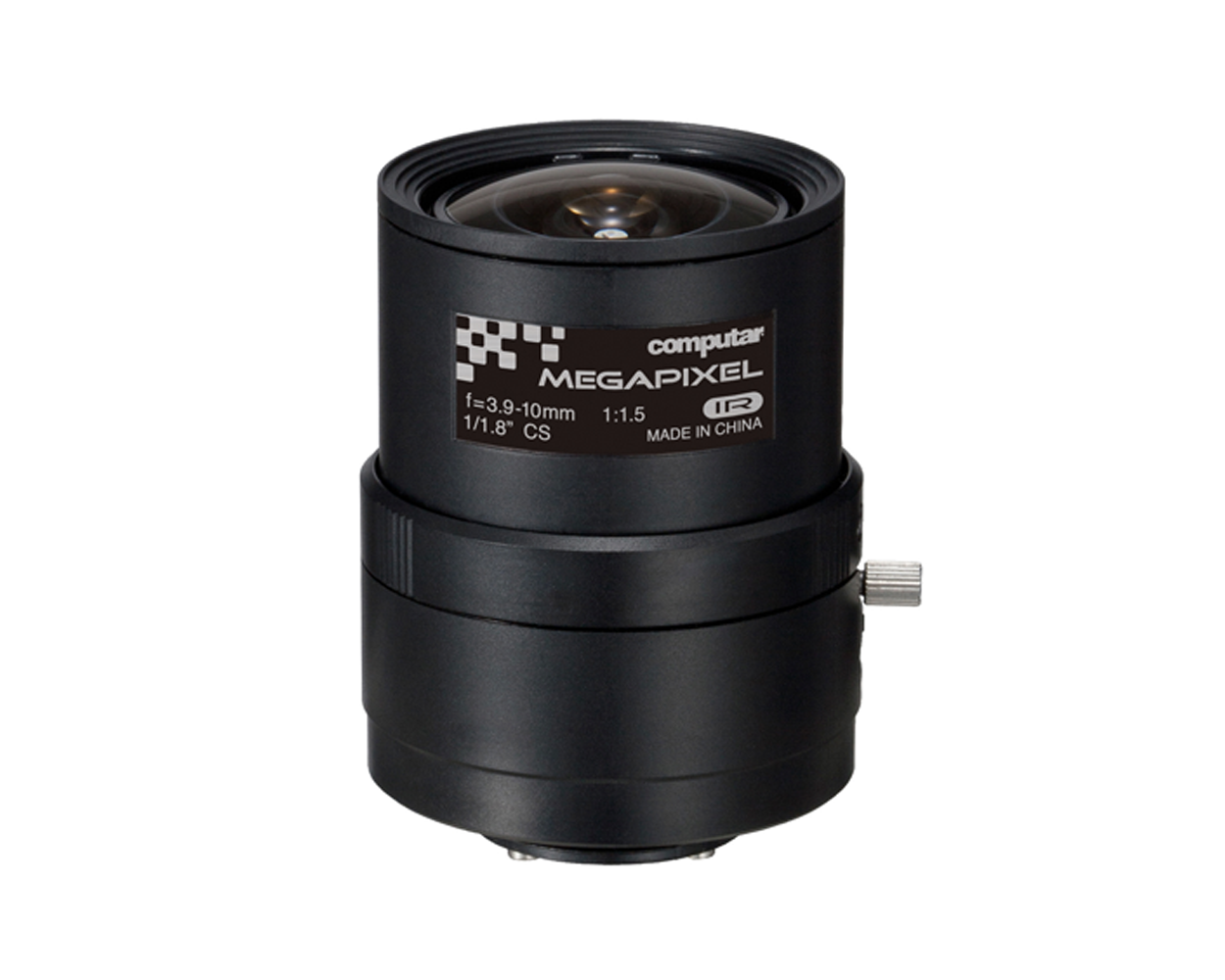

Computar - E3Z3915CS-MPWIR - 4K, 1/1.8" 3.9-10mm F1.5 Varifocal Lens, HD Series, Manual Iris, IR (CS-Mount)
Part number:
E3Z3915CS-MPWIR
Price:
4K, 1/1.8" 3.9-10mm F1.5 Varifocal Lens, HD Series, Manual Iris, IR (CS-Mount)
| Model No. | E3Z3915CS-MPWIR | Effective Lens Aperture | Front | φ25.0mm | |||
| Focal Length | 3.9mm ‐ 10mm | Rear | φ10.0mm | ||||
| Max. Aperture Ratio | 1:1.5 | Back Focal Length | Tele | 8.5mm | |||
| Max. Image Format | 7.1mm x 5.4mm(φ8.9mm） | Wide | 8.5mm | ||||
| Operation Range | Iris | F1.5 ‐ F16C | Flange Back Length | 12.5mm | |||
| Focus | 0.8m ‐ lnf. | Mount | CS‐Mount | ||||
| Zoom | 3.9mm ‐ 10mm | Filter Size | - | ||||
| Control | Iris | Manual | Dimensions | φ40 mm× 49 mm× 59 mm | |||
| Focus | Manual | Weight | 69g | ||||
| Zoom | Manual | ||||||
| Angle of View | D | 1/1.8 type | 144.1°‐ 52.9° | 1/2 type | 124.8°‐ 47.5° | 1/3 type | 89.3°- 35.5° |
| H | 108.1°‐ 42.1° | 96.0°‐ 37.9° | 70.2°- 28.4° | ||||
| V | 79.7°‐ 32.0° | 70.2°‐ 28.4° | 52.1°- 21.3° | ||||
| Operating Temperature | -20℃ ‐ +60℃ | ||||||
Name
Description
Size
Downloads
File
Datasheet
0.1mb
