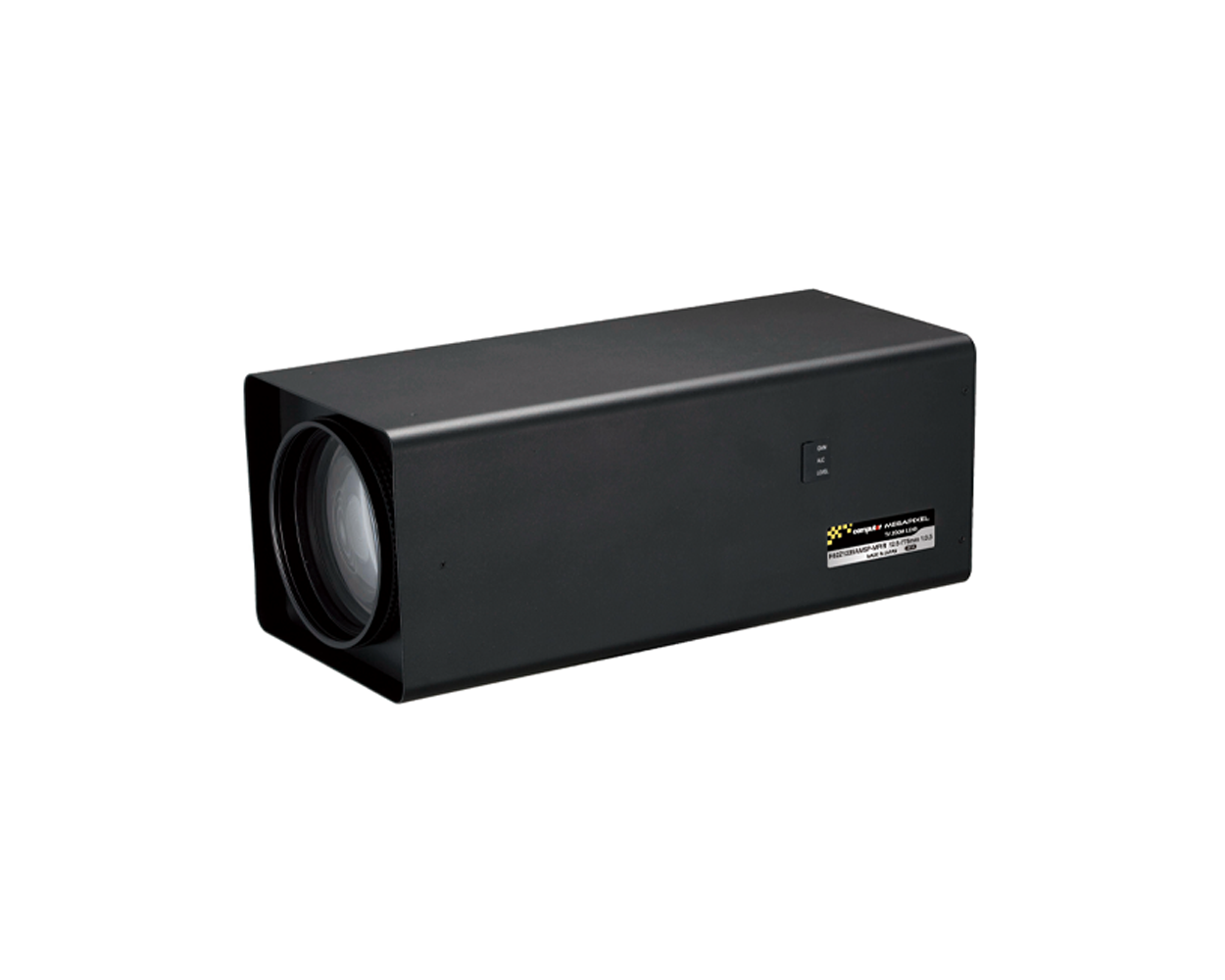

Computar - E66Z1635PDC-MP - 2MP, 1/1.8" 16.7-1100mm 66X DC Auto Iris Motorized Zoom Lens w/Preset (C-Mount)
Part number:
E66Z1635PDC-MP
Price:
16.7-1100mm, f3.5, 2MP, 66x, DC A/I, with preset.
Features:
- 2 Megapixel
- 66X Motorized Zoom Lens
- 16.7-1100mm lens
- F3.5
- DC Auto Iris
- Preset
| Model No. | E66Z1635PDC-MP | Effective Lens Aperture | Front | φ101.5mm | ||||
| Focal Length | 16.7mm ‐ 1100mm | Rear | φ14.8mm | |||||
| Max. Aperture Ratio | 1:3.5 | Back Focal Length | 30.52mm | 1/1.8 type | ||||
| Max. Image Format | 7.2mm x 5.4mm(φ9mm） | Flange Back Length | 17.526mm | |||||
| Operation Range | Iris | F3.5 ‐ Close | Mount | C‐Mount | ||||
| Focus | 5.0m ‐ lnf. | Filter Size | M109 P=1.0mm | |||||
| Zoom | 16.7mm ‐ 1100mm | Tripod Screw | 1/4 -20UNC X 2 | |||||
| Control | Iris | DC Auto Iris | Dimensions | W150mm x H135mm x D367.5mm | ||||
| Focus | Motorized | Weight | 5300g | |||||
| Zoom | Motorized | |||||||
Object Dimension at M.O.D. | 16.7mm | 181.6cm X 136.3cm | ||||||
| 1100mm | 2.85cm X 2.14cm | |||||||
| Angle of View | D | 1/1.8 type | 29.20°‐ 0.46° | 1/3 type
| 19.90°‐ 0.32° | 1/4 type
| 14.92°‐ 0.24° | |
| H | 21.23°‐ 0.34° | 15.91°‐ 0.25° | 11.93°‐ 0.19° | |||||
| V | 15.91°‐ 0.25° | 11.93°‐ 0.19° | 8.95°‐ 0.14° | C | ||||
| Iris | Focus | Zoom | ||||||
| Supply Voltage | - | DC6-12V | DC6-12V | |||||
| Current | - | 60mA or less | 60mA or less | |||||
| Response Time | - | Approx. 7.5 sec. (when 10V input) | Approx. 8.5 sec. (when 10V input) | |||||
| Preset Potentiometer | - | 10KΩVR | 10KΩVR | |||||
| Coil | Drive | 190Ω | ||||||
| Control | 1000Ω | |||||||
| Operating Temperature | -10℃ ‐ +50℃ | |||||||
