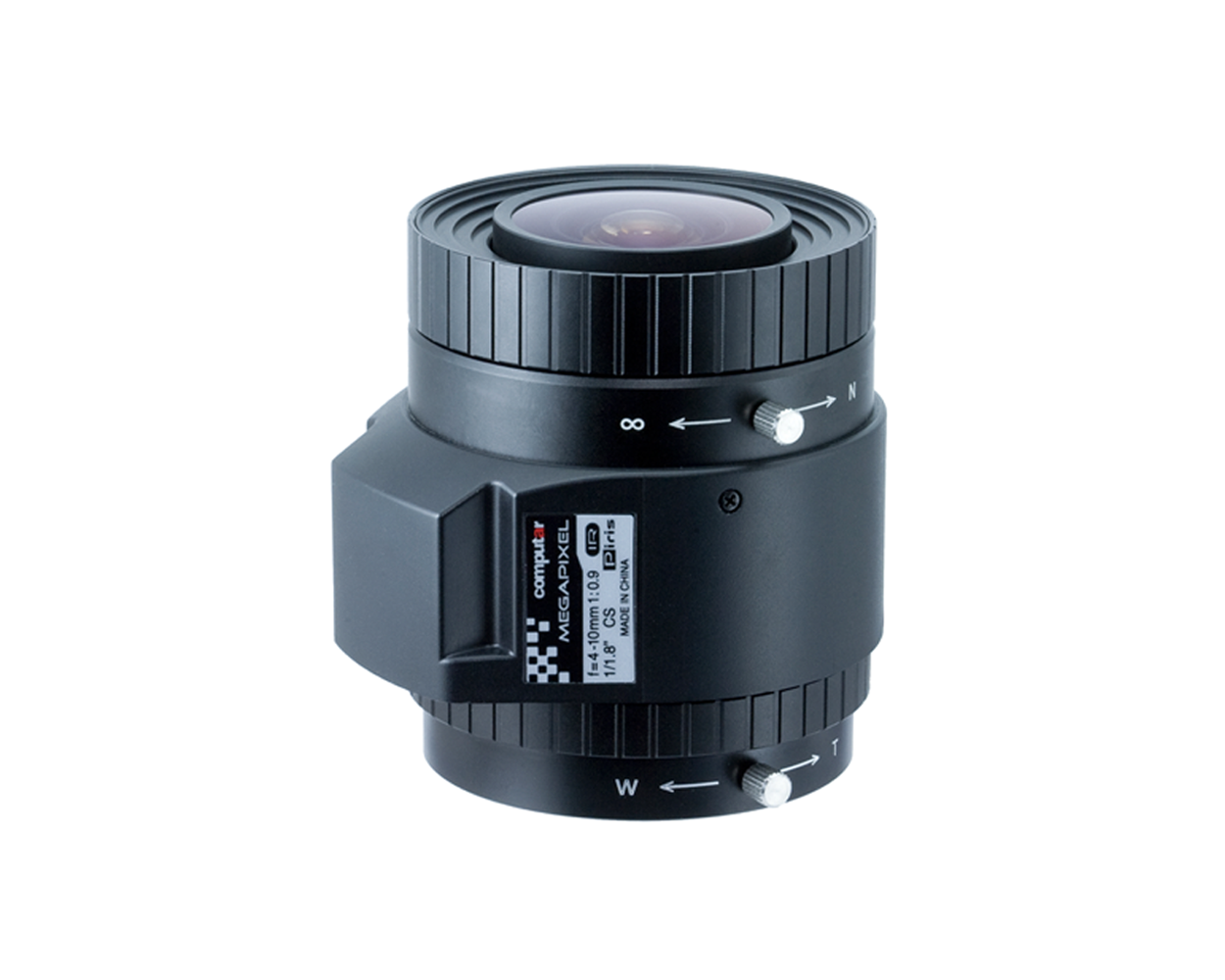

Computar - EG3Z0409KCS-MPWIR - 4K, 1/1.8" 4.0-10mm F0.9 IR Varifocal Lens with P-iris (CS-Mount)
Part number:
EG3Z0409KCS-MPWIR
Price:
1/1.8" 4-10mm, f0.9, P iris, 4K, CS-mount. To protect cameras from damage, P-iris connector plugs are designed NOT TO fit regular cameras.
Features:
- 1/1.8” Format
- 4K
- 4.0-10mm
- F1.6
- HOV 120.1o-46.3o
- P-Iris
- Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
| Optical Specifications | |||||||
| Model No. | EG3Z0409KCS-MPWIR | Min. Objective Distance | 100cm from front of lens | ||||
| Focal Length | 4mm ‐ 10mm | Effective Lens Aperture | Front:φ33.9mmRear:φ10.7mm | ||||
| F-Number | Wide | F0.9 ‐ F16C | Back Focal Length | Wide | 8.01mm | ||
| Tele | F1.6 ‐ F16C | Tele | 8.01mm | ||||
| Max. Image Circle | φ8.9mm | Flange Back Length | 12.5mm | ||||
| Angle of View | Diagonal | 1/1.8 type (16:9) | 147.8°～ 53.3° | 1/1.8 type (4:3) | 147.8°～ 53.3° | ||
| Horizontal | 120.1°～ 46.3° | 107.6°～ 42.4° | |||||
| Vertical | 62.1°～ 25.9° | 77.2°～ 31.7° | |||||
| Mechanical & Electrical Specifications | |||||||
| Control | Iris | Stepping Motor | Dimensions | As per the attached drawing |
| Focus | Manual | Mount | CS mount | |
| Zoom | Manual | Weight | TBD | |
| Tripod Screw | 1/4 -20UNC | Operating Temperature | -20℃ - +60℃ (TBD) |
